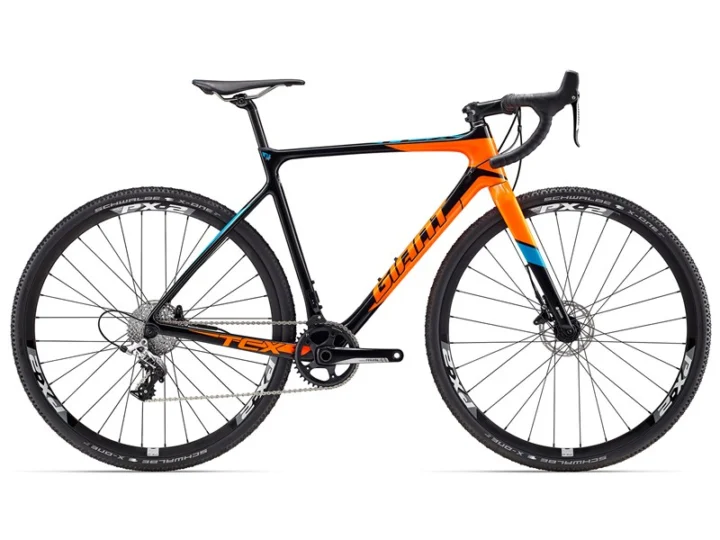

2016 Giant TCX Advanced Pro 2

Original specifications: geometry for 5 published sizes.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #900002534
Model year
2016
Category
Gravel & Cyclocross
Sizes
S, M, M/L, L, XL
Colors
Composite/Silver/Red
Geometry
5 manufacturer sizes
In this record
21 specifications · 2 archived images · geometry
Model history 4 other years

Browse other years

Compare side by side

Identification clues

2016 archived details

Published colors
Composite/Silver/Red
Frame
Carbon Fiber

Clues, not proof of model year. Colors vary and components may have been replaced.

Sponsored affiliate link
Original buildCarbon Fiber

Manufacturer catalog

Published sizes and colors

5 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

SMM/LLXL

Published colors

Composite/Silver/Red

Frameset

Frame ConstructionAdvanced-grade composite
Frame MaterialCarbon Fiber
ForkAdvanced-grade composite, Full-composite OverDrive 2 steerer, 15mm thru-axle
Fork MaterialCarbon Fiber

Drivetrain

ShiftersShimano RS505
Front DerailleurShimano 105
Rear DerailleurShimano 105
CranksetFSA Gossamer Cross, 36/46
Bottom BracketPress Fit
CassetteShimano 105 11x28, 11-speed
ChainKMC X11SL

Brakes

BrakesShimano RS785, Hydraulic disc, 140mm

Cockpit & Contact Points

HandlebarGiant Contact, 31.8mm
StemGiant Contact, OverDrive 2
SaddleGiant Performance Road
SeatpostGiant D-Fuse SL, Composite

Wheels & Tires

HubsGiant Performance Tracker Disc, 32h, [F] 15mm axle, [R] 142x12 axle
RimsGiant PX-2 Disc
SpokesSapim Race, 14/15g
Front TireMaxxis Mud Wrestler, 700x33, Folding
Rear TireMaxxis Mud Wrestler, 700x33, Folding

Geometry

5 sizes · 9 measurements

Frame measurements by size.

All geometry measurements5 sizes · 9 measurements
MeasurementS/50M/52.5ML/54.5L/55.5XL/56.5
Top tube530 mm545 mm560 mm575 mm590 mm
Head tube130 mm145 mm160 mm175 mm190 mm
Head-tube angle71°71.5°72°72.5°72.5°
Seat-tube angle73.5°73°73°73°73°
Chainstay / rear center430 mm430 mm430 mm430 mm430 mm
Wheelbase1014 mm1019 mm1030 mm1040 mm1055 mm
Reach370 mm375 mm385 mm395 mm406 mm
Stack540 mm556 mm572 mm589 mm603 mm
Standover height756.92 mm802.64 mm820.42 mm833.12 mm843.28 mm

Dimensions as recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes46/36T · 11–28T · 11-speed
Lowest1.29:1 Highest4.18:1 Total range325%
Estimated speed At 90 RPM Lowest gear9.3 mph Highest gear30.3 mph

Rear tire: 700C×33.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Front tire · Original
Maxxis Mud Wrestler

700x33, Folding

Retailer offers
Chain · Original
KMC X11SL
Cassette · Original
Shimano 105 11x28

11-speed

More parts (4)Fewer parts
Crankset · Original
FSA Gossamer Cross

36/46

Front derailleur · Original
Shimano 105 Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Rear derailleur · Original
Shimano 105 Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Shifters · Original
Shimano RS505

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Maxxis Mud Wrestler, 700x33, Folding
Rear tire
Maxxis Mud Wrestler, 700x33, Folding
Drivetrain
11-speed
Bottom bracket / shell
Press Fit
Equipment inspection checks 13 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 13 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: Advanced-grade composite · Fork: Advanced-grade composite, Full-composite OverDrive 2 steerer, 15mm thru-axle · Carbon Fiber

Archived: Fork: Advanced-grade composite, Full-composite OverDrive 2 steerer, 15mm thru-axle · Rear shock: N / A

Archived: Shifters: Shimano RS505 · Front derailleur: Shimano 105 · Rear derailleur: Shimano 105 · Crankset: FSA Gossamer Cross, 36/46 · Bottom bracket: Press Fit · Cassette: Shimano 105 11x28, 11-speed · Chain: KMC X11SL

Archived: Brakes: Shimano RS785, Hydraulic disc, 140mm

Archived: Rims: Giant PX-2 Disc · Hubs: Giant Performance Tracker Disc, 32h, [F] 15mm axle, [R] 142x12 axle · Front tire: Maxxis Mud Wrestler, 700x33, Folding · Rear tire: Maxxis Mud Wrestler, 700x33, Folding

Controls and contact points

Archived: Handlebar: Giant Contact, 31.8mm · Stem: Giant Contact, OverDrive 2 · Seatpost: Giant D-Fuse SL, Composite · Saddle: Giant Performance Road
