Velopedia Bicycle Archive

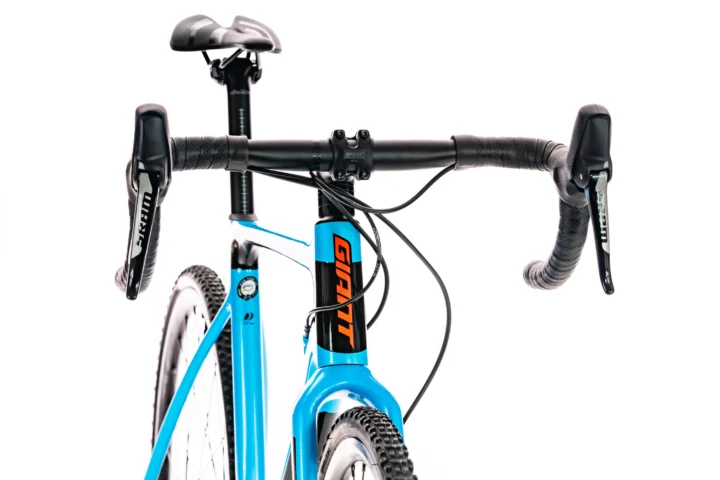

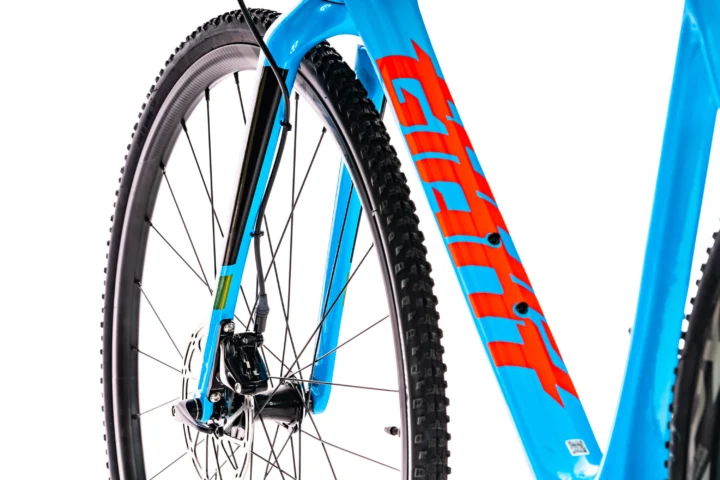

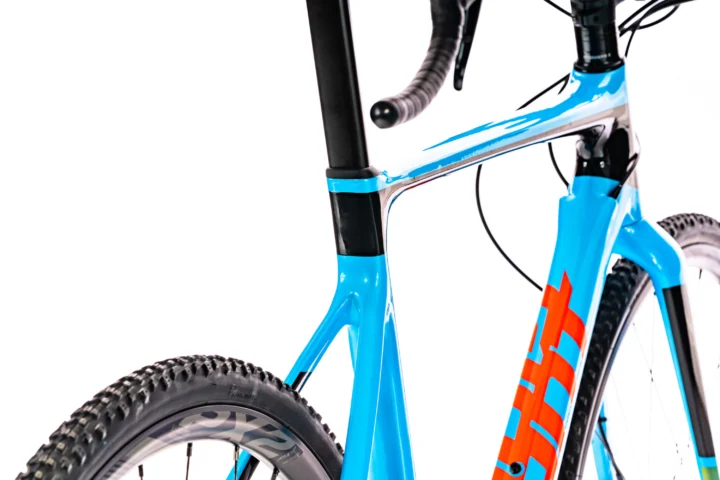

2020 Giant TCX Advanced Pro 2
Original specifications: geometry for 5 published sizes.
Planning to sell? Draft your listing
At a glance
Archive #900002389- Model year
- 2020
- Category
- Gravel & Cyclocross
- Original MSRP
- $3,100.00
- Sizes
- S, M, ML, L, XL
- Colors
- Olympic Blue
- Geometry
- 5 manufacturer sizes
- In this record
- 20 specifications · 6 archived images · original MSRP · geometry

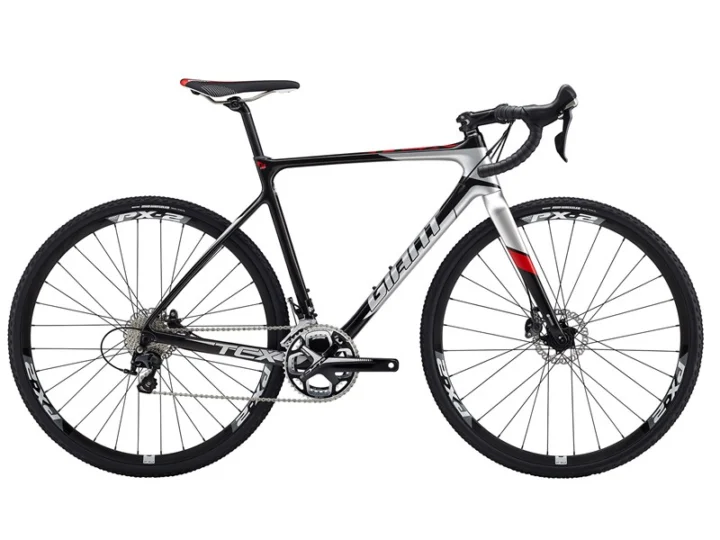

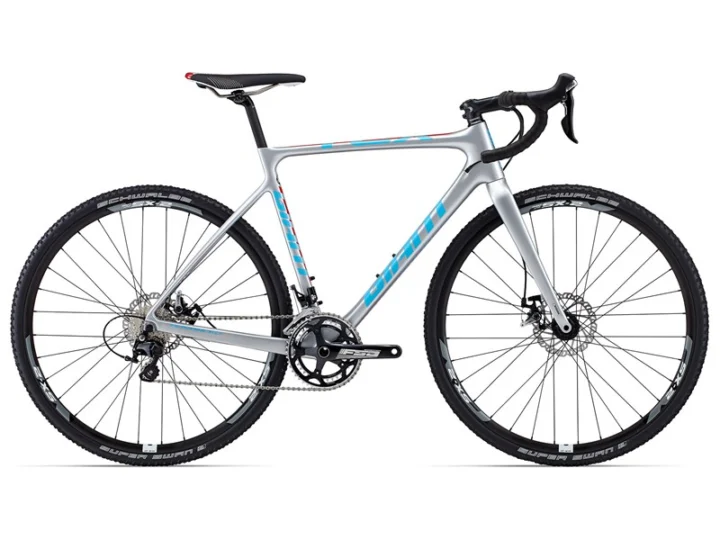

Model history 4 other years
Browse other years
Compare side by side
Identification clues
2020 archived details
- Published colors
- Olympic Blue
- Frame
- Carbon Fiber
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildCarbon Fiber
Frameset
| Frame Construction | Advanced-Grade Composite, 12mm thru-axle, disc |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | Advanced-Grade Composite, full-composite OverDrive 2 steerer, disc |
| Fork Material | Carbon Fiber |

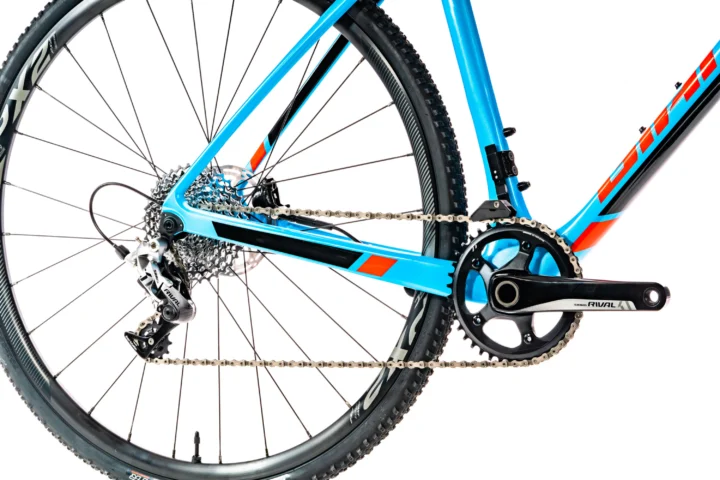

Drivetrain
| Shifters | SRAM Rival 1 |
|---|---|
| Rear Derailleur | SRAM Rival 1 |
| Crankset | SRAM Rival 11x, 40t |
| Bottom Bracket | SRAM GXP, press fit |
| Cassette | SRAM PG1130, 11x36 |
| Chain | SRAM PC1170 |
Brakes
| Brakes | SRAM Rival 1 hydraulic |
|---|

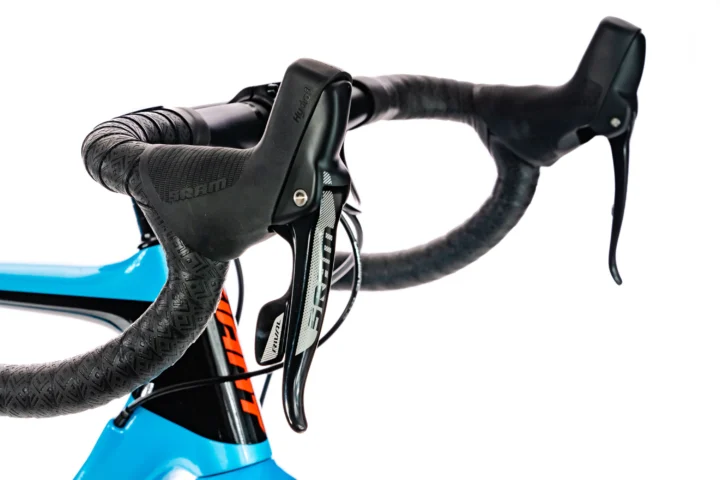

Cockpit & Contact Points
| Handlebar | Giant Contact |
|---|---|
| Stem | Giant Contact |
| Saddle | Giant Contact (neutral) |
| Seatpost | Giant D-Fuse SL, composite |
Wheels & Tires
| Hubs | Giant P-X2 Disc wheelset |
|---|---|
| Rims | Giant P-X2 Disc wheelset |
| Spokes | Giant P-X2 Disc wheelset |
| Front Tire | Maxxis All-Terrene, 700x33, tubeless |
| Rear Tire | Maxxis All-Terrene, 700x33, tubeless |
No specifications match. Try a component name or clear your search.
Geometry
Frame measurements by size.
Frame diagram
Select an available measurement to locate it on the frame.
All geometry measurements5 sizes · 17 measurements
| Measurement | S | M | ML | L | XL |
|---|---|---|---|---|---|
| Seat tube | 500 mm | 525 mm | 545 mm | 555 mm | 565 mm |
| Top tube | 530 mm | 545 mm | 560 mm | 575 mm | 590 mm |
| Head tube | 130 mm | 145 mm | 160 mm | 175 mm | 190 mm |
| Head-tube angle | 71° | 71.5° | 72° | 72.5° | 72.5° |
| Seat-tube angle | 73.5° | 73° | 73° | 73° | 73° |
| Chainstay / rear center | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1014 mm | 1019 mm | 1030 mm | 1040 mm | 1055 mm |
| Bottom-bracket drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Reach | 370 mm | 375 mm | 385 mm | 395 mm | 406 mm |
| Stack | 540 mm | 556 mm | 572 mm | 589 mm | 603 mm |
| Standover height | 783 mm | 803 mm | 821 mm | 832 mm | 843 mm |
| Fork offset / rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 68 mm | 65 mm | 62 mm | 59 mm | 59 mm |
| Crank length | 170 mm | 172.5 mm | 172.5 mm | 175 mm | 175 mm |
| Stem length | 90 mm | 110 mm | 110 mm | 110 mm | 120 mm |
| Handlebar width | 400 mm | 420 mm | 420 mm | 440 mm | 440 mm |
| Wheel size | 700C | 700C | 700C | 700C | 700C |
Dimensions as recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
700x33, tubeless

Challenge Gravel Grinder TLR Tubeless Tire Black, 700x33
700x33c
Replacement option

SRAM Rival Wide 1x 12-Speed Crankset Black, 172.5mm, 40T
172.5mm, 40T · Frame sizes M / ML
Model match
More parts (4)Fewer parts
press fit
Based on the original build. Check fit and installed parts before ordering.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- Maxxis All-Terrene, 700x33, tubeless
- Rear tire
- Maxxis All-Terrene, 700x33, tubeless
- Bottom bracket / shell
- SRAM GXP, press fit
Equipment inspection checks 11 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: Advanced-Grade Composite, 12mm thru-axle, disc · Fork: Advanced-Grade Composite, full-composite OverDrive 2 steerer, disc · Carbon Fiber
Drivetrain
Check drivetrain wear →Archived: Shifters: SRAM Rival 1 · Rear derailleur: SRAM Rival 1 · Crankset: SRAM Rival 11x, 40t · Bottom bracket: SRAM GXP, press fit · Cassette: SRAM PG1130, 11x36 · Chain: SRAM PC1170
Brakes
Inspect the brakes →Archived: Brakes: SRAM Rival 1 hydraulic
Wheels and tires
Check wheels and tires →Archived: Rims: Giant P-X2 Disc wheelset · Hubs: Giant P-X2 Disc wheelset · Front tire: Maxxis All-Terrene, 700x33, tubeless · Rear tire: Maxxis All-Terrene, 700x33, tubeless
Controls and contact points
Archived: Handlebar: Giant Contact · Stem: Giant Contact · Seatpost: Giant D-Fuse SL, composite · Saddle: Giant Contact (neutral)
Have you owned this model?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Gallery6 images
No recent price sample is available for this bike. Check eBay for matching listings.
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
