Lowest0.82:1
Highest3.43:1
Total range416%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Rear tire: 700C×38.
Velopedia Bicycle Archive

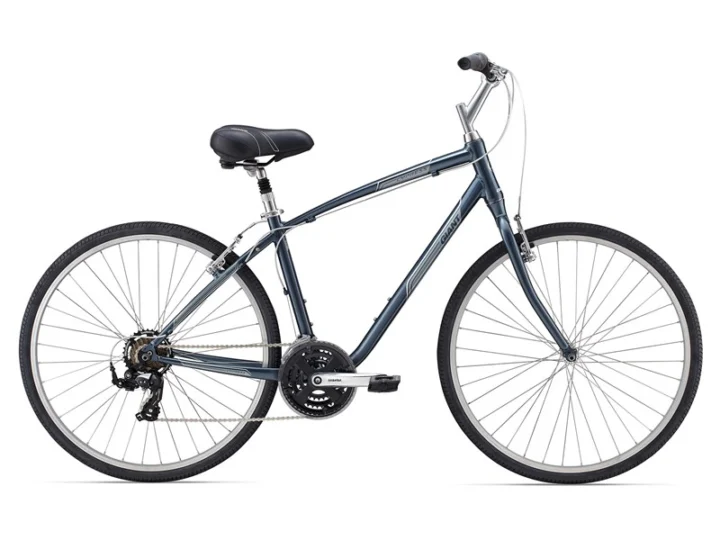

2015 Giant Cypress
Original specifications: Shimano Tourney · 7-speed rear derailleur · 700c wheels · geometry for 4 published sizes.
Planning to sell? Draft your listing
At a glance
Archive #1610199- Model year
- 2015
- Category
- City & Commuter
- Original MSRP
- $410.00
- Sizes
- S, M, L
- Colors
- Dark Silver
- Geometry
- 4 manufacturer sizes
- In this record
- 25 specifications · archived image · original MSRP · geometry
Model history 21 other years
Browse other years
Compare side by side
Identification clues
2015 archived details
- Published colors
- Dark Silver
- Frame
- Aluminum
- Original equipment
- Hybrid mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildAluminum · Hybrid mix · 700c
Frameset
| Frame Construction | ALUXX-grade aluminum |
|---|---|
| Frame Material | Aluminum |
| Fork | Chromoly |
| Fork Material | Steel |
Drivetrain
| Component Group | Hybrid mix |
|---|---|
| Shifters | SRAM MRX Index, Grip Twist |
| Front Derailleur | Shimano M191 |
| Rear Derailleur | Shimano Tourney, MegaRange |
| Crankset | SR Suntour XCC, 28/38/48 |
| Bottom Bracket | Sealed |
| Cassette | Shimano TZ31 14x34, 7-speed freewheel |
| Rear Cogs | Shimano TZ31 14x34, 7-speed freewheel |
| Chain | KMC Z51 |
| Pedals | Platform |
Brakes
| Brakes | Alloy, linear pull |
|---|
Cockpit & Contact Points
| Handlebar | Steel, High rise, 25.4mm |
|---|---|
| Stem | Alloy adjustable |
| Saddle | Giant Comfort |
| Seatpost | Alloy Suspension, 30.9mm |
Wheels & Tires
| Hubs | Alloy, 36h |
|---|---|
| Rims | Giant Alloy |
| Spokes | Stainless Steel,14g |
| Front Tire | Kenda, Multi-surface, 700x38 |
| Rear Tire | Kenda, Multi-surface, 700x38 |
| Wheel Size | 700c |
No specifications match. Try a component name or clear your search.
Geometry
Frame measurements by size.
Reference drawing
Size
Measurement
Measurement
—
Select an available measurement to locate it on the frame.
All geometry measurements4 sizes · 7 measurements
| Measurement | S/16 | M/18 | L/20 | XL/22 |
|---|---|---|---|---|
| Top tube | 568.96 mm | 584.2 mm | 599.44 mm | 614.68 mm |
| Head tube | 149.86 mm | 165.1 mm | 185.42 mm | 200.66 mm |
| Head-tube angle | 69.5° | 69.5° | 69.5° | 69.5° |
| Seat-tube angle | 73.5° | 73.5° | 73.5° | 73.5° |
| Chainstay / rear center | 454.66 mm | 454.66 mm | 454.66 mm | 454.66 mm |
| Wheelbase | 1089.66 mm | 1104.9 mm | 1120.14 mm | 1137.92 mm |
| Standover height | 744.22 mm | 782.32 mm | 807.72 mm | 833.12 mm |
Dimensions as recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
