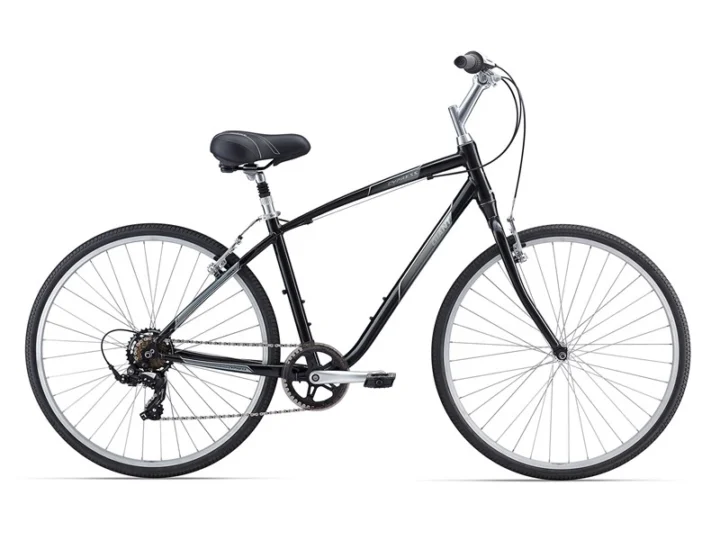

2016 Giant Cypress

Original specifications: geometry for 5 published sizes.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #900002032
Model year
2016
Category
City & Commuter
Sizes
XS, S, M, L, XL
Colors
Black/Silver
Geometry
5 manufacturer sizes
In this record
21 specifications · archived image · geometry
Model history 21 other years

Browse other years

Compare side by side

Identification clues

2016 archived details

Published colors
Black/Silver
Frame
Aluminum

Clues, not proof of model year. Colors vary and components may have been replaced.

Campaign
Original buildAluminum

Manufacturer catalog

Published sizes and colors

5 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

XSSMLXL

Published colors

Black/Silver

Frameset

Frame ConstructionALUXX-grade aluminum
Frame MaterialAluminum
ForkChromoly
Fork MaterialSteel

Drivetrain

ShiftersShimano Revo, Twist
Rear DerailleurShimano Tourney
CranksetProWheel, 42T
Bottom BracketThreaded, Sealed
CassetteShimano Tourney 14x34, 7-speed freewheel
ChainKMC Z51
PedalsNylon, Anti-slip platform

Brakes

BrakesAlloy, Linear pull

Cockpit & Contact Points

HandlebarAlloy, High Rise
StemAlloy adjustable
SaddleGiant Comfort
SeatpostAlloy suspension, 30.9mm

Wheels & Tires

HubsAlloy, 36h
RimsGiant Alloy
SpokesStainless Steel, 14g
Front TireKenda, 700x38, Multi-Surface
Rear TireKenda, 700x38, Multi-Surface

Geometry

5 sizes · 7 measurements

Frame measurements by size.

All geometry measurements5 sizes · 7 measurements
MeasurementXS/14S/16M/18L/20XL/22
Top tube551.18 mm568.96 mm584.2 mm599.44 mm614.68 mm
Head tube149.86 mm149.86 mm165.1 mm185.42 mm200.66 mm
Head-tube angle69.5°69.5°69.5°69.5°69.5°
Seat-tube angle74°73.5°73.5°73.5°73.5°
Chainstay / rear center454.66 mm454.66 mm454.66 mm454.66 mm454.66 mm
Wheelbase1074.42 mm1089.66 mm1104.9 mm1120.14 mm1137.92 mm
Standover height726.44 mm744.22 mm782.32 mm807.72 mm833.12 mm

Dimensions as recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes42T · 14–34T · 7-speed
Lowest1.24:1 Highest3.00:1 Total range243%
Estimated speed At 90 RPM Lowest gear9.1 mph Highest gear22.1 mph

Rear tire: 700C×38.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications
Front tire · Original
Kenda

700x38, Multi-Surface

Retailer offers
Seatpost · Original
Alloy suspension

30.9mm

Retailer offers
Chain · Original
KMC Z51
More parts (3)Fewer parts
Cassette · Original
Shimano Tourney 14x34

7-speed freewheel

Brake pads · Original
Alloy

Linear pull

Rear derailleur · Original
Shimano Tourney

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Kenda, 700x38, Multi-Surface
Rear tire
Kenda, 700x38, Multi-Surface
Drivetrain
7-speed
Seatpost diameter
30.9 mm
Bottom bracket / shell
Threaded, Sealed
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
0 of 10 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: ALUXX-grade aluminum · Fork: Chromoly · Steel

Archived: Shifters: Shimano Revo, Twist · Rear derailleur: Shimano Tourney · Crankset: ProWheel, 42T · Bottom bracket: Threaded, Sealed · Cassette: Shimano Tourney 14x34, 7-speed freewheel · Chain: KMC Z51

Archived: Brakes: Alloy, Linear pull

Archived: Rims: Giant Alloy · Hubs: Alloy, 36h · Front tire: Kenda, 700x38, Multi-Surface · Rear tire: Kenda, 700x38, Multi-Surface

Controls and contact points

Archived: Handlebar: Alloy, High Rise · Stem: Alloy adjustable · Seatpost: Alloy suspension, 30.9mm · Saddle: Giant Comfort · Pedals: Nylon, Anti-slip platform
