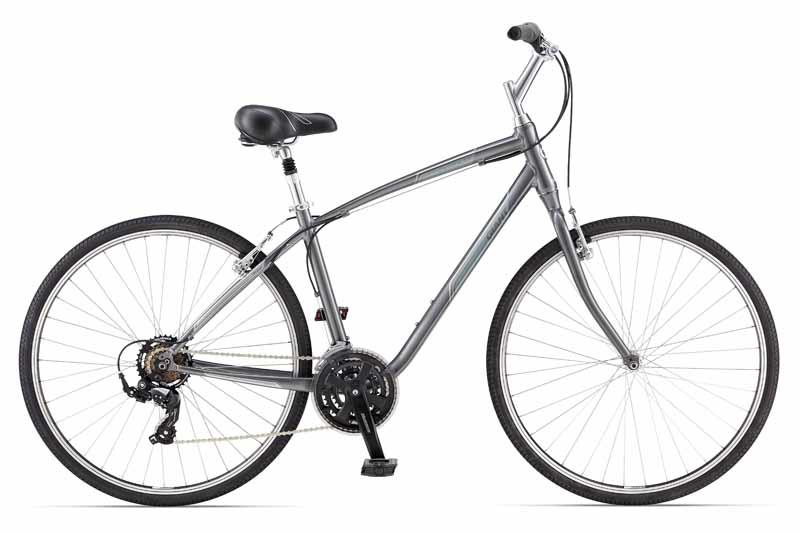

2014 Giant Cypress

Original specifications.

Share owner experience

At a glance

Archive #9255492

Model year: 2014
Category: City & Commuter
Original MSRP: $400.00
Sizes: S, M, L
Colors: Charcoal/Silver
In this record: 16 specifications · archived image · original MSRP

Model history 21 other years

Browse other years

Compare side by side

Identification clues

2014 archived details

Published colors: Charcoal/Silver
Frame: ALUXX Aluminum

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildALUXX Aluminum

Manufacturer catalog

Published sizes and colors

3 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

SML

Published colors

Charcoal/Silver

Frameset

Frame Material	ALUXX Aluminum
Fork	Chromoly

Drivetrain

Shifters	SRAM MRX
Front Derailleur	Shimano FD-M191
Rear Derailleur	Shimano Tourney
Crankset	SR Suntour XCC 48/38/28t
Bottom Bracket	Shimano sealed
Cassette	Shimano TZ31 14x34t
Chain	KMC Z51
Pedals	Platform

Brakes

Brakes	Linear Pull

Cockpit & Contact Points

Handlebar	Steel Riser
Stem	Quill 40 degree rise
Saddle	Giant Comfort
Seatpost	Alloy Suspension Post

Wheels & Tires

Front Tire	Kenda, multi-surface, 700x38

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

All published sizes48/38/28T · 14–34T

Lowest0.82:1 Highest3.43:1 Total range416%

Speed unavailable: wheel or tire size is missing or unclear.

Add your rear tire size to calculate speed

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Gears Drivetrain

Front teeth Smallest rear teeth Largest rear teeth

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Rear tire marking

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

Rim diameter (BSD, mm) Tire width (mm)

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Cadence (RPM) Speed units

Gear, dimension and cadence changes update results automatically.

Gearing comparison
Measure	Original	Your setup
Lowest ratio	—	—
Highest ratio	—	—
Total range	—	—
Lowest-gear speed	—	—
Highest-gear speed	—	—

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Front tire · Original

Kenda

multi-surface, 700x38

Search Amazon Search eBay

Retailer offers

Panaracer Gravelking SS+ Tire - Tubeless Black, 700x38

700x38c

Replacement option

Competitive Cyclist ↗$34.99

Chain · Original

KMC Z51

Search Amazon Search eBay

Brake pads · Original

Linear Pull

Search Amazon Search eBay

More parts (1)Fewer parts

Front derailleur · Original

Shimano FD-M191

Search Amazon Search eBay

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire: Kenda, multi-surface, 700x38
Bottom bracket / shell: Shimano sealed

Equipment inspection checks 8 checks based on 4 archived component groups Open equipment checksClose equipment checks

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Frame and fork

Inspect the frame and fork →

Archived: Frame: ALUXX Aluminum · Fork: Chromoly

Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.
Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

Drivetrain

Check drivetrain wear →

Archived: Shifters: SRAM MRX · Front derailleur: Shimano FD-M191 · Rear derailleur: Shimano Tourney · Crankset: SR Suntour XCC 48/38/28t · Bottom bracket: Shimano sealed · Cassette: Shimano TZ31 14x34t · Chain: KMC Z51

Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Brakes

Inspect the brakes →

Archived: Brakes: Linear Pull

Inspect pads, cables and housings, then examine both rim braking surfaces for concavity, cracking or heavy wear. Confirm each caliper returns and centers correctly.

Controls and contact points

Archived: Handlebar: Steel Riser · Stem: Quill 40 degree rise · Seatpost: Alloy Suspension Post · Saddle: Giant Comfort · Pedals: Platform

Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.
