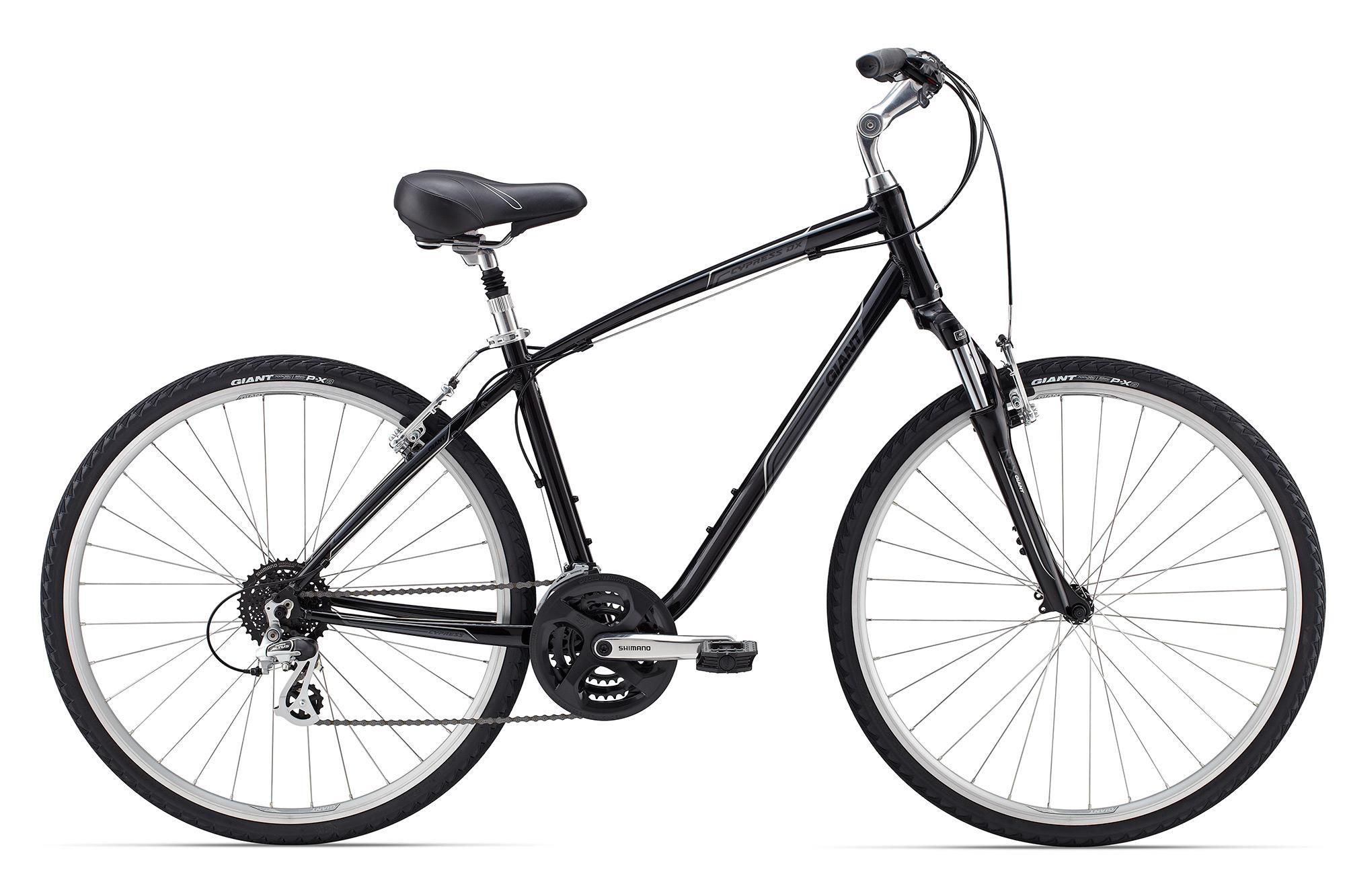

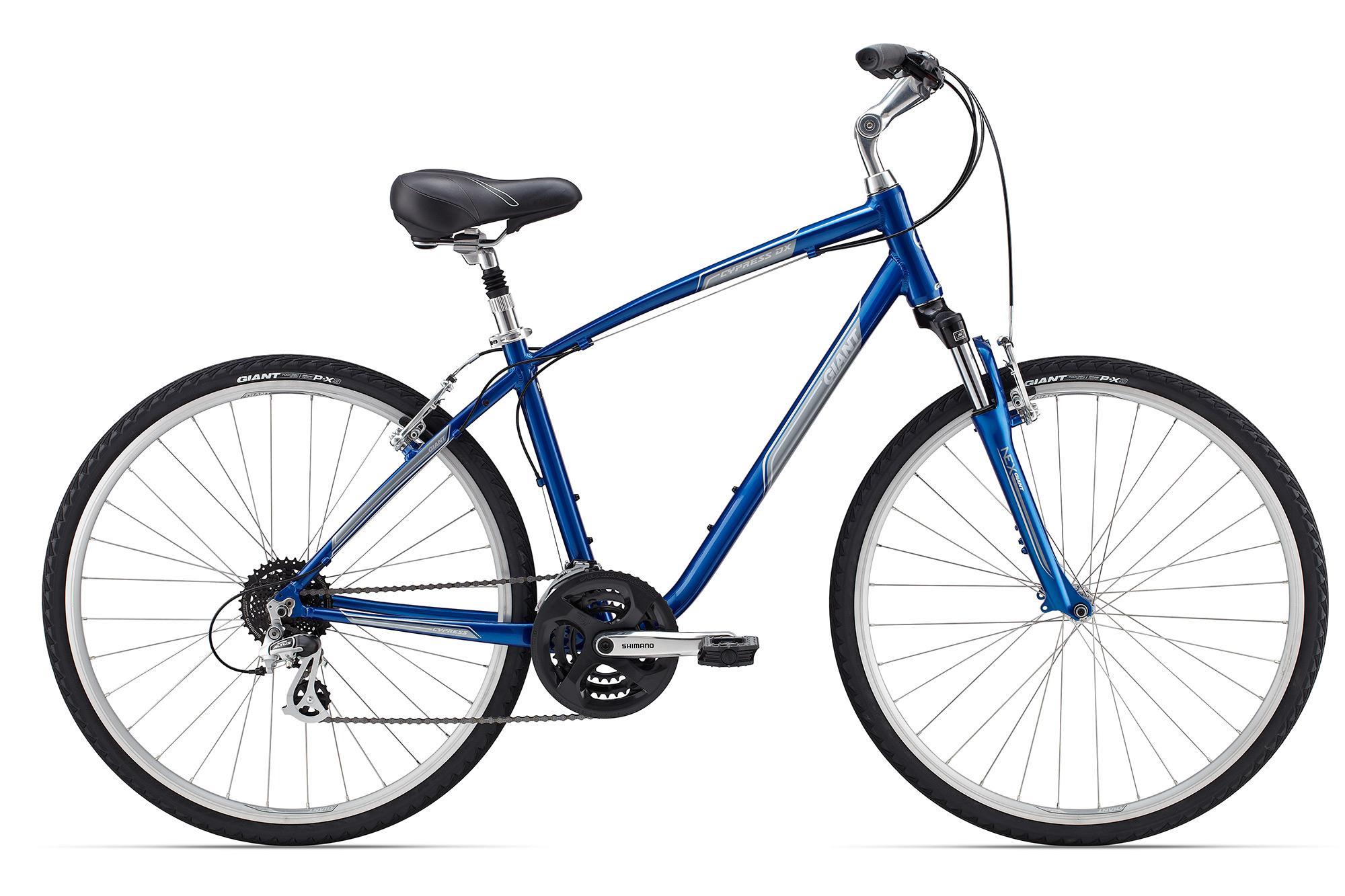

2015 Giant Cypress DX

Original specifications: Shimano Altus · 8-speed rear derailleur · 700c wheels · geometry for 5 published sizes.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #1281113
Model year
2015
Category
City & Commuter
Original MSRP
$500.00
Sizes
XS, S, M, L, XL
Colors
Navy Blue, Black
Geometry
5 manufacturer sizes
In this record
25 specifications · 4 archived images · original MSRP · geometry
Model history 19 other years

Browse other years

Compare side by side

Identification clues

2015 archived details

Published colors
Navy Blue, Black
Frame
Aluminum
Original equipment
Comfort mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Campaign
Original buildAluminum · Comfort mix · 700c

Manufacturer catalog

Published sizes and colors

5 sizes · 2 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

XSSMLXL

Published colors

Navy BlueBlack

Frameset

Frame ConstructionALUXX-grade aluminum
Frame MaterialAluminum
ForkSR Suntour NEX 4110, 63mm travel
Fork MaterialSuspension

Drivetrain

Component GroupComfort mix
ShiftersShimano EF51 Trigger shifter
Front DerailleurShimano M191
Rear DerailleurShimano Altus
CranksetShimano M131, 28/38/48
Bottom BracketShimano, Sealed
CassetteShimano HG31 11x34, 8-speed
Rear CogsShimano HG31 11x34, 8-speed
ChainKMC Z72
PedalsPlatform

Brakes

BrakesAlloy, linear pull

Cockpit & Contact Points

HandlebarAlloy, High rise, 25.4mm
StemAlloy adjustable
SaddleGiant Comfort Grove Plus
SeatpostAlloy Suspension, 30.9mm

Wheels & Tires

HubsFormula Alloy, 32h
RimsGiant Alloy, Double wall
SpokesStainless Steel,14g
Front TireGiant P-X3, Multi-surface, 700x38
Rear TireGiant P-X3, Multi-surface, 700x38
Wheel Size700c

Geometry

5 sizes · 7 measurements

Frame measurements by size.

All geometry measurements5 sizes · 7 measurements
MeasurementXS/14S/16M/18L/20XL/22
Top tube551.18 mm568.96 mm584.2 mm599.44 mm614.68 mm
Head tube149.86 mm149.86 mm165.1 mm185.42 mm200.66 mm
Head-tube angle69.5°69.5°69.5°69.5°69.5°
Seat-tube angle74°73.5°73.5°73.5°73.5°
Chainstay / rear center454.66 mm454.66 mm454.66 mm454.66 mm454.66 mm
Wheelbase1074.42 mm1089.66 mm1104.9 mm1120.14 mm1137.92 mm
Standover height726.44 mm744.22 mm782.32 mm807.72 mm833.12 mm

Dimensions as recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes48/38/28T · 11–34T · 8-speed
Lowest0.82:1 Highest4.36:1 Total range530%
Estimated speed At 90 RPM Lowest gear6.1 mph Highest gear32.1 mph

Rear tire: 700C×38.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications
Chain · Original
KMC Z72
Retailer offers
Seatpost · Original
Alloy Suspension

30.9mm

Retailer offers
Cassette · Original
Shimano HG31 11x34

8-speed

More parts (5)Fewer parts
Front tire · Original
Giant P-X3

Multi-surface, 700x38

Replacement search: 700cx38 bicycle tire Before ordering: Check rim type and tire clearance.
Brake pads · Original
Alloy

linear pull

Crankset · Original
Shimano M131

28/38/48

Rear derailleur · Original
Shimano Altus
Hubs · Original
Formula Alloy

32h

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Giant P-X3, Multi-surface, 700x38
Rear tire
Giant P-X3, Multi-surface, 700x38
Drivetrain
8-speed
Seatpost diameter
30.9 mm
Bottom bracket / shell
Shimano, Sealed
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 11 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: ALUXX-grade aluminum · Fork: SR Suntour NEX 4110, 63mm travel · Suspension

Archived: Fork: SR Suntour NEX 4110, 63mm travel

Archived: Group: Comfort mix · Shifters: Shimano EF51 Trigger shifter · Front derailleur: Shimano M191 · Rear derailleur: Shimano Altus · Crankset: Shimano M131, 28/38/48 · Bottom bracket: Shimano, Sealed · Cassette: Shimano HG31 11x34, 8-speed · Rear cogs: Shimano HG31 11x34, 8-speed · Chain: KMC Z72

Archived: Brakes: Alloy, linear pull

Archived: Wheel size: 700c · Rims: Giant Alloy, Double wall · Hubs: Formula Alloy, 32h · Front tire: Giant P-X3, Multi-surface, 700x38 · Rear tire: Giant P-X3, Multi-surface, 700x38

Controls and contact points

Archived: Handlebar: Alloy, High rise, 25.4mm · Stem: Alloy adjustable · Seatpost: Alloy Suspension, 30.9mm · Saddle: Giant Comfort Grove Plus · Pedals: Platform
