Velopedia Bicycle Archive

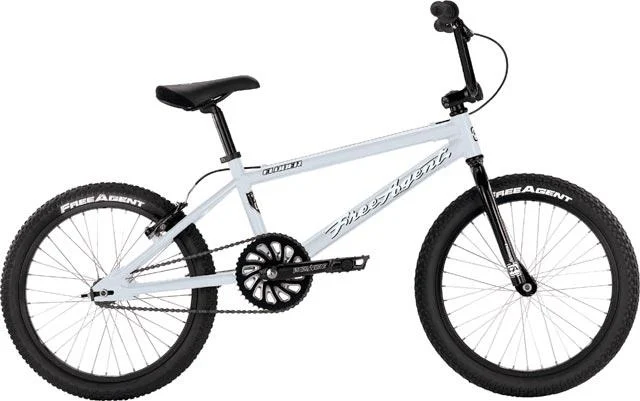

2005 Free Agent Eluder

Original specifications: 20" wheels.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #10109
Model year
2005
Category
BMX
Original MSRP
$229.00
Colors
Silver, White, Black
In this record
23 specifications · archived image · original MSRP
Model history 13 other years

Browse other years

Compare side by side

Identification clues

2005 archived details

Published colors
Silver, White, Black
Frame
7005 aluminum
Original equipment
N/A

Clues, not proof of model year. Colors vary and components may have been replaced.

Campaign
Original build7005 aluminum · 20" wheels

Manufacturer catalog

Published sizes and colors

3 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published colors

SilverWhiteBlack

Frameset

Frame ConstructionTIG-welded
Frame Material7005 aluminum
ForkFree Agent
Fork MaterialChromoly, unicrown crown

Drivetrain

Crankset3-piece chromoly, 44 teeth
Bottom BracketSealed mechanism
Rear Cogs1-speed, 16 teeth
ChainKMC C410, 1/2 x 1/8"
PedalsFree Agent aluminum platform

Brakes

BrakesTektro 920 rear brakes, Free Agent aluminum rear levers

Cockpit & Contact Points

Headset1 1/8" threadless steel
HandlebarHi-tensile
Handlebar ExtensionsNot included
StemAluminum
SaddleFree Agent
SeatpostSluminum, 26.8mm diameter

Wheels & Tires

HubsFormula sealed
RimsWeinmann alloy, 36-hole
SpokesUCP, 14ga. (2.0mm) straight gauge
Spoke NipplesBrass nipples
Front Tire20 x 2.00" Duro
Rear Tire20 x 1.90" Duro
Wheel Size20" wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

Published build44T · 16T · 1-speed
Ratio2.75:1
Estimated speed At 90 RPM Gear14.6 mph

Rear tire: 20×1.9.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications
Seatpost · Original
Sluminum

26.8mm diameter

Search Amazon Search eBay

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Front: 20 x 2.00" Duro, Rear: 20 x 1.90" Duro
Drivetrain
1-speed
Seatpost diameter
26.8 mm
Bottom bracket / shell
Sealed mechanism
Campaign
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
0 of 10 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Frame and fork

Inspect the frame and fork →

Archived: Frame: TIG-welded · Fork: Free Agent · Chromoly, unicrown crown

Drivetrain

Check drivetrain wear →

Archived: Crankset: 3-piece chromoly, 44 teeth · Bottom bracket: Sealed mechanism · Rear cogs: 1-speed, 16 teeth · Chain: KMC C410, 1/2 x 1/8"

Brakes

Inspect the brakes →

Archived: Brakes: Tektro 920 rear brakes, Free Agent aluminum rear levers

Wheels and tires

Check wheels and tires →

Archived: Wheel size: 20" wheels · Rims: Weinmann alloy, 36-hole · Hubs: Formula sealed · Front tire: Front: 20 x 2.00" Duro, Rear: 20 x 1.90" Duro

Controls and contact points

Archived: Headset: 1 1/8" threadless steel · Handlebar: Hi-tensile · Stem: Aluminum · Seatpost: Sluminum, 26.8mm diameter · Saddle: Free Agent · Pedals: Free Agent aluminum platform
