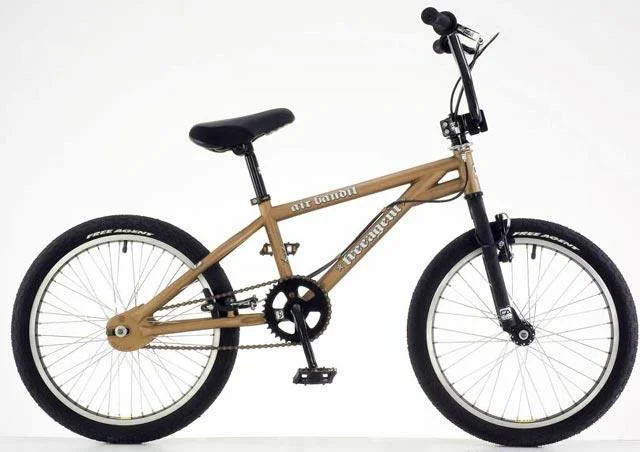

2005 Free Agent Air Bandit

Original specifications: 20" wheels.

Share owner experience

At a glance

Archive #93675

Model year: 2005
Category: BMX
Original MSRP: $179.00
Colors: Glossy Black, Spicy Mustard
In this record: 22 specifications · archived image · original MSRP

Model history 1 other year

Browse other years

Compare side by side

Identification clues

2005 archived details

Published colors: Glossy Black, Spicy Mustard
Frame: Chromoly main triangle
Original equipment: N/A

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildChromoly main triangle · 20" wheels

Manufacturer catalog

Published sizes and colors

2 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published colors

Glossy BlackSpicy Mustard

Frameset

Frame Construction	TIG-welded
Frame Material	Chromoly main triangle
Fork	Free Agent
Fork Material	High-tensile steel, unicrown crown

Drivetrain

Crankset	1-piece chromoly, 40 teeth
Bottom Bracket	Steel
Rear Cogs	1-speed, 16 teeth
Chain	KMC Z410, 1/2 x 1/8"
Pedals	Aluminum platform, chromoly axle

Brakes

Brakes	Aluminum U-brake front/aluminum linear-pull rear brakes, aluminum levers

Cockpit & Contact Points

Headset	1 1/8" threadless
Handlebar	4-piece freestyle
Handlebar Extensions	Not included
Stem	Aluminum
Saddle	Free Agent Jumping
Seatpost	Aluminum micro-adjust, 26.0mm diameter

Wheels & Tires

Hubs	Steel
Rims	Aluminum, 48-hole
Spokes	UCP, 14ga. (2.0mm) straight gauge
Spoke Nipples	Brass nipples
Front Tire	20 x 2.00" Free Agent freestyle
Wheel Size	20" wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

Pedal cadence

RPM

Speed units

RPM = pedal turns per minute.

Published build40T · 16T · 1-speed

Ratio2.50:1

Estimated speed At 90 RPM Gear13.4 mph

Uses front tire 20×2; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Gears Drivetrain

Front teeth Smallest rear teeth Largest rear teeth

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Rear tire marking

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

Rim diameter (BSD, mm) Tire width (mm)

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Cadence (RPM) Speed units

Gear, dimension and cadence changes update results automatically.

Gearing comparison
Measure	Original	Your setup
Lowest ratio	—	—
Highest ratio	—	—
Total range	—	—
Lowest-gear speed	—	—
Highest-gear speed	—	—

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Front tire · Original

20 x 2.00" Free Agent freestyle Replacement search: 20x2 bicycle tire Before ordering: Check rim type and tire clearance.

Search Amazon Search eBay

Seatpost · Original

Aluminum micro-adjust

26.0mm diameter

Search Amazon Search eBay

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire: 20 x 2.00" Free Agent freestyle
Drivetrain: 1-speed
Seatpost diameter: 26 mm
Bottom bracket / shell: Steel
