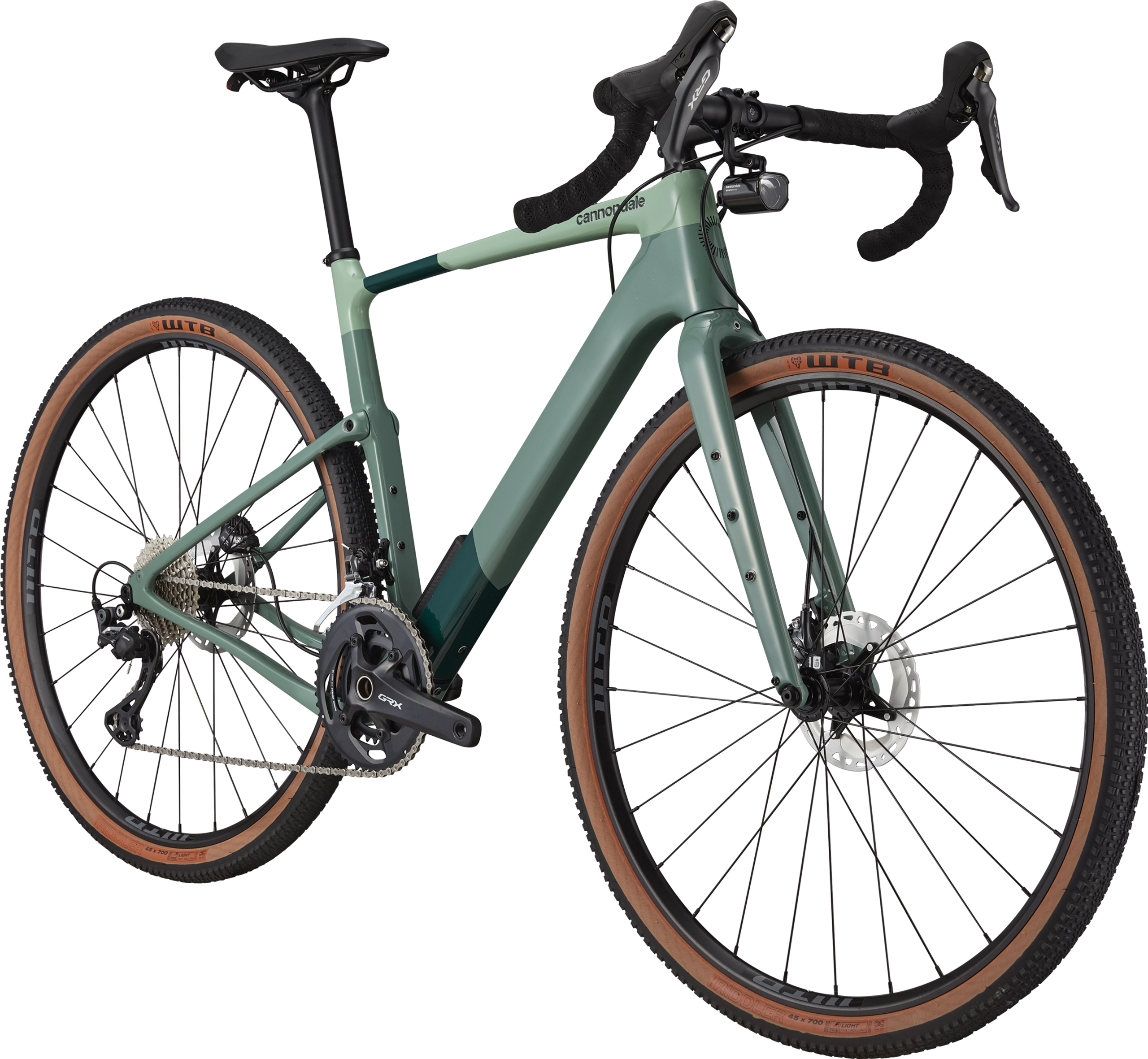

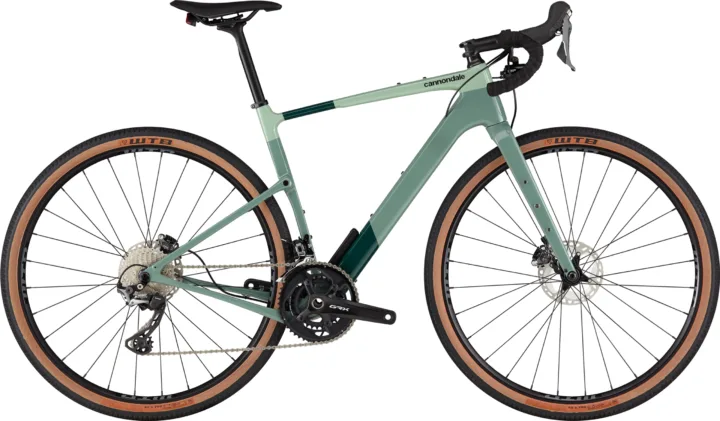

2022 Cannondale Topstone Carbon 2 L
Cyclocross/Gravel bicycle from the Velopedia specification archive.
- Original MSRP
- $4,250.00
- Sizes
- XS, SM, MD, LG, XL
- Colors
- Jade
- Archive ID
- 900000002
Current market
Checking current listings…Frameset
| Frame Construction | Topstone Carbon, Kingpin suspension system, SmartSense equipped, Proportional Response construction, 12x142mm thru-axle, 27.2 dropper post ready, BSA 68mm threaded BB, DirectLine internal cable routing, removable fender bridge, multiple gear/bottle mounts |
|---|---|
| Frame Material | Carbon fiber |
| Fork | Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, triple bottle/gear mounts, fender mounts |
| Fork Material | Carbon fiber |
Drivetrain
| Shifters | Shimano GRX 800, 11-speed |
|---|---|
| Front Derailleur | Shimano GRX 800, braze-on |
| Rear Derailleur | Shimano GRX 810, Shadow RD+ |
| Crankset | Shimano GRX 800, 48/31 (Europe/UK - FSA Gossamer Pro Modular AGX+, 46/30) |
| Bottom Bracket | Shimano BSA 68 |
| Rear Cogs | Shimano HG800, 11-34, 11-speed |
| Chain | Shimano HG701, 11-speed |
Brakes
| Brakes | Brakes Shimano GRX 800 hydraulic disc, 160/160mm MT800 rotors Brake Levers Shimano GRX 800 hydraulic disc |
|---|
Cockpit & Contact Points
| Headset | Integrated, Carbon, 1-1/8" - 1-1/2" |
|---|---|
| Handlebar | Cannondale 2 ShortDrop, 7050 alloy, 12 deg flare drop |
| Stem | Cannondale 2, 6061 Alloy, 31.8, 7° |
| Saddle | Fizik Terra Argo X5, S-alloy rails |
| Seatpost | SAVE Carbon SmartSense, 27.2, 350mm (XS-L), 400mm (XL) |
Wheels & Tires
| Hubs | (F) Formula cartridge bearing, 12x100mm centerlock / (R) Formula cartridge bearing, 12x142mm centerlock |
|---|---|
| Rims | WTB KOM Light i23 TCS, 700c, 28h, tubeless ready |
| Spokes | Stainless Steel, 14g |
| Front Tire | WTB Riddler TCS Light, 700x45c, tubeless ready (Europe/UK - Vittoria Terreno Dry 700x38c ANT tubeless compatible) |
| Rear Tire | WTB Riddler TCS Light, 700x45c, tubeless ready (Europe/UK - Vittoria Terreno Dry 700x38c ANT tubeless compatible) |
| Wheel Size | 700c |
Gallery
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
