Lowest0.94:1
Highest3.83:1
Total range409%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Rear tire: 700C×35.
Velopedia Bicycle Archive

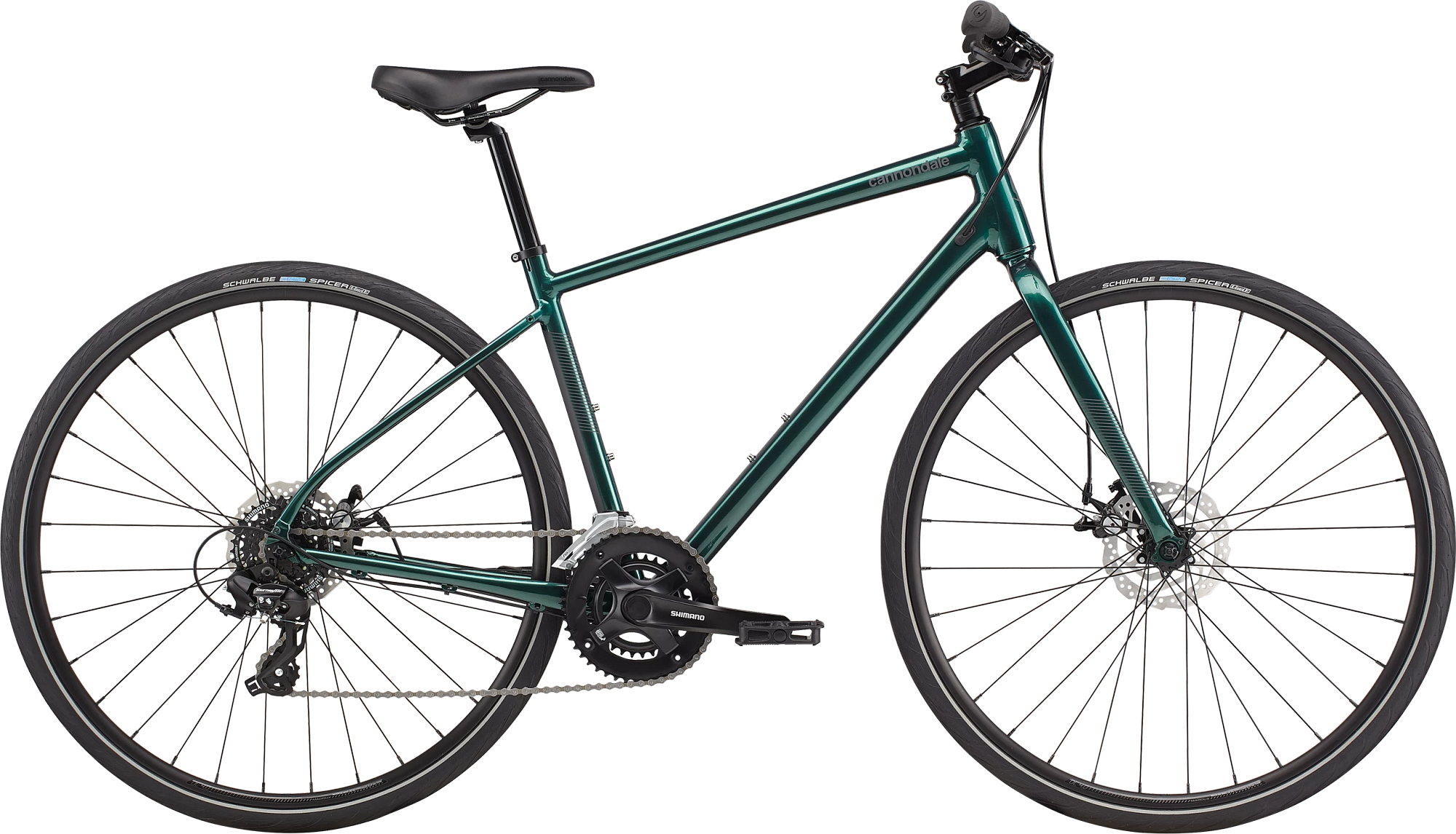

2021 Cannondale Quick 5
Original specifications: 700c wheels · geometry for 5 published sizes.
Planning to sell? Draft your listing
At a glance
Archive #900000153- Model year
- 2021
- Category
- Hybrid
- Original MSRP
- $699.00
- Sizes
- S, M, L, XL, XXL
- Colors
- Matte Black, Emerald
- Geometry
- 5 manufacturer sizes
- In this record
- 23 specifications · 2 archived images · original MSRP · geometry
Model history 7 other years
Browse other years
Compare side by side
Identification clues
2021 archived details
- Published colors
- Matte Black, Emerald
- Frame
- Aluminum
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildAluminum · 700c
Frameset
| Frame Construction | SmartForm C3 Alloy, SAVE, tapered head tube, Straightshot hidden cable routing, flat mount disc, rack/fender mounts, 360° reflectivity |
|---|---|
| Frame Material | Aluminum |
| Fork | Chromoly, 1-1/8" steerer, OutFront offset, flat mount disc, mid-blade mounts |
| Fork Material | Steel |
Drivetrain
| Shifters | microSHIFT Mezzo |
|---|---|
| Front Derailleur | microSHIFT Mezzo |
| Rear Derailleur | microSHIFT M26L |
| Crankset | Prowheel 46/30 |
| Bottom Bracket | Cartridge, square taper |
| Rear Cogs | microSHIFT 12-32, 7-speed |
| Chain | KMC Z7, 7-speed |
Brakes
| Brakes | Brakes Promax mechanical disc, 160/160mm rotors Brake Levers Promax BL42 |
|---|
Cockpit & Contact Points
| Headset | Integrated, 1-1/4"-1-1/8" |
|---|---|
| Handlebar | 6061 Alloy Double-butted, 25mm rise, 8° sweep, 6° rise, 640mm |
| Stem | 6061 Alloy, 31.8, 8° |
| Saddle | Cannondale Fitness Ergo Double Density |
| Seatpost | 6061 Alloy, 27.2x350mm |
Wheels & Tires
| Hubs | (F) Shimano, Alloy, Sealed, QR / (R) Shimano, Alloy, Sealed, QR |
|---|---|
| Rims | Cannondale Disc, double wall w/eyelet, 32h |
| Spokes | Stainless Steel, 14g |
| Front Tire | Schwalbe Spicer PLUS PunctureGuard, 700x35c, reflective strip |
| Rear Tire | Schwalbe Spicer PLUS PunctureGuard, 700x35c, reflective strip |
| Wheel Size | 700c |
No specifications match. Try a component name or clear your search.
Geometry
Frame measurements by size.
Frame diagram
Size
Measurement
Measurement
—
Select an available measurement to locate it on the frame.
All geometry measurements5 sizes · 15 measurements
| Measurement | S | M | L | XL | XXL |
|---|---|---|---|---|---|
| Seat tube | 400 mm | 450 mm | 500 mm | 550 mm | 600 mm |
| Effective top tube | 567 mm | 583 mm | 598 mm | 613 mm | 628 mm |
| Head tube | 133 mm | 158 mm | 184 mm | 209 mm | 234 mm |
| Head-tube angle | 71° | 71° | 71° | 71° | 71° |
| Seat-tube angle | 73° | 73° | 73° | 73° | 73° |
| Chainstay / rear center | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1053 mm | 1069 mm | 1086 mm | 1102 mm | 1118 mm |
| Bottom-bracket drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Bottom-bracket height | 282 mm | 282 mm | 282 mm | 282 mm | 282 mm |
| Reach | 398 mm | 406 mm | 414 mm | 422 mm | 430 mm |
| Stack | 554 mm | 578 mm | 602 mm | 626 mm | 650 mm |
| Standover height | 699 mm | 741 mm | 782 mm | 822 mm | 862 mm |
| Fork offset / rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Front center | 627 mm | 643 mm | 660 mm | 676 mm | 692 mm |
| Trail | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm |
Dimensions as recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Schwalbe Spicer PLUS PunctureGuard
700x35c, reflective strip
Retailer offers
Vittoria Randonneur Reflect Tire Black, 700x35
700x35c
Replacement option
Other replacement options (1)
Challenge Strada Pro Tubeless Tire Black, 700x35
700x35c
Replacement option
Schwalbe Spicer PLUS PunctureGuard reflective strip on eBaySponsored links
6061 Alloy
27.2x350mm
Retailer offers
Race Face Ride XC Seatpost Black, 27.2x375mm
Replacement option
KMC Z7
7-speed
More parts (3)Fewer parts
microSHIFT 12-32
7-speed
microSHIFT Mezzo
microSHIFT Mezzo
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- Schwalbe Spicer PLUS PunctureGuard, 700x35c, reflective strip
- Rear tire
- Schwalbe Spicer PLUS PunctureGuard, 700x35c, reflective strip
- Drivetrain
- 7-speed
- Seatpost diameter
- 27.2 mm
- Bottom bracket / shell
- Cartridge, square taper
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: SmartForm C3 Alloy, SAVE, tapered head tube, Straightshot hidden cable routing, flat mount disc, rack/fender mounts, 360° reflectivity · Fork: Chromoly, 1-1/8" steerer, OutFront offset, flat mount disc, mid-blade mounts · Steel
Drivetrain
Check drivetrain wear →Archived: Shifters: microSHIFT Mezzo · Front derailleur: microSHIFT Mezzo · Rear derailleur: microSHIFT M26L · Crankset: Prowheel 46/30 · Bottom bracket: Cartridge, square taper · Rear cogs: microSHIFT 12-32, 7-speed · Chain: KMC Z7, 7-speed
Brakes
Inspect the brakes →Archived: Brakes: Brakes Promax mechanical disc, 160/160mm rotors Brake Levers Promax BL42
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c · Rims: Cannondale Disc, double wall w/eyelet, 32h · Hubs: (F) Shimano, Alloy, Sealed, QR / (R) Shimano, Alloy, Sealed, QR · Front tire: Schwalbe Spicer PLUS PunctureGuard, 700x35c, reflective strip · Rear tire: Schwalbe Spicer PLUS PunctureGuard, 700x35c, reflective strip
Controls and contact points
Archived: Headset: Integrated, 1-1/4"-1-1/8" · Handlebar: 6061 Alloy Double-butted, 25mm rise, 8° sweep, 6° rise, 640mm · Stem: 6061 Alloy, 31.8, 8° · Seatpost: 6061 Alloy, 27.2x350mm · Saddle: Cannondale Fitness Ergo Double Density
Have you owned this model?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Gallery2 images
Checking current listings…
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
