Lowest1.12:1
Highest3.45:1
Total range309%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Rear tire: 27.5×2.
Velopedia Bicycle Archive

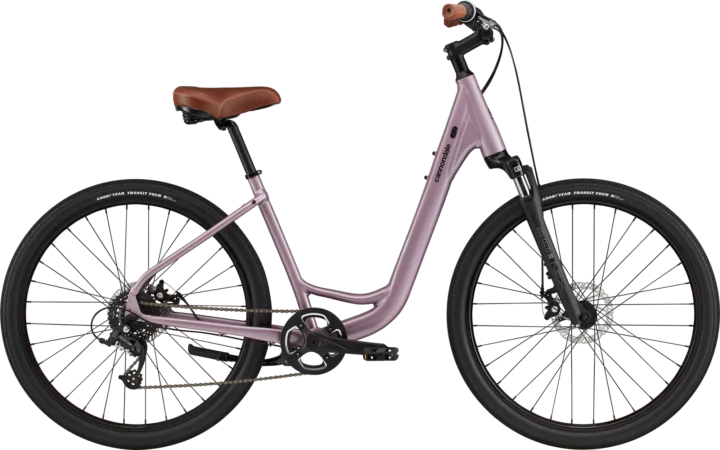

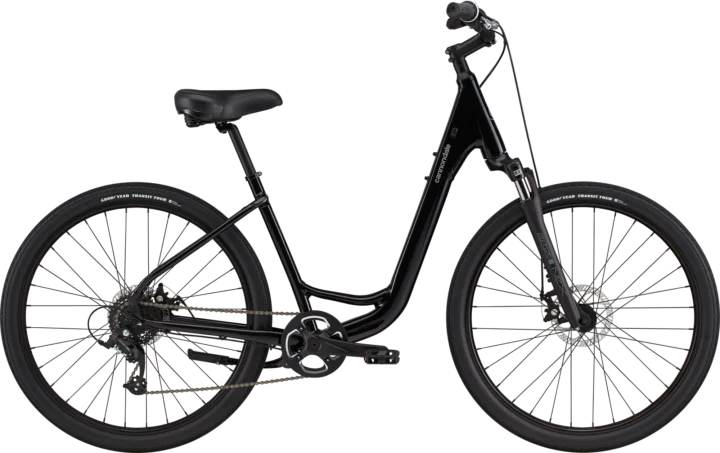

2021 Cannondale Adventure 2
Original specifications: 650b wheels · geometry for 3 published sizes.
Planning to sell? Draft your listing
At a glance
Archive #900001161- Model year
- 2021
- Category
- Hybrid
- Original MSRP
- $810.00
- Sizes
- S, M, L
- Colors
- Abyss Blue, Lavender, Black Pearl
- Geometry
- 3 manufacturer sizes
- In this record
- 21 specifications · 3 archived images · original MSRP · geometry
Model history 10 other years
Browse other years
Compare side by side
Identification clues
2021 archived details
- Published colors
- Abyss Blue, Lavender, Black Pearl
- Frame
- Aluminum
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildAluminum · 650b
Frameset
| Frame Construction | SmartForm C3 Alloy, SAVE, low-step thru, tapered head tube, Straightshot hidden cable routing, disc brakes, rack/fender mounts |
|---|---|
| Frame Material | Aluminum |
| Fork | Suntour NEX-E25, 50mm travel, coil, custom crown, 1-1/8" steerer |
Drivetrain
| Shifters | microSHIFT MS25, 7-speed |
|---|---|
| Rear Derailleur | microSHIFT M26S |
| Crankset | Prowheel, 38T |
| Bottom Bracket | Cartridge, square taper |
| Rear Cogs | Sunrace, 11-34, 7-speed |
| Chain | KMC Z7, 7-speed |
Brakes
| Brakes | Brakes Tektro Mechanical Disc, 160/160mm rotors Brake Levers Tektro 4-finger |
|---|
Cockpit & Contact Points
| Headset | Semi-Integrated, Tapered, 1.5"-1-1/8" |
|---|---|
| Handlebar | Cannondale Riser, 6061 Alloy, 60mm rise, 15° back, 685mm |
| Stem | 6061 Alloy, 31.8, 8° |
| Saddle | Cannondale Ergo Comfort |
| Seatpost | Alloy, 27.2x350mm |
Wheels & Tires
| Hubs | (F) Formula DC-1420, QR / (R) Formula DC-27A, QR |
|---|---|
| Rims | Cannondale Disc, double wall w/eyelet, 32h |
| Spokes | Stainless steel, 14g |
| Front Tire | Goodyear Transit Tour, 27.5x2.0" |
| Rear Tire | Goodyear Transit Tour, 27.5x2.0" |
| Wheel Size | 650b |
No specifications match. Try a component name or clear your search.
Geometry
Frame measurements by size.
Frame diagram
Size
Measurement
Measurement
—
Select an available measurement to locate it on the frame.
All geometry measurements3 sizes · 15 measurements
| Measurement | SM | MD | LG |
|---|---|---|---|
| Seat tube | 385 mm | 445 mm | 510 mm |
| Effective top tube | 572 mm | 590 mm | 605 mm |
| Head tube | 145 mm | 155 mm | 165 mm |
| Head-tube angle | 69° | 69° | 69° |
| Seat-tube angle | 70° | 70° | 70° |
| Chainstay / rear center | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1066 mm | 1085 mm | 1100 mm |
| Bottom-bracket drop | 68 mm | 68 mm | 68 mm |
| Bottom-bracket height | 280 mm | 280 mm | 280 mm |
| Reach | 348 mm | 362 mm | 374 mm |
| Stack | 617 mm | 626 mm | 635 mm |
| Standover height | 701 mm | 738 mm | 776 mm |
| Fork offset / rake | 45 mm | 45 mm | 45 mm |
| Front center | 610 mm | 628 mm | 643 mm |
| Trail | 85 mm | 85 mm | 85 mm |
Dimensions as recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Goodyear Transit Tour
27.5x2.0"
Retailer offers
Continental Race King ShieldWall Tire - 27.5in Black, PureGrip, 27.5x2.00
Replacement option
Alloy
27.2x350mm
Retailer offers
Race Face Ride XC Seatpost Black, 27.2x375mm
Replacement option
KMC Z7
7-speed
More parts (1)Fewer parts
Sunrace
11-34, 7-speed
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- Goodyear Transit Tour, 27.5x2.0"
- Rear tire
- Goodyear Transit Tour, 27.5x2.0"
- Drivetrain
- 7-speed
- Seatpost diameter
- 27.2 mm
- Bottom bracket / shell
- Cartridge, square taper
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: SmartForm C3 Alloy, SAVE, low-step thru, tapered head tube, Straightshot hidden cable routing, disc brakes, rack/fender mounts · Fork: Suntour NEX-E25, 50mm travel, coil, custom crown, 1-1/8" steerer
Suspension
Evaluate the suspension →Archived: Fork: Suntour NEX-E25, 50mm travel, coil, custom crown, 1-1/8" steerer
Drivetrain
Check drivetrain wear →Archived: Shifters: microSHIFT MS25, 7-speed · Rear derailleur: microSHIFT M26S · Crankset: Prowheel, 38T · Bottom bracket: Cartridge, square taper · Rear cogs: Sunrace, 11-34, 7-speed · Chain: KMC Z7, 7-speed
Brakes
Inspect the brakes →Archived: Brakes: Brakes Tektro Mechanical Disc, 160/160mm rotors Brake Levers Tektro 4-finger
Wheels and tires
Check wheels and tires →Archived: Wheel size: 650b · Rims: Cannondale Disc, double wall w/eyelet, 32h · Hubs: (F) Formula DC-1420, QR / (R) Formula DC-27A, QR · Front tire: Goodyear Transit Tour, 27.5x2.0" · Rear tire: Goodyear Transit Tour, 27.5x2.0"
Controls and contact points
Archived: Headset: Semi-Integrated, Tapered, 1.5"-1-1/8" · Handlebar: Cannondale Riser, 6061 Alloy, 60mm rise, 15° back, 685mm · Stem: 6061 Alloy, 31.8, 8° · Seatpost: Alloy, 27.2x350mm · Saddle: Cannondale Ergo Comfort
