Lowest0.88:1
Highest4.36:1
Total range499%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 700C×38; rear size isn’t listed.
Velopedia Bicycle Archive

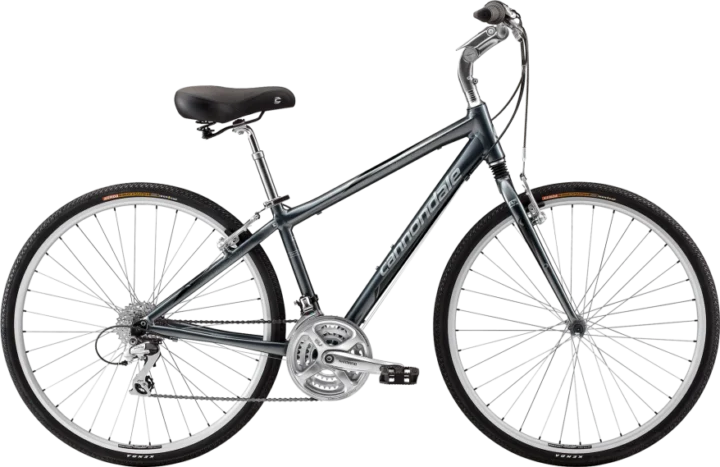

2011 Cannondale Adventure 2
Original specifications: Shimano Alivio · 8-speed rear derailleur · 700c wheels.
Planning to sell? Draft your listing
At a glance
Archive #22427- Model year
- 2011
- Category
- City & Commuter
- Sizes
- S, M, L, XL
- Colors
- Indigo Blue (gloss), Charcoal Gray (gloss)
- In this record
- 26 specifications · 2 archived images
Model history 10 other years
Browse other years
Compare side by side
Identification clues
2011 archived details
- Published colors
- Indigo Blue (gloss), Charcoal Gray (gloss)
- Frame
- Alloy
- Original equipment
- Commuter Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildAlloy · Commuter Mix · 700c wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Alloy |
| Fork | Adventure Trail Si, 35mm travel |
| Fork Material | Steel, single crown |
Drivetrain
| Component Group | Commuter Mix |
|---|---|
| Shifters | Shimano Revo Twist Type |
| Front Derailleur | Shimano M191 |
| Rear Derailleur | Shimano Alivio |
| Crankset | Shimano M191, 28/38/48 teeth |
| Bottom Bracket | Tange cartridge |
| Cassette | Sunrace CSM668 |
| Rear Cogs | 8-speed, 11 - 32 teeth |
| Chain | KMC X8 |
| Pedals | FPD Resin w/kraton insert |
Brakes
| Brakes | Cannondale V Brake, w/modulator brakes, Cannondale levers |
|---|
Cockpit & Contact Points
| Headset | Integrated |
|---|---|
| Handlebar | Cannondale C4 |
| Handlebar Extensions | Not included |
| Stem | Tranz X Comfort Grip |
| Saddle | Cannondale Ultra Comfort |
| Seatpost | Cannondale Suspension, 27.2mm diameter |
Wheels & Tires
| Hubs | Front: Formula FM-21, Rear: Formula FM-22 |
|---|---|
| Rims | Cannondale C3 |
| Spokes | Stainless, 15ga. (1.8mm) |
| Front Tire | 700 x 38c Kenda Kwick Trax |
| Wheel Size | 700c wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
KMC X8
Retailer offers
SRAM PC-830 Chain One Color, 8 Speed
Replacement option
KMC X8 on eBaySponsored links
700 x 38c Kenda Kwick Trax
Retailer offers
Panaracer Gravelking SS+ Tire - Tubeless Black, 700x38
700x38c
Replacement option
Kenda Kwick Trax on eBaySponsored links
Cannondale Suspension
27.2mm diameter
Retailer offers
Cane Creek Thudbuster ST Seatpost Black, 27.2mm
Replacement option
More parts (4)Fewer parts
Sunrace CSM668
Cannondale V Brake
w/modulator brakes, Cannondale levers
Shimano M191
28/38/48 teeth
Shimano Alivio
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 700 x 38c Kenda Kwick Trax
- Drivetrain
- 8-speed
- Seatpost diameter
- 27.2 mm
- Bottom bracket / shell
- Tange cartridge
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Adventure Trail Si, 35mm travel · Steel, single crown
Suspension
Evaluate the suspension →Archived: Fork: Adventure Trail Si, 35mm travel
Drivetrain
Check drivetrain wear →Archived: Group: Commuter Mix · Shifters: Shimano Revo Twist Type · Front derailleur: Shimano M191 · Rear derailleur: Shimano Alivio · Crankset: Shimano M191, 28/38/48 teeth · Bottom bracket: Tange cartridge · Cassette: Sunrace CSM668 · Rear cogs: 8-speed, 11 - 32 teeth · Chain: KMC X8
Brakes
Inspect the brakes →Archived: Brakes: Cannondale V Brake, w/modulator brakes, Cannondale levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c wheels · Rims: Cannondale C3 · Hubs: Front: Formula FM-21, Rear: Formula FM-22 · Front tire: 700 x 38c Kenda Kwick Trax
Controls and contact points
Archived: Headset: Integrated · Handlebar: Cannondale C4 · Stem: Tranz X Comfort Grip · Seatpost: Cannondale Suspension, 27.2mm diameter · Saddle: Cannondale Ultra Comfort · Pedals: FPD Resin w/kraton insert
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Gallery2 images
No recent price sample is available for this bike. Check eBay for matching listings.
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
