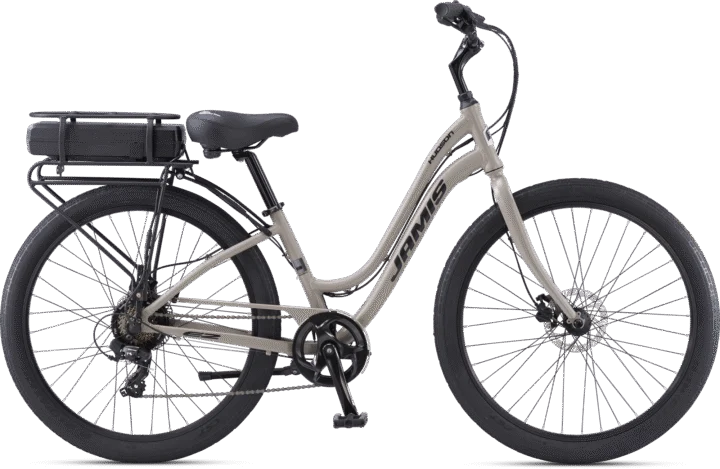

2021 Jamis Hudson E2

Archived: 2021 Jamis Hudson E2 · Electric-assist · Published sizes: 19″, 14″ S/T, 18″ S/T

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: 6061 TIG-welded aluminum, Hudson laid-back design with low ride height, alloy kickstand · Fork: Hi-tensile unicrown with radiused blades

• Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.
• Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

Archived: Group: Shimano RD-TY300 rear · Shifters: Shimano Altus SL-M310, 7-speed · Rear derailleur: Shimano RD-TY300 rear · Crankset: Forged alloy crank, single 42T chainring, 170mm, with full length chainguard · Bottom bracket: Sealed cartridge, 68 x 122.5mm w/ single side torque sensor · Cassette: Shimano freewheel 7-speed, 14-34 · Chain: KMC Z51

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Tektro HD-M275 hydraulic disc brakes with 160mm rotors and Tektro brake levers.

• Squeeze each lever firmly. It should feel consistent and return cleanly. Check levers, hoses and calipers for fluid, inspect pad thickness and contamination, and examine rotors for wear or bending.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

Archived: Wheel size: 27.5 · Wheels: Alex DC25 alloy double-wall rims, 36H, alloy QR front hub with Hyena 250w rear hub drive motor, 14g black stainless steel spokes · Front tire: CST Metropolitan Palm Bay, 27.5 x 2.35 · Rear tire: CST Metropolitan Palm Bay, 27.5 x 2.35

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.

Archived: Headset: Internal cup, threaded, 1 1/8” · Handlebar: Comfort hi-rise, alloy 25.4 x 80mm rise x 15˚ sweep x 640mm · Stem: Jamis alloy, 180mm quill x 80mm extension · Seatpost: Alloy micro-adjust, 31.6 x 300mm, with alloy QR clamp · Saddle: Jamis Comfort with memory foam, synthetic suede top, burnished side panels and bumper springs · Pedals: Comfort platform with TPE non-slip insert

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

Archived: Motor: Rear hub motor providing Class-1 assist up to 20MPH · Battery: 320wh battery provides an average range of 20-50 miles

• Inspect the battery case, mount, lock and electrical contacts for cracks, impact, corrosion, swelling, overheating marks or looseness. Confirm the battery charges normally.
• Confirm the correct charger, battery keys and removable system parts are included. Check charger cables and connectors for damage or improvised repairs.
• Power the system on from cold, check the display for warnings, and test every assist mode. Assistance should engage and stop predictably without intermittent cutouts or abnormal motor noise.
• Ask for available battery-health, cycle-count, diagnostic and firmware records. Confirm that replacement batteries and system support remain available before agreeing on value.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
