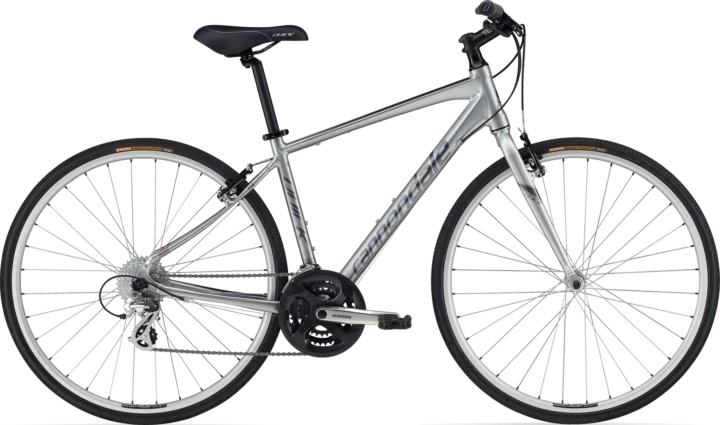

2012 Cannondale Quick 5

Original specifications.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #3042123
Model year
2012
Category
City & Commuter
Sizes
Jumbo, L, M, Petite, S, Tall, XL, XS
Colors
Silver, White
In this record
18 specifications · 4 archived images
Model history 7 other years

Browse other years

Compare side by side

Identification clues

2012 archived details

Published colors
Silver, White
Frame
butted 6061 alloy

Clues, not proof of model year. Colors vary and components may have been replaced.

Campaign
Original buildbutted 6061 alloy

Manufacturer catalog

Published sizes and colors

8 sizes · 2 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

JumboLMPetiteSTallXLXS

Published colors

SilverWhite

Frameset

Frame Materialbutted 6061 alloy
ForkQuick alloy

Drivetrain

ShiftersShimano M310 Rapidfire 8spd
Front DerailleurShimano M191
Rear DerailleurShimano Altus 8spd
CranksetShimano M131 48/38/28t
Bottom BracketTange Cartridge
CassetteSun Race CSM668 8spd 11-32t
ChainKmc
PedalsQuick Composite

Brakes

BrakesCannondale Mini V

Cockpit & Contact Points

HeadsetTange Si
HandlebarCannondale C4 Riser
StemCannondale C4
SaddleCannondal Quick Ergo
SeatpostCannondale C4 Alloy

Wheels & Tires

RimsCannondale C4
Front TireKenda Kwik Trax 700x32c

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

Published build48/38/28T · 11–32T · 8-speed
Lowest0.88:1 Highest4.36:1 Total range499%

Speed unavailable: wheel or tire size is missing or unclear.

Add your rear tire size to calculate speed
How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications
Front tire · Original
Kenda Kwik Trax 700x32c
Search Amazon Search eBay
Retailer offers

Continental Ultra Sport Iii Road Bike Tire - 700C - (Clincher Wire) Black/Black, 700c x 32mm

700x32c

Replacement option

Other replacement options (1)
Crankset · Original
Shimano M131 48/38/28t
Search eBay
Rear derailleur · Original
Shimano Altus 8spd
Search eBay

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Kenda Kwik Trax 700x32c
Drivetrain
8-speed
Bottom bracket / shell
Tange Cartridge
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
0 of 10 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Frame and fork

Inspect the frame and fork →

Archived: Frame: butted 6061 alloy · Fork: Quick alloy

Drivetrain

Check drivetrain wear →

Archived: Shifters: Shimano M310 Rapidfire 8spd · Front derailleur: Shimano M191 · Rear derailleur: Shimano Altus 8spd · Crankset: Shimano M131 48/38/28t · Bottom bracket: Tange Cartridge · Cassette: Sun Race CSM668 8spd 11-32t · Chain: KMC

Brakes

Inspect the brakes →

Archived: Brakes: Cannondale Mini V

Wheels and tires

Check wheels and tires →

Archived: Rims: Cannondale C4 · Front tire: Kenda Kwik Trax 700x32c

Controls and contact points

Archived: Headset: Tange Si · Handlebar: Cannondale C4 Riser · Stem: Cannondale C4 · Seatpost: Cannondale C4 Alloy · Saddle: Cannondal Quick Ergo · Pedals: Quick Composite
