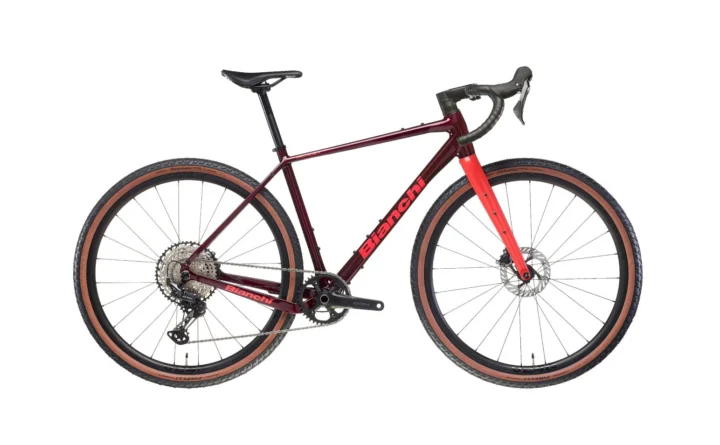

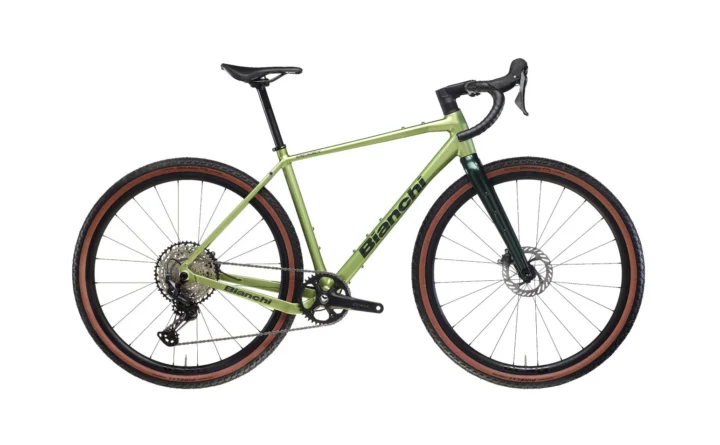

2026 Bianchi Arcadex ALU CUES

Archived: Frame: Bianchi Arcadex AL, alluminio, tubi idroformati, tire clearance 50 mm, T47 movimento centrale, portapacchi e parafanghi, taglie: XS-SM-MD-LG-XL · Fork: Bianchi full Carbon, freno a disco flat mount, perno passante 12×100 mm · Carbon Fiber

• Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.
• Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

Archived: Shifters: Shimano CUES U6030 10/11sp freno a disco idraulico · Rear derailleur: Shimano CUES RD-U6000, 10sp · Crankset: Shimano Cues U6030-1 40T lunghezza pedivella: 165 mm (XS-SM); 170 mm (MD-LG); 172.5 mm (XL) · Bottom bracket: Token T47, perno 24 mm, 86.5 mm larghezza · Cassette: Shimano CS-LG400-11, CUES, 11 Speed · Chain: Shimano

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Shimano/Sram Brake inclusi nei comandi; Rotors: Shimano SM-RT54, S 160MM; Levers: Incluse nel cambio

• Inspect pads and braking surfaces, check the complete cable or hose path, and confirm both controls feel consistent and return cleanly.

Archived: Wheels: Velomann Aluminium, 622x24c, 24h · Front tire: Schwalbe G-ONE COMP K-Guard, 45-622 · Rear tire: Schwalbe G-ONE COMP K-Guard, 45-622

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.

Archived: Headset: Acros IS52 Integrated Cable Routing · Handlebar: Velomann Gravel, alluminio, diametro31.8 mm, reach 70 mm, drop 130 mm, flare 16 deg Taglie: 400 mm (XS-SM); 420 mm (MD-LG); 440 mm (XL) · Stem: Velomann AL6061, rise -7° Size: 70 mm (XS); 80 mm (SM); 90 mm (MD); 100 mm (LG); 110 mm (XL) · Seatpost: Velomann alluminio, 27,2 mm, Seatback 0 mm length: 300 mm 0 offset (XS); 350 mm 0 offset (SM-MD-LG); 400 mm 0 offset (XL) · Saddle: Selle Royal SRX Open

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.
