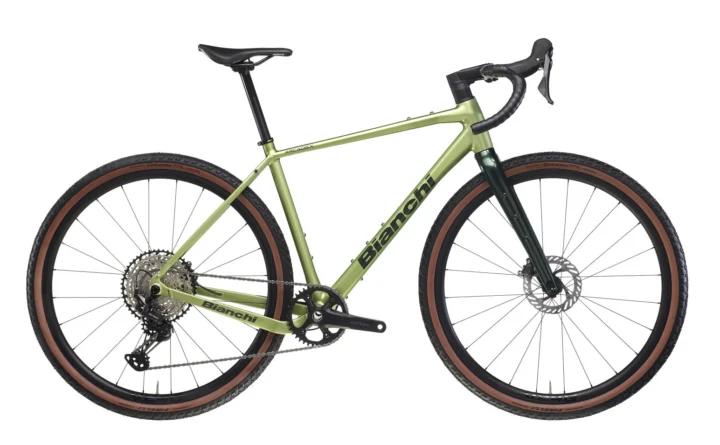

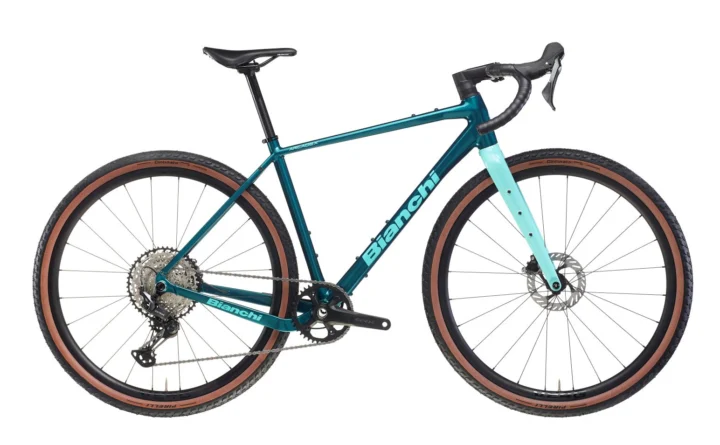

2026 Bianchi Arcadex AL GRX610/822

Archived: Frame: Bianchi Arcadex AL, alluminio, tubi idroformati, massima copertura 50 mm, Movimento centrale T47, compatibilità portapacchi e parafanghi taglie XS-SM-MD-LG-XL · Fork: Bianchi Arcadex, Carbonio, Pinza Flat mount, Perno passante 12×100 mm · Carbon Fiber

• Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.
• Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

Archived: Shifters: Shimano GRX, shifter lever ST-RX610, caliper BRRX400 · Rear derailleur: Shimano GRX, RD-RX822, 12sp · Crankset: Shimano GRX, FC-RX610, 40T Lunghezza pedivella: 165 mm (XS-SM); 170 mm (MD-LG); 172.5 mm (XL) · Bottom bracket: Token T47, 24 mm axle, 86.5 mm width · Cassette: Shimano SLX, CS-M7100, 10-51T, 10-12-14-16-18-21-24-28-33-39-45-51T · Chain: Shimano 105, CN-M7100

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Shimano BR-RX410 freno a disco idraulico; Rotors: Shimano RT-CL700 Center Lock, 160 mm; Levers: Incluse nei comandi

• Inspect pads, rotors, calipers and the complete cable or hose path. Both levers should feel consistent and both calipers should release without persistent rubbing.

Archived: Wheel size: 700c · Wheels: Velomann V22G, Cerchio: alluminio, 622x24c, 24h · Front tire: Pirelli Cinturato Tanwall, 700×45 · Rear tire: Pirelli Cinturato Tanwall, 700×45

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.

Archived: Headset: Acros per cavi integrati · Handlebar: Velomann Gravel, Alluminio, diametro 31.8 mm, reach 70 mm, drop 130 mm, flare 16 deg Taglie: 400 mm (XS-SM); 420 mm (MD-LG); 440 mm (XL) · Stem: Velomann AL6061, rise -7° Taglie: 70 mm (XS); 80 mm (SM); 90 mm (MD); 100 mm (LG); 110 mm (XL) · Seatpost: Velomann Alluminio, 27,2 mm, arretramento 0 mm lunghezza: 300 mm (XS); 350 mm (SM-LG); 400 mm (XL) · Saddle: Selle Royal SRX Open

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.
