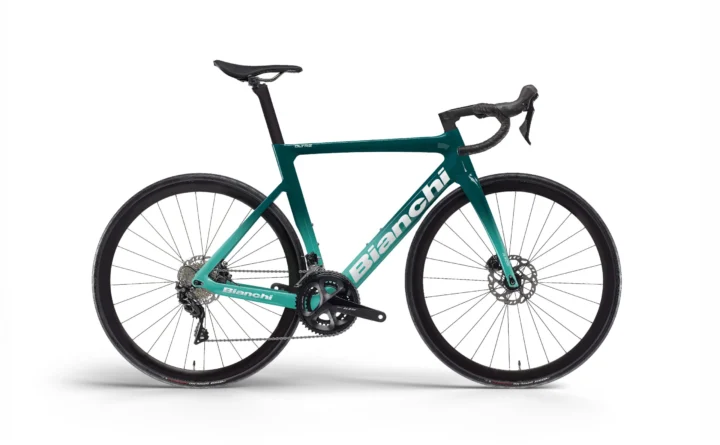

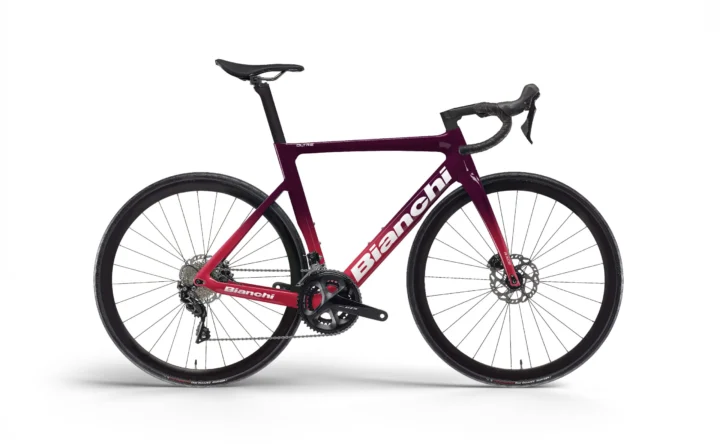

2024 Bianchi Oltre RACE 105 Di2

Archived: Frame: Oltre Race aero carbon, compatible with mechanical/electronic transmissions, compatible with internal cable routing, BB-PressFit 86,5×41, integrated seat clamp, disc brake flat mount, thru-axle 12×142, sizes 44-47-50-53-55-57-59-61cm · Fork: Full Carbon Aero, integrated head , disc brake flat mount, thru axle 12×100 · Carbon Fiber

• Inspect the frame in bright light, especially the head tube, bottom-bracket area, chainstays and clamped surfaces. Look for cracks, ripples, crushed sections or signs of impact.
• Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

Archived: Shifters: Shimano 105 Di2 hydraulic disc brake for road, ST-R7170, BR-R7170, for 160mm rotor · Front derailleur: Shimano 105 Di2 12sp, FD-R7150 · Rear derailleur: Shimano 105 Di2 12sp, RD-R7150 · Crankset: Shimano, 105 12sp, FC-R7100, for rear 12- speed, 50x34T, Crank Length: 165mm-44cm, 170mm-47/53cm, 172.5mm-55/59cm, 175mm-61cm · Bottom bracket: Token Ninja Lite BB4124PS, for 24mm spindle, threaded design · Cassette: Shimano, 105 12sp, CS-R7100, 11-12-13-14-15-17-19-21-24-27-30-34T · Chain: Shimano, 105 12…

• Confirm every shift battery charges and every control operates. Shift through the full cassette under light load while checking pairing, derailleur alignment and response at both ends of the range.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Shimano BR-R7170 Hydraulic disc brake, included in the shifter; Rotors: Shimano RT70 rotor for disc brake center lock, 160mm front and rear

• Squeeze each lever firmly. It should feel consistent and return cleanly. Check levers, hoses and calipers for fluid, inspect pad thickness and contamination, and examine rotors for wear or bending.

Archived: Wheels: Velomann V30R, alloy, 23mm channel, 30mm, profile. 2 to 1 spoke pattern, j-bend spokes, black, HG11 boby, weight : 1790g · Front tire: Vittoria Rubino 28-622 full black G2.0, graphene + silica, 100TPI · Rear tire: Vittoria Rubino 28-622 full black G2.0, graphene + silica, 100TPI

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.

Archived: Headset: ACROS & FSA, for internal cable routing · Handlebar: Velomann Aero Compact, alloy 6061 diam. 31.8mm, reach 74mm, drop 116mm, Size: 400mm-47/53cm, 420mm-55/59cm, 440m-61cm · Stem: Velomann, Alloy 6061, rise – 7°, Ext: 80mm-44cm, 90mm-47/50cm, 100mm-53cm, 110mm-55/57cm, 120mm-59/61cm · Seatpost: Velomann Full Carbon Aeroshape, special Clamp type with alloy head adjustable and reversible +/- 35mm; Lenght: 250mm-44, 300mm-47/50cm, 350mm53/61cm · Saddle: Velomann Mitora139.1, open flow, steels rails 7x7…

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.
