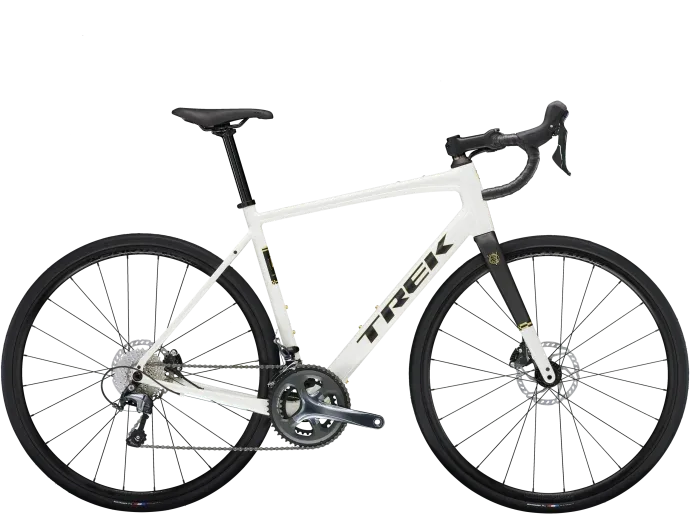

2024 Trek Domane AL 4 Gen 4
Road bicycle from the Velopedia specification archive.
- Original MSRP
- $1,799.99
- Sizes
- 44; 49; 52; 54; 56; 58; 61
- Colors
- Hex Blue to Marianas Blue Fade
- Geometry
- 7 manufacturer sizes
- Archive ID
- 900000675
Recently checked market
2 close matches
Observed used market
Insufficient sample1 close used listing found.
New asking
$1,799.001 current asking price
View market details Move, scroll, tap or type to start the protected update.
Velopedia analysis
What the specifications mean
The 291% cassette range describes the available gearing more clearly than the component-group name alone. Hydraulic disc brakes shift routine service toward pad and rotor condition, fluid leaks and use of the correct bleed fluid. The rims and tires are tubeless-ready, but that label does not confirm the bike is currently set up without tubes; tape, valves, sealant and tire condition still matter.
Gearing
291% cassette range
Calculated from the published 11–32-tooth sprocket span.
Brake service
Hydraulic disc
Pad and rotor condition plus the correct bleed fluid are the primary service checks.
Tire setup
Tubeless-ready
The rims and tires may support tubeless use, but the bike may still be running tubes.
Frame material
Aluminum / alloy
Dents and cracking around welds, pivots and loaded junctions deserve attention.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesBoth levers should feel firm and return cleanly. Check for fluid around the levers and calipers, inspect pad thickness and contamination, and look for worn or bent rotors.Inspect the brakes →
- DrivetrainShift through every gear under light load and measure chain wear. Confirm that the shifter, derailleur, chain and cassette belong to the same 10-speed system.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads. If it is set up tubeless, confirm both tires hold pressure and ask when the sealant was last refreshed.Check wheels and tires →
- Bottom bracketTurn the cranks slowly, feel for rough bearings and check for side-to-side play. Creaking under load deserves investigation but does not identify the source by itself.Inspect the bottom bracket and shell →
Bike-specific inspection checklist 20 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2024 Trek Domane AL 4 Gen 4 · Road · Published sizes: 44; 49; 52; 54; 56; 58; 61
Frame and fork
Inspect the frame and fork →Archived: Frame: 100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, flat mount disc, UDH, 142x12mm thru axle · Fork: Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle · Carbon fiber
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano Tiagra R4720, 10 speed · Front derailleur: Shimano Tiagra 4700, 31.8mm clamp · Rear derailleur: Shimano Tiagra 4700, long cage, 34T max cog · Bottom bracket: Shimano RS501 BSA · Cassette: Shimano HG500, 11-32, 10 speed · Chain: Shimano Tiagra HG54, 10 speed
Brakes
Inspect the brakes →Archived: Brakes: Shimano Tiagra hydraulic disc, flat mount
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c · Rims: Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve · Hubs: (F) Formula RX-512 alloy, 6-bolt, 100x12mm thru axle / (R) Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle · Front tire: Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm · Rear tire: Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm
Controls and contact points
Archived: Headset: Bontrager Headset Expander Plug and Top Cap · Seatpost: 44, 49: Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length / 52, 54, 56, 58, 61: Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length · Saddle: Verse Short, steel rails, 145mm width
Before and during the test ride
Follow the full used-bike inspection order →Interpretation based on the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Frameset
| Frame Construction | 100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, flat mount disc, UDH, 142x12mm thru axle |
|---|---|
| Frame Material | Aluminum |
| Fork | Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle |
| Fork Material | Carbon fiber |
Drivetrain
| Shifters | Shimano Tiagra R4720, 10 speed |
|---|---|
| Front Derailleur | Shimano Tiagra 4700, 31.8mm clamp |
| Rear Derailleur | Shimano Tiagra 4700, long cage, 34T max cog |
| Crankset | 44: Shimano Tiagra 4700, 50/34, 165mm length / 49, 52: Shimano Tiagra 4700, 50/34, 170mm length / 54, 56: Shimano Tiagra 4700, 50/34, 172.5mm length / 58, 61: Shimano Tiagra 4700, 50/34, 175mm length |
| Bottom Bracket | Shimano RS501 BSA |
| Cassette | Shimano HG500, 11-32, 10 speed |
| Chain | Shimano Tiagra HG54, 10 speed |
Brakes
| Brakes | Shimano Tiagra hydraulic disc, flat mount |
|---|
Cockpit & Contact Points
| Headset | Bontrager Headset Expander Plug and Top Cap |
|---|---|
| Handlebar | 44, 49: Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 38cm width / 44: Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop width / 49: Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width / 52: Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 40cm width / 52: Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width / 54, 56: Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 42cm width / 54, 56: Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width / 58, 61: Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 44cm width / 58, 61: Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 44cm control width, 48cm drops width |
| Stem | 44: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length / 49: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length / 52, 54: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length / 56, 58: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length / 61: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length |
| Saddle | Verse Short, steel rails, 145mm width |
| Seatpost | 44, 49: Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length / 52, 54, 56, 58, 61: Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length |
Wheels & Tires
| Hubs | (F) Formula RX-512 alloy, 6-bolt, 100x12mm thru axle / (R) Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle |
|---|---|
| Rims | Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve |
| Front Tire | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm |
| Rear Tire | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm |
| Wheel Size | 700c |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | 44cm | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|
| Seat tube | 390 mm | 440 mm | 475 mm | 500 mm | 525 mm | 548 mm | 576 mm |
| Effective top tube | 507 mm | 516 mm | 530 mm | 542 mm | 554 mm | 567 mm | 586 mm |
| Head tube | 95 mm | 123 mm | 145 mm | 160 mm | 175 mm | 195 mm | 235 mm |
| Head-tube angle | 70.3° | 70.8° | 71.3° | 71.3° | 71.9° | 72° | 72.1° |
| Seat-tube angle | 74.6° | 74.6° | 74.2° | 73.7° | 73.3° | 73° | 72.7° |
| Chainstay / rear center | 420 mm | 425 mm | 420 mm | 420 mm | 420 mm | 425 mm | 425 mm |
| Wheelbase | 983 mm | 1001 mm | 1003 mm | 1010 mm | 1018 mm | 1022 mm | 1038 mm |
| Bottom-bracket drop | 80 mm | 80 mm | 80 mm | 80 mm | 78 mm | 78 mm | 75 mm |
| Reach | 360 mm | 368 mm | 371 mm | 374 mm | 377 mm | 380 mm | 385 mm |
| Stack | 510 mm | 540 mm | 561 mm | 575 mm | 591 mm | 611 mm | 646 mm |
| Standover height | 657 mm | 717 mm | 735 mm | 754 mm | 776 mm | 796 mm | 842 mm |
| Fork offset / rake | 53 mm | 53 mm | 53 mm | 53 mm | 48 mm | 48 mm | 48 mm |
| Trail | 66 mm | 66 mm | 59 mm | 59 mm | 61 mm | 60 mm | 63 mm |
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c | 700c |
Geometry source: Trek first-party OCC sizing data ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
