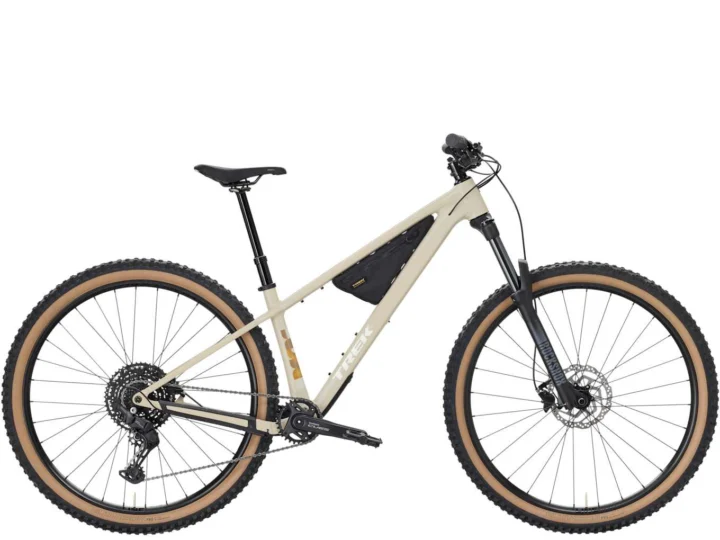

2026 Trek Roscoe 7 Gen 4
Original specifications: Shimano CUES U6000, 10-speed drivetrain · M - 14.53 kg / 32.04 lbs (with TLR sealant, no tubes) published weight · geometry for 5 published sizes.
Selling this bike? Create a shareable bike record
At a glance
- Model year
- 2026
- Category
- Mountain
- Original MSRP
- $1,499.99
- Sizes
- S, M, ML, L, XL
- Colors
- Matte Olive Grey, Buff Beige
- Weight
- M - 14.53 kg / 32.04 lbs (with TLR sealant, no tubes)
- Geometry
- 5 manufacturer sizes
- In this record
- 22 specifications · 8 archived images · original MSRP · geometry
- Archive ID
- 900000750
Original buildAluminum · Shimano CUES U6000, 10-speed
Frameset
| Frame Construction | Alpha Platinum Aluminum, tapered head tube, ZS headset, internal derailleur & dropper post routing, ISCG 05, threaded BB, UDH, 148x12mm thru axle |
|---|---|
| Frame Material | Aluminum |
| Fork | RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 150mm travel |

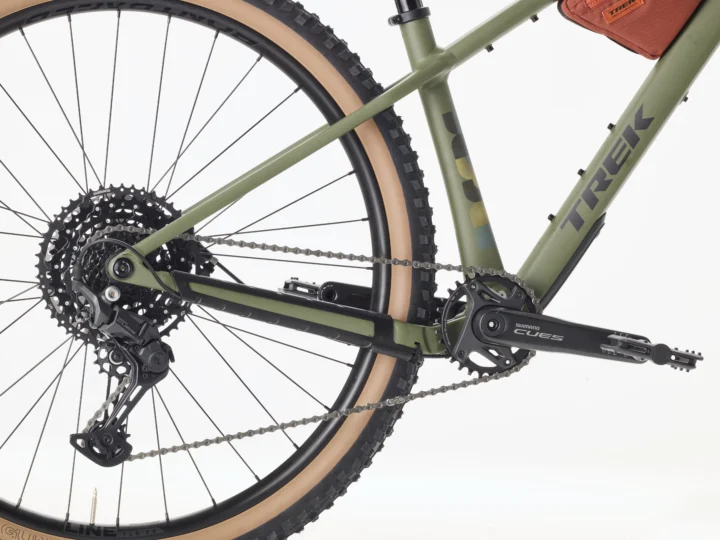

Drivetrain
| Component Group | Shimano CUES U6000, 10-speed |
|---|---|
| Shifters | Shimano U6000, 10 speed |
| Rear Derailleur | Shimano CUES U6000 GS |
| Crankset | Shimano CUES U6000, 30T, 55mm chainline, 170mm length |
| Bottom Bracket | Shimano BB-MT501 BSA |
| Cassette | Shimano CUES LG300, LINKGLIDE, 11-48, 10 speed |
| Chain | Shimano LG500, 9/10/11 speed |
| Pedals | Nylon platform |
Brakes
| Brakes | Shimano MT200 hydraulic disc |
|---|
Cockpit & Contact Points
| Headset | S, M, ML, L, XL: FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown / S, M, ML, L, XL: 1-1/8'' threadless, sealed cartridge bearings |
|---|---|
| Handlebar | S: Bontrager alloy, 31.8mm, 15mm rise, 750mm width / M, ML, L, XL: Bontrager Comp, alloy, 31.8mm, 40mm rise, 780mm width |
| Stem | S: Bontrager Comp, 31.8mm, 7 degree, 35mm length / M, ML, L, XL: Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length |
| Saddle | Bontrager Verse P3, steel rails |
| Seatpost | S: TranzX JD-YSI34, 150mm travel, internal routing, 31.6mm, 456mm length / M, ML: TranzX JD-YSI34, 170mm travel, internal routing, 31.6mm, 500mm length / L, XL: TranzX JD-YSI34, 200mm travel, internal routing, 31.6mm, 565mm length |
Wheels & Tires
| Hubs | (F) Shimano TC500 alloy, centerlock, 110x15mm thru axle / (R) Shimano TC500 alloy, centerlock, 148x12mm thru axle |
|---|---|
| Wheels | Bontrager Line TLR 30 |
| Rims | S: Bontrager Line TLR 30, 27.5'' Tubeless Ready, 32-hole, Presta valve / S: Bontrager Line TLR 30, 27.5'' Tubeless Ready, 28-hole, Presta valve / M, ML, L, XL: Bontrager Line TLR 30, 29'' Tubeless Ready, 28-hole, Presta valve / M, ML, L, XL: Bontrager Line TLR 30, 29'' Tubeless Ready, 32-hole, Presta valve |
| Front Tire | S: Bontrager Gunnison Pro XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40'' / M, ML, L, XL: Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.40'' |
| Rear Tire | S: Bontrager Gunnison Pro XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40'' / M, ML, L, XL: Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.40'' |
Geometry
Frame measurements by size.
Published frame view
Select an available measurement to locate it on the frame.
All geometry measurements5 sizes · 16 measurements
| Measurement | 15.5" (S) | 17.5" (M) | 18.5" (ML) | 19.5" (L) | 21.5" (XL) |
|---|---|---|---|---|---|
| Seat tube | 330 mm | 375 mm | 400 mm | 425 mm | 450 mm |
| Effective top tube | 575 mm | 611 mm | 614 mm | 632 mm | 655 mm |
| Head tube | 90 mm | 100 mm | 105 mm | 120 mm | 145 mm |
| Head-tube angle | 65° | 65° | 65° | 65° | 65° |
| Seat-tube angle | 75° | 75° | 76° | 76° | 77° |
| Actual seat-tube angle | 73.1° | 73.1° | 74.1° | 74.1° | 75.1° |
| Chainstay / rear center | 425 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1139 mm | 1186 mm | 1203 mm | 1224 mm | 1265 mm |
| Bottom-bracket drop | 45 mm | 61 mm | 61 mm | 61 mm | 61 mm |
| Bottom-bracket height | 311 mm | 312 mm | 312 mm | 312 mm | 312 mm |
| Reach | 415 mm | 440 mm | 455 mm | 470 mm | 500 mm |
| Stack | 604 mm | 644 mm | 648 mm | 662 mm | 684 mm |
| Standover height | 714 mm | 735 mm | 740 mm | 740 mm | 740 mm |
| Fork offset / rake | 37 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 125 mm | 125 mm | 125 mm | 125 mm | 125 mm |
| Wheel size | 27.5" | 29" | 29" | 29" | 29" |
Measurements may vary by configuration, wheel size, or frame setting where noted in the published chart.
Gearing
Lower ratios provide more mechanical advantage for climbing. Higher ratios turn the rear wheel farther with each crank revolution.
Parts & serviceability
Find replacement parts

Shimano CN-LG500 11-Speed Chain Silver, 126 Links
126 Links
More parts (3)
Based on the original build. Confirm the model, size and fit before ordering; installed parts may differ. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases.
Bike-specific inspection checklist 21 checks based on 6 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Trek Roscoe 7 Gen 4 · Mountain · Published sizes: S, M, ML, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Alpha Platinum Aluminum, tapered head tube, ZS headset, internal derailleur & dropper post routing, ISCG 05, threaded BB, UDH, 148x12mm thru axle · Fork: RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 150mm travel
Suspension
Evaluate the suspension →Archived: Fork: RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 150mm travel
Drivetrain
Check drivetrain wear →Archived: Group: Shimano CUES U6000, 10-speed · Shifters: Shimano U6000, 10 speed · Rear derailleur: Shimano CUES U6000 GS · Crankset: Shimano CUES U6000, 30T, 55mm chainline, 170mm length · Bottom bracket: Shimano BB-MT501 BSA · Cassette: Shimano CUES LG300, LINKGLIDE, 11-48, 10 speed · Chain: Shimano LG500, 9/10/11 speed
Brakes
Inspect the brakes →Archived: Brakes: Shimano MT200 hydraulic disc
Wheels and tires
Check wheels and tires →Archived: Wheels: Bontrager Line TLR 30 · Hubs: (F) Shimano TC500 alloy, centerlock, 110x15mm thru axle / (R) Shimano TC500 alloy, centerlock, 148x12mm thru axle
Controls and contact points
Archived: Headset: S, M, ML, L, XL: FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown / S, M, ML, L, XL: 1-1/8'' threadless, sealed cartridge bearings · Handlebar: S: Bontrager alloy, 31.8mm, 15mm rise, 750mm width / M, ML, L, XL: Bontrager Comp, alloy, 31.8mm, 40mm rise, 780mm width · Stem: S: Bontrager Comp, 31.8mm, 7 degree, 35mm length / M, ML, L, XL: Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length · Saddle: Bontrager Verse P3, steel rails · Pedals: Nylon platform
Before and during the test ride
Follow the full used-bike inspection order →Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Gallery8 images
Checking current listings…
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
