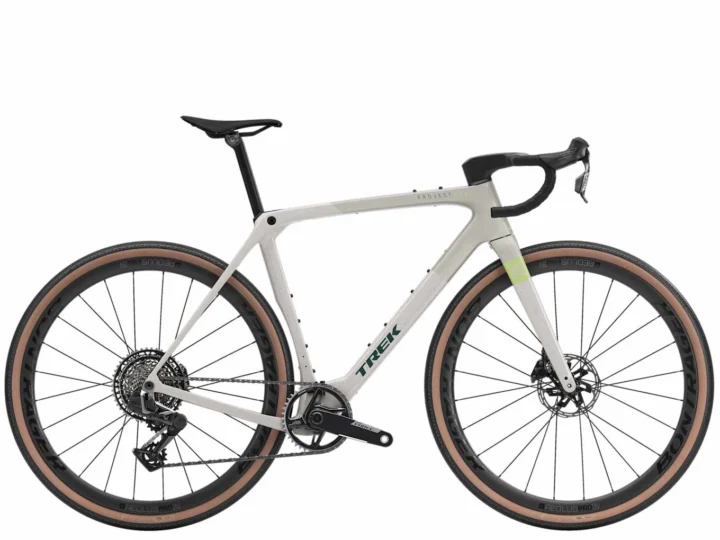

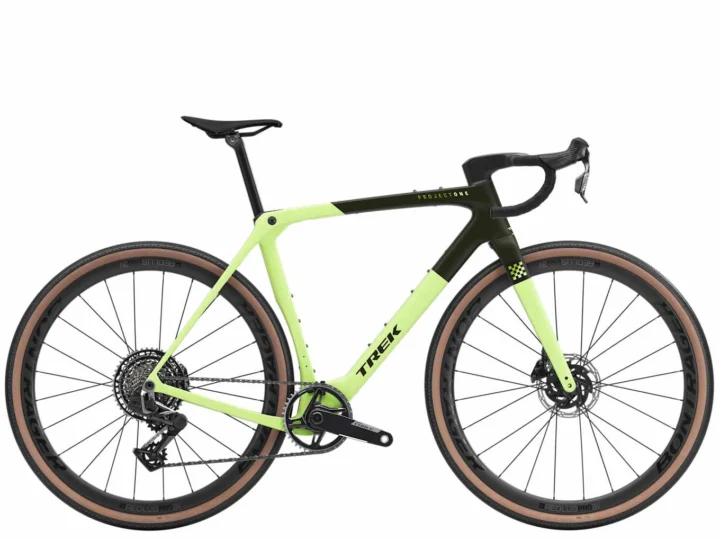

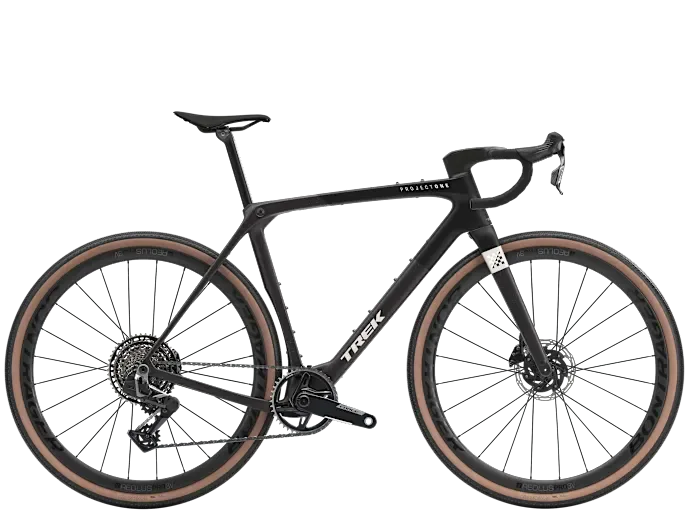

2026 Trek Checkmate SLR 7 AXS

Original specifications: 700c wheels · geometry for 6 published sizes.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #900000175
Model year
2026
Category
Gravel & Cyclocross
Original MSRP
$8,199.99
Sizes
XS, S, M, ML, L, XL
Colors
Trek Black/Juniper Splatter, Matte Hex Blue/Plasma Grey Pearl, Olive Drab/Glowstick, Radioactive Red/Sedona Red, Buff Beige/Supernova Splatter, Era White/Buff Beige
Geometry
6 manufacturer sizes
In this record
19 specifications · 7 archived images · original MSRP · geometry
Campaign
Original buildCarbon fiber · 700c

Manufacturer catalog

Published sizes and colors

6 sizes · 6 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

XSSMMLLXL

Published colors

Trek Black/Juniper SplatterMatte Hex Blue/Plasma Grey PearlOlive Drab/GlowstickRadioactive Red/Sedona RedBuff Beige/Supernova SplatterEra White/Buff Beige
+ 0 more colors + 2 more colors
Buff Beige/Supernova SplatterEra White/Buff Beige

Frameset

Frame Construction800 Series OCLV Carbon, IsoSpeed, hidden fender mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle
Frame MaterialCarbon fiber
ForkCheckmate SLR full carbon, tapered carbon steerer, hidden fender mounts, flat mount disc, 12x100mm thru axle
Fork MaterialCarbon fiber

Drivetrain

ShiftersSRAM Force AXS E1
Rear DerailleurSRAM Force XPLR AXS, 46T max cog
CranksetXS, S: SRAM Force XPLR with AXS Power Meter, 42T, DUB Wide, 165mm length / M, ML: SRAM Force XPLR with AXS Power Meter, 42T, DUB Wide, 170mm length / L, XL: SRAM Force XPLR with AXS Power Meter, 42T, DUB Wide, 172.5mm length
Bottom BracketSRAM DUB Wide, T47 threaded, internal bearing
CassetteSRAM Force XPLR XG-1371, 10-46, 13 speed
ChainSRAM Force E1, 12/13 speed

Cockpit & Contact Points

HeadsetBontrager Headset Expander Plug and Top Cap
HandlebarXS: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 37cm control width, 40cm drop width, 70mm stem length / S: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 80mm stem length / M: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 90mm stem length / ML, L: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 41cm control width, 44cm drop width, 100mm stem length / XL: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 41cm control width, 44cm drop width, 110mm stem length
StemXS: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 37cm control width, 40cm drop width, 70mm stem length / S: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 80mm stem length / M: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 90mm stem length / ML, L: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 41cm control width, 44cm drop width, 100mm stem length / XL: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 41cm control width, 44cm drop width, 110mm stem length
SaddleXS, S, M, ML, L, XL: Bontrager Aeolus Pro, carbon rails, 145mm width / XS, S, M, ML, L, XL: Trek Aeolus Pro, carbon fiber rails, AirLoom lattice 145mm width
SeatpostKVF aero carbon seatpost, 5mm offset, 280mm length

Wheels & Tires

Wheels(F) Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25mm rim width, 100x12mm thru axle / (R) Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25mm rim width, SRAM XD-R driver, 142x12mm thru axle
Front TireBontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42mm
Rear TireBontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42mm
Wheel Size700c

Geometry

6 sizes · 14 measurements

Frame measurements by size.

All geometry measurements6 sizes · 14 measurements
MeasurementXSSMMLLXL
Seat tube373 mm414 mm455 mm500 mm537 mm583 mm
Effective top tube532 mm540 mm555 mm570 mm581 mm592 mm
Head tube91 mm106 mm126 mm150 mm174 mm199 mm
Head-tube angle71°71.3°71.5°71.7°72°72.4°
Seat-tube angle73.9°73.9°73.7°73.5°73.6°73.7°
Chainstay / rear center426 mm426 mm426 mm426 mm426 mm426 mm
Wheelbase1003 mm1011 mm1022 mm1035 mm1045 mm1054 mm
Bottom-bracket drop80 mm80 mm80 mm80 mm80 mm80 mm
Reach380 mm385 mm392 mm399 mm404 mm409 mm
Stack525 mm540 mm560 mm584 mm608 mm633 mm
Standover height718 mm747 mm782 mm816 mm851 mm886 mm
Fork offset / rake49 mm49 mm49 mm49 mm49 mm49 mm
Trail72 mm70 mm68 mm67 mm65 mm62 mm
Wheel size700c700c700c700c700c700c

Dimensions as recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes42T · 10–46T · 13-speed
Lowest0.91:1 Highest4.20:1 Total range460%
Estimated speed At 90 RPM Lowest gear6.8 mph Highest gear31.3 mph

Rear tire: 700C×42.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
