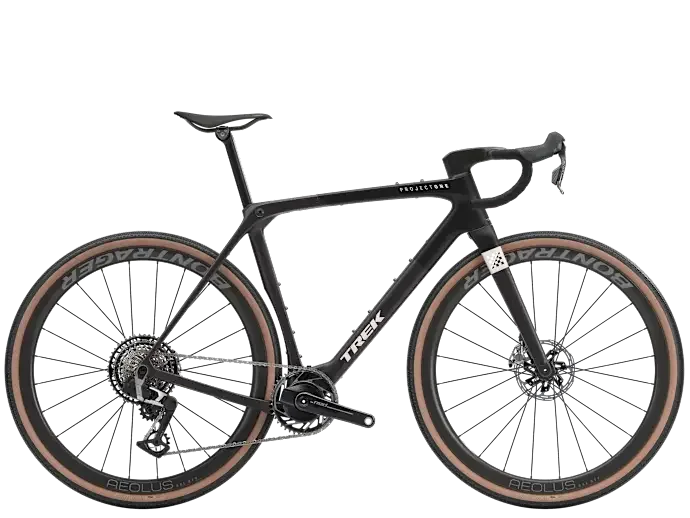

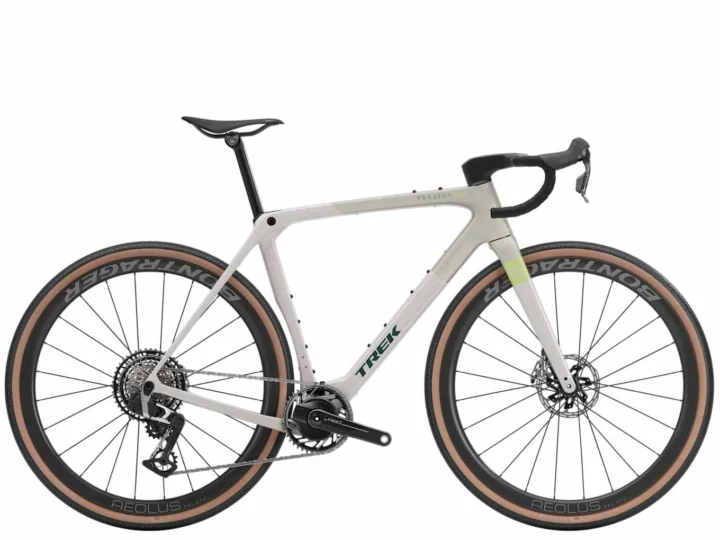

2026 Trek Checkmate SLR 9 AXS
Original specifications: 700c wheels · geometry for 6 published sizes.
Selling this bike? Get the spec link and selling options
At a glance
- Model year
- 2026
- Category
- Gravel & Cyclocross
- Original MSRP
- $11,999.99
- Sizes
- XS, S, M, ML, L, XL
- Colors
- Trek Black/Juniper Splatter, Radioactive Red/Sedona Red, Buff Beige/Supernova Splatter
- Geometry
- 6 manufacturer sizes
- In this record
- 19 specifications · 4 archived images · original MSRP · geometry
- Archive ID
- 900000185
Original buildCarbon fiber · 700c
Frameset
| Frame Construction | 800 Series OCLV Carbon, IsoSpeed, hidden fender mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle |
|---|---|
| Frame Material | Carbon fiber |
| Fork | Checkmate SLR full carbon, tapered carbon steerer, hidden fender mounts, flat mount disc, 12x100mm thru axle |
| Fork Material | Carbon fiber |
Drivetrain
| Shifters | SRAM RED AXS E1 |
|---|---|
| Rear Derailleur | SRAM RED XPLR eTap AXS, 46T max cog |
| Crankset | XS, S: SRAM RED XPLR, power meter, 42T, DUB wide, 165mm length / M, ML: SRAM RED XPLR, power meter, 42T, DUB wide, 170mm length / ML, L, XL: SRAM RED XPLR, power meter, 42T, DUB wide, 172.5mm length / XL: SRAM RED XPLR, power meter, 42T, DUB wide, 175mm length |
| Bottom Bracket | XS, S, M, ML, L, XL: SRAM DUB, T47 threaded, internal bearing / XS, S, M, ML, L, XL: SRAM DUB Wide, T47 threaded, internal bearing |
| Cassette | SRAM XG-1391, 10-46T, 13 speed |
| Chain | SRAM RED E1, 12/13 speed |
Cockpit & Contact Points
| Headset | Bontrager Headset Expander Plug and Top Cap |
|---|---|
| Handlebar | XS: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 37cm control width, 40cm drop width, 70mm stem length / S: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 80mm stem length / M: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 90mm stem length / ML, L: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 41cm control width, 44cm drop width, 100mm stem length / XL: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 41cm control width, 44cm drop width, 110mm stem length |
| Stem | XS: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 37cm control width, 40cm drop width, 70mm stem length / S: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 80mm stem length / M: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 90mm stem length / ML, L: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 41cm control width, 44cm drop width, 100mm stem length / XL: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 41cm control width, 44cm drop width, 110mm stem length |
| Saddle | XS, S, M, ML, L, XL: Aeolus RSL, carbon rails, 145mm width / XS, S: Aeolus RSL, carbon rails, 155mm width |
| Seatpost | KVF aero carbon seatpost, 5mm offset, 280mm length |
Wheels & Tires
| Wheels | (F) Bontrager Aeolus RSL 37V, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle / (R) Bontrager Aeolus RSL 37V, OCLV Carbon, Tubeless Ready, 37mm rim depth, 142x12mm thru axle |
|---|---|
| Front Tire | XS, S, M, ML, L, XL: Bontrager Girona RSL GR, Tubeless Ready, aramid bead, 220 tpi, 700x38mm / XS, S, M, ML, L, XL: Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42mm |
| Rear Tire | XS, S, M, ML, L, XL: Bontrager Girona RSL GR, Tubeless Ready, aramid bead, 220 tpi, 700x38mm / XS, S, M, ML, L, XL: Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42mm |
| Wheel Size | 700c |
Geometry
Frame measurements by size.
Frame diagram
Size
Measurement
Measurement
—
Select an available measurement to locate it on the frame.
All geometry measurements6 sizes · 14 measurements
| Measurement | XS | S | M | ML | L | XL |
|---|---|---|---|---|---|---|
| Seat tube | 373 mm | 414 mm | 455 mm | 500 mm | 537 mm | 583 mm |
| Effective top tube | 532 mm | 540 mm | 555 mm | 570 mm | 581 mm | 592 mm |
| Head tube | 91 mm | 106 mm | 126 mm | 150 mm | 174 mm | 199 mm |
| Head-tube angle | 71° | 71.3° | 71.5° | 71.7° | 72° | 72.4° |
| Seat-tube angle | 73.9° | 73.9° | 73.7° | 73.5° | 73.6° | 73.7° |
| Chainstay / rear center | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1003 mm | 1011 mm | 1022 mm | 1035 mm | 1045 mm | 1054 mm |
| Bottom-bracket drop | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Reach | 380 mm | 385 mm | 392 mm | 399 mm | 404 mm | 409 mm |
| Stack | 525 mm | 540 mm | 560 mm | 584 mm | 608 mm | 633 mm |
| Standover height | 718 mm | 747 mm | 782 mm | 816 mm | 851 mm | 886 mm |
| Fork offset / rake | 49 mm | 49 mm | 49 mm | 49 mm | 49 mm | 49 mm |
| Trail | 72 mm | 70 mm | 68 mm | 67 mm | 65 mm | 62 mm |
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c |
Dimensions as recorded.
Bike-specific inspection checklist 20 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Trek Checkmate SLR 9 AXS · Cyclocross/Gravel · Published sizes: XS, S, M, ML, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: 800 Series OCLV Carbon, IsoSpeed, hidden fender mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle · Fork: Checkmate SLR full carbon, tapered carbon steerer, hidden fender mounts, flat mount disc, 12x100mm thru axle · Carbon fiber
Drivetrain
Check drivetrain wear →Archived: Shifters: SRAM RED AXS E1 · Rear derailleur: SRAM RED XPLR eTap AXS, 46T max cog · Bottom bracket: XS, S, M, ML, L, XL: SRAM DUB, T47 threaded, internal bearing / XS, S, M, ML, L, XL: SRAM DUB Wide, T47 threaded, internal bearing · Cassette: SRAM XG-1391, 10-46T, 13 speed · Chain: SRAM RED E1, 12/13 speed
Brakes
Inspect the brakes →Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c · Wheels: (F) Bontrager Aeolus RSL 37V, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle / (R) Bontrager Aeolus RSL 37V, OCLV Carbon, Tubeless Ready, 37mm rim depth, 142x12mm thru axle
Controls and contact points
Archived: Headset: Bontrager Headset Expander Plug and Top Cap · Seatpost: KVF aero carbon seatpost, 5mm offset, 280mm length · Saddle: XS, S, M, ML, L, XL: Aeolus RSL, carbon rails, 145mm width / XS, S: Aeolus RSL, carbon rails, 155mm width
Before and during the test ride
Follow the full used-bike inspection order →Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Gallery4 images
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
