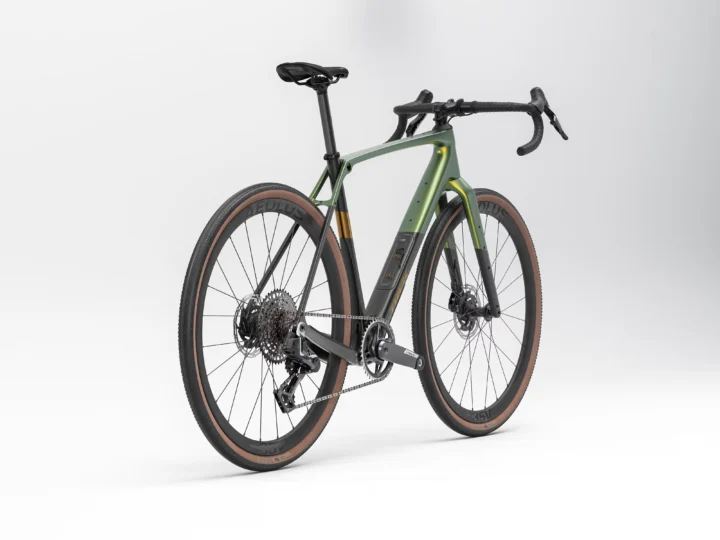

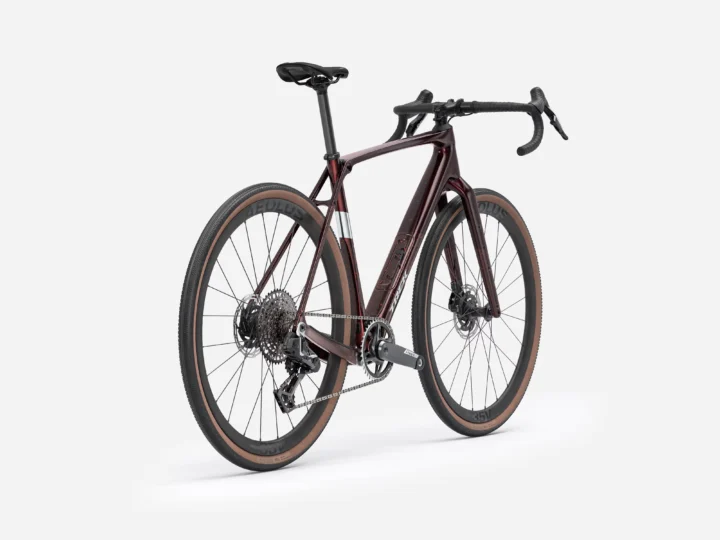

2026 Trek Checkpoint SL 7 AXS Gen 3
Original manufacturer specifications including SRAM Force XPLR AXS E1, 1x13 drivetrain, 700c wheels, ML - 9.33 kg / 20.57 lbs published weight.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2026
- Category
- Gravel & Cyclocross
- Original MSRP
- $5,999.99
- Sizes
- XS, S, M, ML, L, XL
- Colors
- Dark Red/Carbon Red Smoke Splatter
- Weight
- ML - 9.33 kg / 20.57 lbs
- Geometry
- 6 manufacturer sizes · Geometry context
- Record coverage
- 22 preserved details · 8 archived images · original MSRP · preserved geometry
- Archive ID
- 900000806
Frameset
| Frame Construction | 500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden fender mounts, rack mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle |
|---|---|
| Frame Material | Carbon fiber |

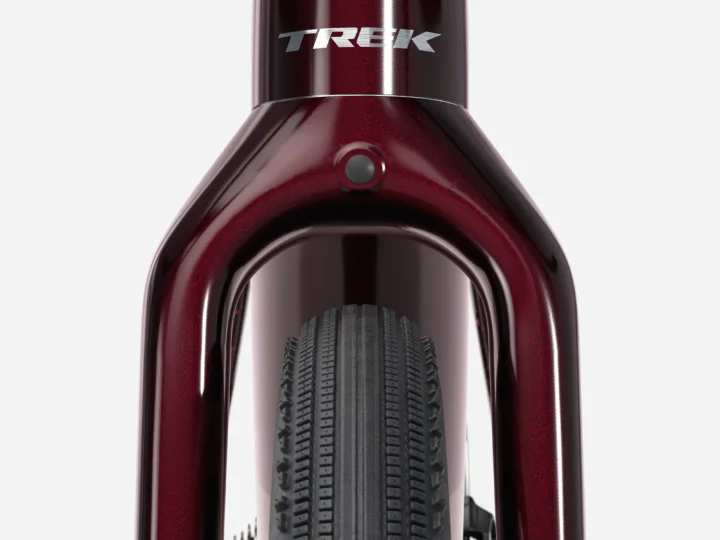

| Fork | Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle |
| Fork Material | Carbon fiber |

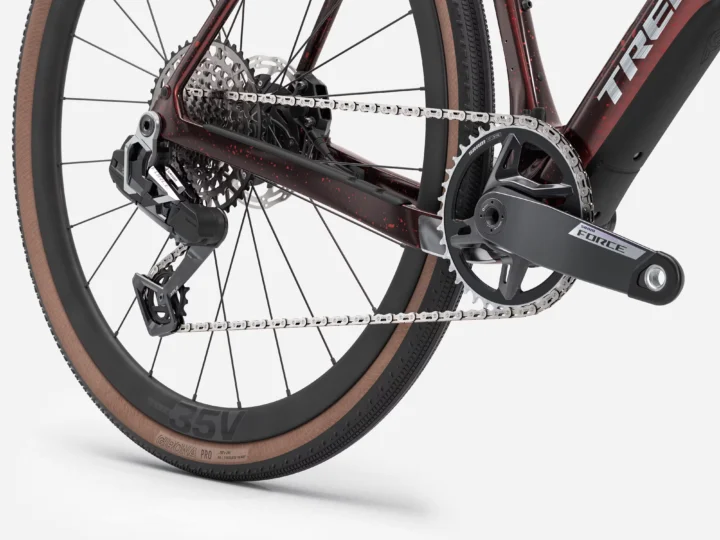

Drivetrain
| Component Group | SRAM Force XPLR AXS E1, 1x13 |
|---|---|
| Shifters | SRAM Force AXS E1 |
| Rear Derailleur | SRAM Force XPLR AXS, 46T max cog |
| Crankset | XS, S: SRAM Force E1 XPLR, 40T, DUB Wide, 160mm length / M, ML: SRAM Force XPLR, 40T, DUB Wide, 165mm length / L, XL: SRAM Force XPLR, 40T, DUB Wide, 170mm length |
| Bottom Bracket | SRAM DUB Wide, T47 threaded, internal bearing |
| Cassette | SRAM Force XPLR XG-1371, 10-46, 13 speed |
| Chain | SRAM Force E1, 12/13 speed |
Brakes
| Brakes | SRAM Force AXS hydraulic disc, flat mount |
|---|
Cockpit & Contact Points
| Headset | Bontrager Headset Expander Plug and Top Cap |
|---|---|

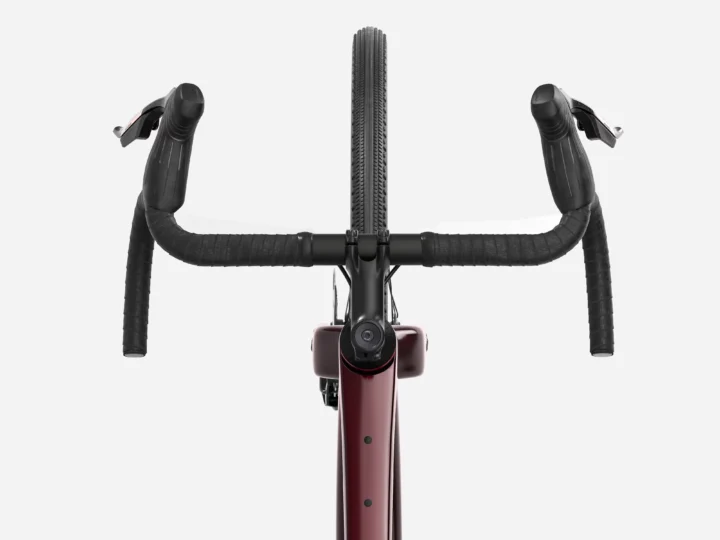

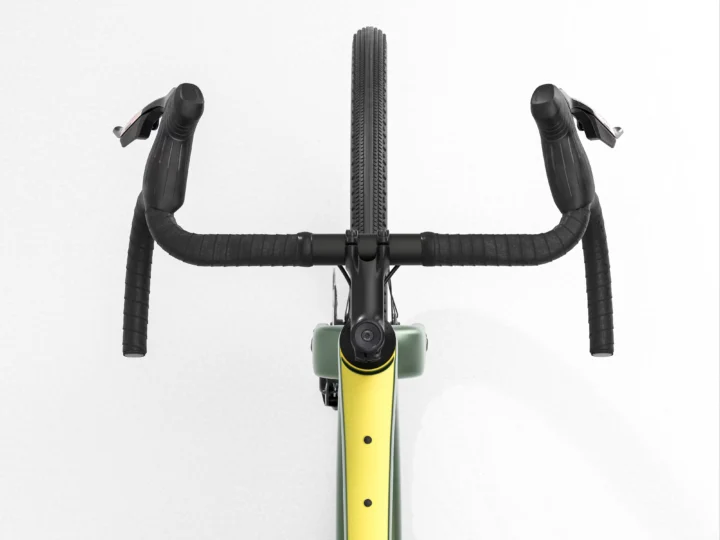

| Handlebar | XS, S: Bontrager Pro Gravel, 40cm width / M, ML: Bontrager Pro Gravel, 42cm width / L: Bontrager Pro Gravel, 44cm width / XL: Bontrager Pro Gravel, 46cm width |
| Stem | XS: Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 70mm length / S, M: Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length / ML, L: Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm length / XL: Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 100mm length |
| Saddle | Verse Short Elite, hollow magnesium rails, 145mm width |
| Seatpost | Bontrager carbon, 27.2mm, 8mm offset, 330mm length |
Wheels & Tires
| Wheels | (F) Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless Ready, 35mm rim depth, 100x12mm thru axle / (R) Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless Ready, 35mm rim depth, SRAM XDR driver, 142x12mm thru axle |
|---|---|
| Front Tire | Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm |
| Rear Tire | Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm |
| Wheel Size | 700c |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XS | S | M | ML | L | XL |
|---|---|---|---|---|---|---|
| Seat tube | 445 mm | 480 mm | 505 mm | 530 mm | 550 mm | 575 mm |
| Effective top tube | 536 mm | 547 mm | 566 mm | 578 mm | 589 mm | 601 mm |
| Head tube | 86 mm | 106 mm | 130 mm | 151 mm | 171 mm | 191 mm |
| Head-tube angle | 71° | 71.4° | 71.6° | 72° | 72.1° | 72.4° |
| Seat-tube angle | 72.7° | 73° | 72.8° | 72.8° | 72.8° | 72.8° |
| Actual seat-tube angle | 74° | 74° | 73.3° | 73.3° | 73.3° | 73.3° |
| Chainstay / rear center | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1013 mm | 1022 mm | 1034 mm | 1042 mm | 1052 mm | 1062 mm |
| Bottom-bracket drop | 76 mm | 76 mm | 76 mm | 76 mm | 76 mm | 76 mm |
| Reach | 380 mm | 386 mm | 391 mm | 397 mm | 402 mm | 408 mm |
| Stack | 535 mm | 556 mm | 579 mm | 601 mm | 620 mm | 640 mm |
| Standover height | 746 mm | 772 mm | 799 mm | 813 mm | 837 mm | 861 mm |
| Fork offset / rake | 49 mm | 49 mm | 49 mm | 49 mm | 49 mm | 49 mm |
| Front center | 595 mm | 604 mm | 615 mm | 624 mm | 634 mm | 643 mm |
| Trail | 71 mm | 68 mm | 68 mm | 64 mm | 64 mm | 62 mm |
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c |
Geometry source: Trek first-party OCC sizing data ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
XS geometry
Archive context: Its trail of 71 mm sits toward the lower-trail end. The seat angle of 72.7° sits toward the more relaxed end. The head angle of 71° sits toward the steeper end.
Compared with 33 distinct cyclocross/gravel geometries in the XS-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XS geometry S geometry
Archive context: The seat angle of 73° sits toward the more relaxed end. The head angle of 71.4° sits toward the steeper end. Its reach of 386 mm sits toward the longer end.
Compared with 80 distinct cyclocross/gravel geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S geometry M geometry
Archive context: The seat angle of 72.8° sits toward the more relaxed end. The head angle of 71.6° sits toward the steeper end. Its reach of 391 mm sits somewhat longer than typical.
Compared with 92 distinct cyclocross/gravel geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M geometry ML geometry
Archive context: The seat angle of 72.8° sits toward the more relaxed end. The head angle of 72° sits toward the steeper end. Its trail of 64 mm sits toward the lower-trail end.
Compared with 92 distinct cyclocross/gravel geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze ML geometry L geometry
Archive context: The head angle of 72.1° sits toward the steeper end. The seat angle of 72.8° sits toward the more relaxed end. Its trail of 64 mm sits somewhat lower than typical.
Compared with 65 distinct cyclocross/gravel geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L geometry XL geometry
Archive context: The head angle of 72.4° sits toward the steeper end. The seat angle of 72.8° sits toward the more relaxed end. Its trail of 62 mm sits somewhat lower than typical.
Compared with 71 distinct cyclocross/gravel geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL geometry Parts & serviceability
Find replacement parts
SRAM Force E1, 12/13 speed
Interpreted as SRAM Force · 13-speed Component family — verify exact version
SRAM Force XPLR XG-1371, 10-46, 13 speed
Interpreted as SRAM Force · 13-speed Exact archived model
Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm
Named tire and published width · wheel diameter from this bicycle
More qualified parts (5)
SRAM DUB Wide, T47 threaded, internal bearing
Named archived component — verify dimensions
SRAM Force XPLR AXS, 46T max cog
Interpreted as SRAM Force · 13-speed · electronic Component family — verify exact version
SRAM Force AXS E1
Interpreted as SRAM Force · 13-speed · electronic Component family — verify exact version
27.2 mm seatpost
Published diameter — verify length and setback
Bontrager Headset Expander Plug and Top Cap
Named archived component — verify dimensions
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesBoth levers should feel firm and return cleanly. Check for fluid around the levers and calipers, inspect pad thickness and contamination, and look for worn or bent rotors.Inspect the brakes →
- DrivetrainConfirm every shift-system battery charges, every shift control works and the derailleur moves cleanly across the cassette. Make sure the matching shift-system charger is included, then measure chain wear and inspect the cassette teeth.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads. If it is set up tubeless, confirm both tires hold pressure and ask when the sealant was last refreshed.Check wheels and tires →
- Bottom bracketTurn the cranks slowly, feel for rough bearings and check for side-to-side play. Creaking under load deserves investigation but does not identify the source by itself.Inspect the bottom bracket and shell →
Bike-specific inspection checklist 20 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Trek Checkpoint SL 7 AXS Gen 3 · Cyclocross/Gravel · Published sizes: XS, S, M, ML, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Carbon fiber · Fork: Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle · Carbon fiber
Drivetrain
Check drivetrain wear →Archived: Group: SRAM Force XPLR AXS E1, 1x13 · Shifters: SRAM Force AXS E1 · Rear derailleur: SRAM Force XPLR AXS, 46T max cog · Crankset: XS, S: SRAM Force E1 XPLR, 40T, DUB Wide, 160mm length / M, ML: SRAM Force XPLR, 40T, DUB Wide, 165mm length / L, XL: SRAM Force XPLR, 40T, DUB Wide, 170mm length · Bottom bracket: SRAM DUB Wide, T47 threaded, internal bearing · Cassette: SRAM Force XPLR XG-1371, 10-46, 13 speed · Chain: SRAM Force E1, 12/13 speed
Brakes
Inspect the brakes →Archived: Brakes: SRAM Force AXS hydraulic disc, flat mount
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c · Front tire: Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm · Rear tire: Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm
Controls and contact points
Archived: Headset: Bontrager Headset Expander Plug and Top Cap · Handlebar: XS, S: Bontrager Pro Gravel, 40cm width / M, ML: Bontrager Pro Gravel, 42cm width / L: Bontrager Pro Gravel, 44cm width / XL: Bontrager Pro Gravel, 46cm width · Seatpost: Bontrager carbon, 27.2mm, 8mm offset, 330mm length · Saddle: Verse Short Elite, hollow magnesium rails, 145mm width
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
