2026 Trek Checkpoint+ SL 7 AXS

Original specifications: 700c wheels · geometry for 5 published sizes.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #900000174
Model year
2026
Category
Gravel & Cyclocross
Original MSRP
$7,999.99
Sizes
S, M, ML, L, XL
Colors
Chameleon Green
Geometry
5 manufacturer sizes
In this record
17 specifications · archived image · original MSRP · geometry
Sponsored affiliate link
Original buildCarbon fiber · 700c

Manufacturer catalog

Published sizes and colors

5 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

SMMLLXL

Published colors

Chameleon Green

Frameset

Frame Construction500 Series OCLV Carbon, TQ drive system, tapered head tube, IsoSpeed, internal routing, flat mount disc, fender mounts, UDH, 142x12mm chamfered thru axle
Frame MaterialCarbon fiber
ForkRockShox Rudy XPLR, Solo Air spring, tapered steerer, 45mm offset, 12x100mm thru axle, 40mm travel

Drivetrain

ShiftersSRAM Force AXS E1
Rear DerailleurSRAM X0 Eagle AXS, T-Type
CranksetS: Praxis Alloy, 165mm length / M, ML: Praxis Alloy, 170mm length / L, XL: Praxis Alloy, 172.5mm length
CassetteSRAM Eagle XS-1295, T-Type, 10-52, 12 speed
ChainSRAM X0 Eagle, T-Type, 12 speed

Cockpit & Contact Points

Headset1-1/8'' threadless, sealed cartridge bearings
HandlebarS: Bontrager Pro Gravel, 40cm width / M, ML: Bontrager Pro Gravel, 42cm width / L: Bontrager Pro Gravel, 44cm width / XL: Bontrager Pro Gravel, 46cm width
StemS, M: Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length / ML, L: Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm length / XL: Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 100mm length
SaddleVerse Short Elite, hollow magnesium rails, 145mm width
SeatpostBontrager carbon, 27.2mm, 8mm offset, 330mm length

Wheels & Tires

Wheels(F) Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless Ready, 35mm rim depth, 100x12mm thru axle / (R) Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless Ready, 35mm rim depth, SRAM XDR driver, 142x12mm thru axle
Front TireBontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm
Rear TireBontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm
Wheel Size700c

Geometry

5 sizes · 14 measurements

Frame measurements by size.

All geometry measurements5 sizes · 14 measurements
MeasurementSMMLLXL
Seat tube480 mm505 mm530 mm550 mm575 mm
Effective top tube551 mm569 mm581 mm593 mm605 mm
Head tube106 mm130 mm151 mm171 mm191 mm
Head-tube angle70.4°70.6°71.1°71.1°71.5°
Seat-tube angle73°72.3°72.3°72.3°72.3°
Chainstay / rear center440 mm440 mm440 mm440 mm440 mm
Wheelbase1034 mm1045 mm1054 mm1064 mm1073 mm
Bottom-bracket drop69 mm69 mm69 mm69 mm69 mm
Reach376 mm382 mm387 mm392 mm398 mm
Stack562 mm585 mm607 mm626 mm647 mm
Standover height775 mm797 mm820 mm839 mm862 mm
Fork offset / rake44 mm44 mm44 mm44 mm44 mm
Trail79 mm78 mm75 mm74 mm72 mm
Wheel size700c700c700c700c700c

Dimensions as recorded.

Gearing

Original gearing is incomplete. Enter your setup to calculate ratios and cadence speeds.

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Chain · Original
SRAM X0 Eagle

T-Type, 12 speed

Retailer offers

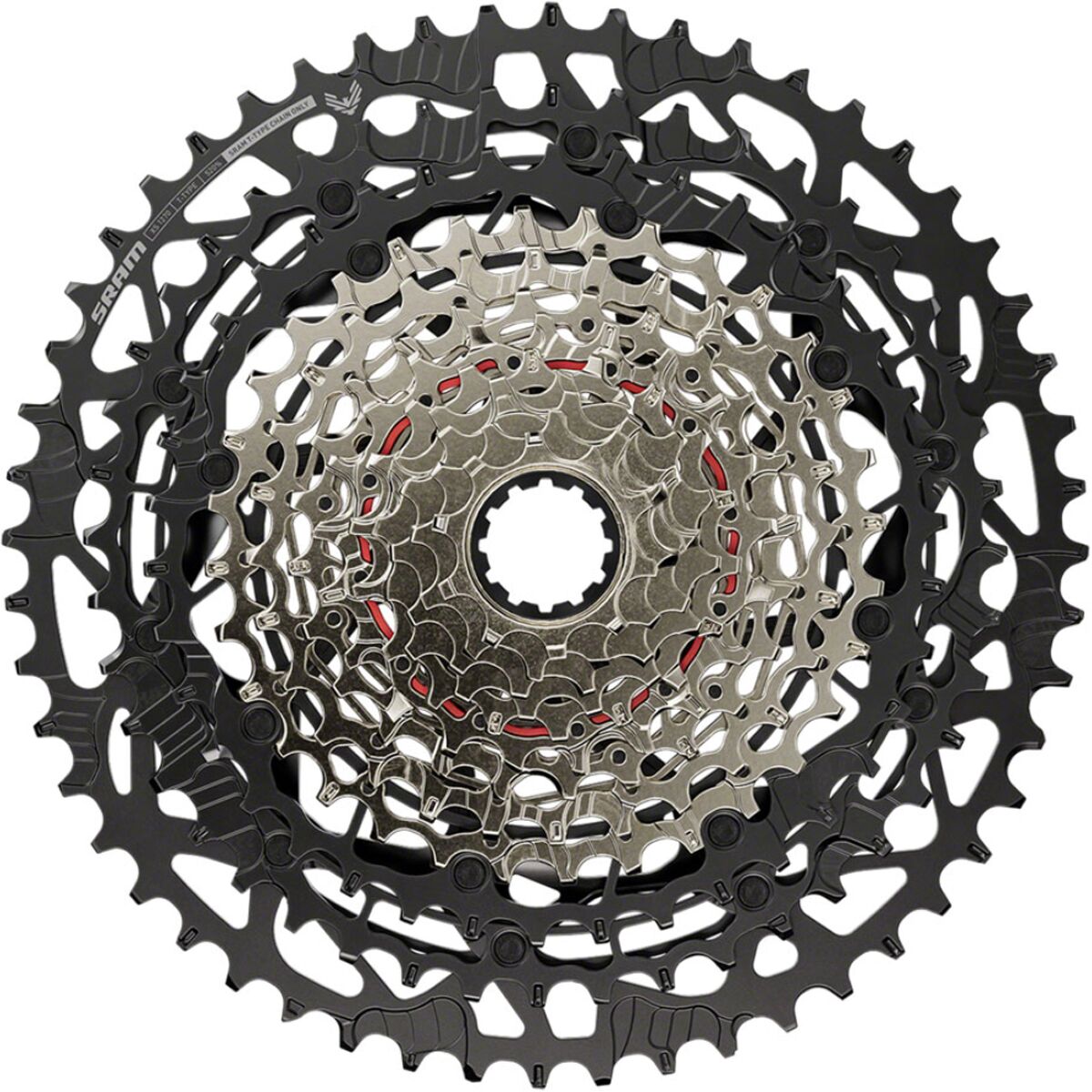

Cassette · Original
SRAM Eagle XS-1295

T-Type, 10-52, 12 speed

Retailer offers
Front tire · Original
Bontrager Girona Pro

Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm

Retailer offers

Vittoria Corsa Pro Control G2.0 Tubeless Tire Gumwall/Black, 700x42

700x42c

Replacement option

More parts (3)Fewer parts
Rear derailleur · Original
SRAM X0 Eagle AXS

T-Type

Shifters · Original
SRAM Force AXS E1
Seatpost · Original
Bontrager carbon

27.2mm, 8mm offset, 330mm length

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm
Rear tire
Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm
Drivetrain
12-speed
Seatpost diameter
27.2 mm
Equipment inspection checks 15 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 15 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: 500 Series OCLV Carbon, TQ drive system, tapered head tube, IsoSpeed, internal routing, flat mount disc, fender mounts, UDH, 142x12mm chamfered thru axle · Fork: RockShox Rudy XPLR, Solo Air spring, tapered steerer, 45mm offset, 12x100mm thru axle, 40mm travel

Archived: Fork: RockShox Rudy XPLR, Solo Air spring, tapered steerer, 45mm offset, 12x100mm thru axle, 40mm travel

Archived: Shifters: SRAM Force AXS E1 · Rear derailleur: SRAM X0 Eagle AXS, T-Type · Crankset: S: Praxis Alloy, 165mm length / M, ML: Praxis Alloy, 170mm length / L, XL: Praxis Alloy, 172.5mm length · Cassette: SRAM Eagle XS-1295, T-Type, 10-52, 12 speed · Chain: SRAM X0 Eagle, T-Type, 12 speed

Archived: Wheel size: 700c · Front tire: Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm · Rear tire: Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm

Controls and contact points

Archived: Headset: 1-1/8'' threadless, sealed cartridge bearings · Handlebar: S: Bontrager Pro Gravel, 40cm width / M, ML: Bontrager Pro Gravel, 42cm width / L: Bontrager Pro Gravel, 44cm width / XL: Bontrager Pro Gravel, 46cm width · Seatpost: Bontrager carbon, 27.2mm, 8mm offset, 330mm length · Saddle: Verse Short Elite, hollow magnesium rails, 145mm width

Archived: Trek Checkpoint+ SL 7 AXS · electric-assist identification
