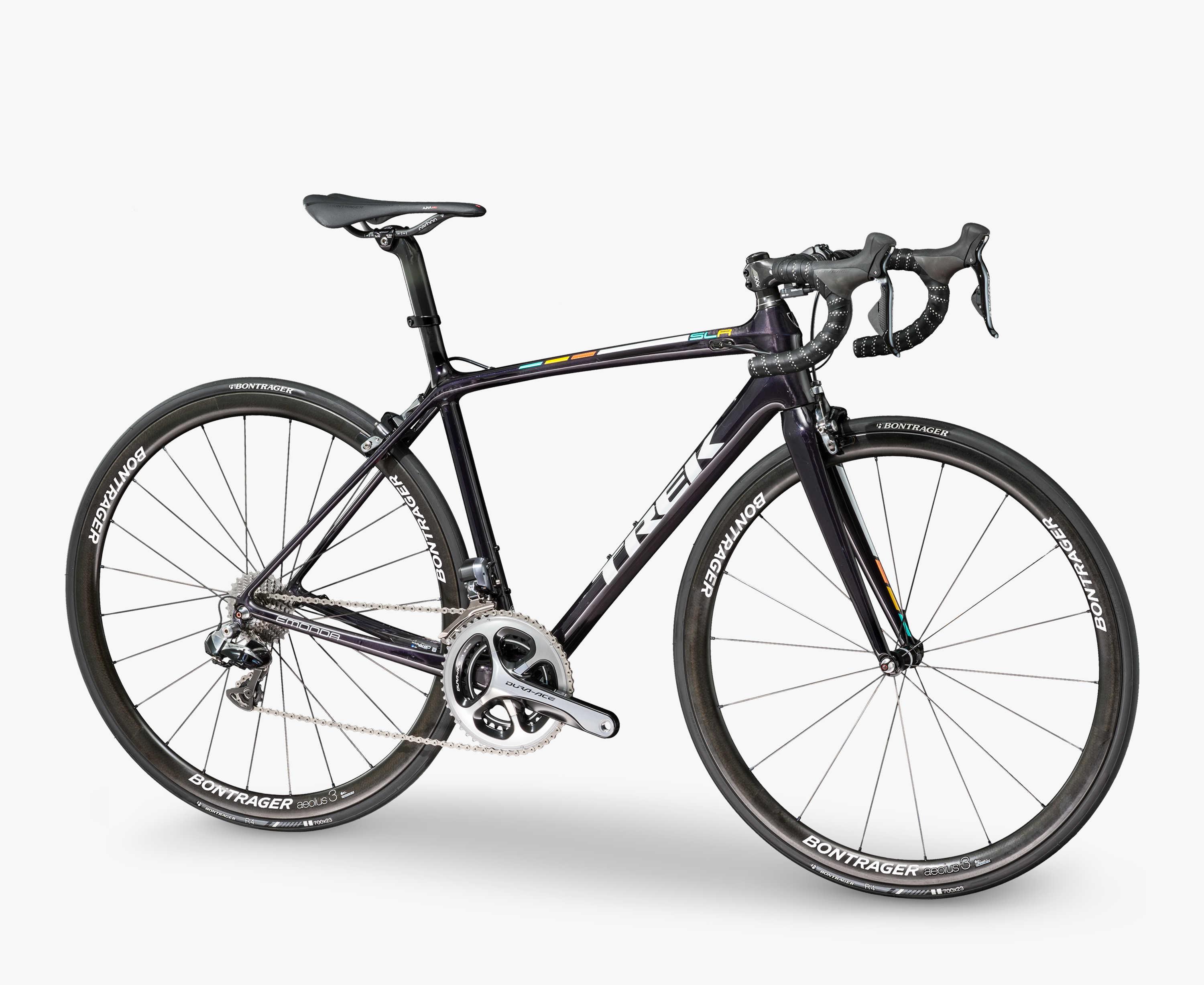

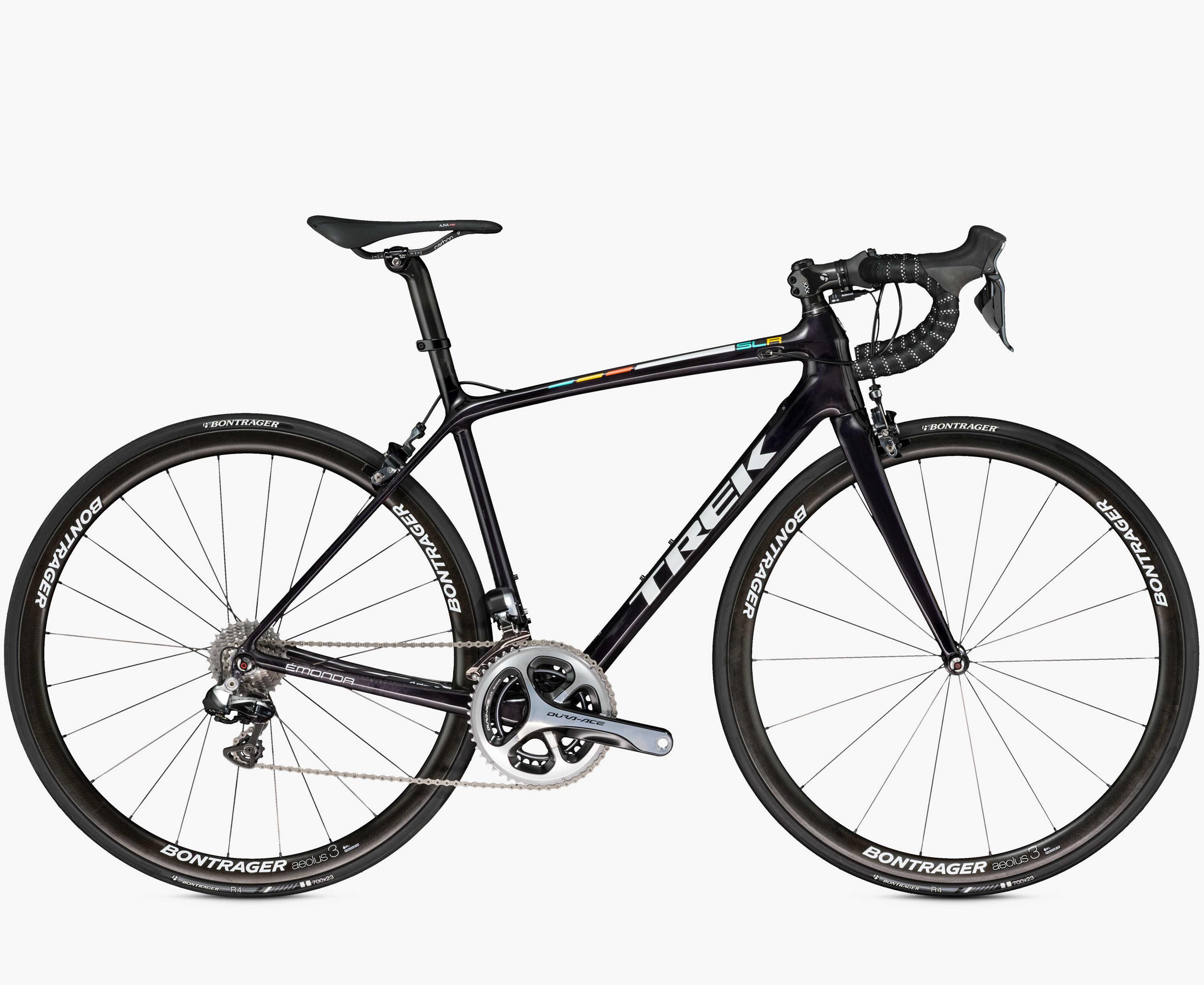

2016 Trek Emonda SLR 9 WSD

Road Double bicycle from the Velopedia specification archive.

Original MSRP
$11,499.99
Sizes
47, 50, 52, 54, 56cm
Colors
Purple Smoke
Archive ID
1569093

Frameset

Frame ConstructionUltralight 700 Series OCLV Carbon, ride-tuned performance tube optimization, E2 tapered head tube, BB90, internal cable routing, DuoTrap S compatible, Ride Tuned seatmast
Frame MaterialCarbon Fiber
Fork MaterialCarbon Fiber

Drivetrain

Component GroupShimano Dura Ace Di2
ShiftersShimano Dura-Ace Di2, 11 speed
Front DerailleurShimano Dura-Ace Di2
Rear DerailleurShimano Dura-Ace Di2
CranksetShimano Dura-Ace, 50/34 (compact)
Bottom BracketBB90
Rear CogsShimano Dura-Ace, 11-28, 11 speed
ChainShimano Dura-Ace

Brakes

BrakesBontrager Speed Stop, direct mount

Cockpit & Contact Points

HeadsetCane Creek AER upper, cartridge bearing lower, sealed, 1-1/8" top, 1.5" bottom
HandlebarBontrager Race X Lite IsoZone, OCLV Carbon, VR-SF shallow drop, WSD sized, 31.8mm
StemBontrager XXX, OCLV Carbon, 31.8mm, 7 degree, w/Blendr computer & light mounts
SaddleBontrager Ajna Pro WSD, carbon rails
SeatpostBontrager Ride Tuned carbon seatmast cap, 20mm offset

Wheels & Tires

HubsBontrager Aeolus 3
RimsBontrager Aeolus 3 D3 Tubeless Ready
Front TireBontrager R4 Hard-Case Lite, 220tpi, aramid bead, 700x23c
Wheel Size700c
