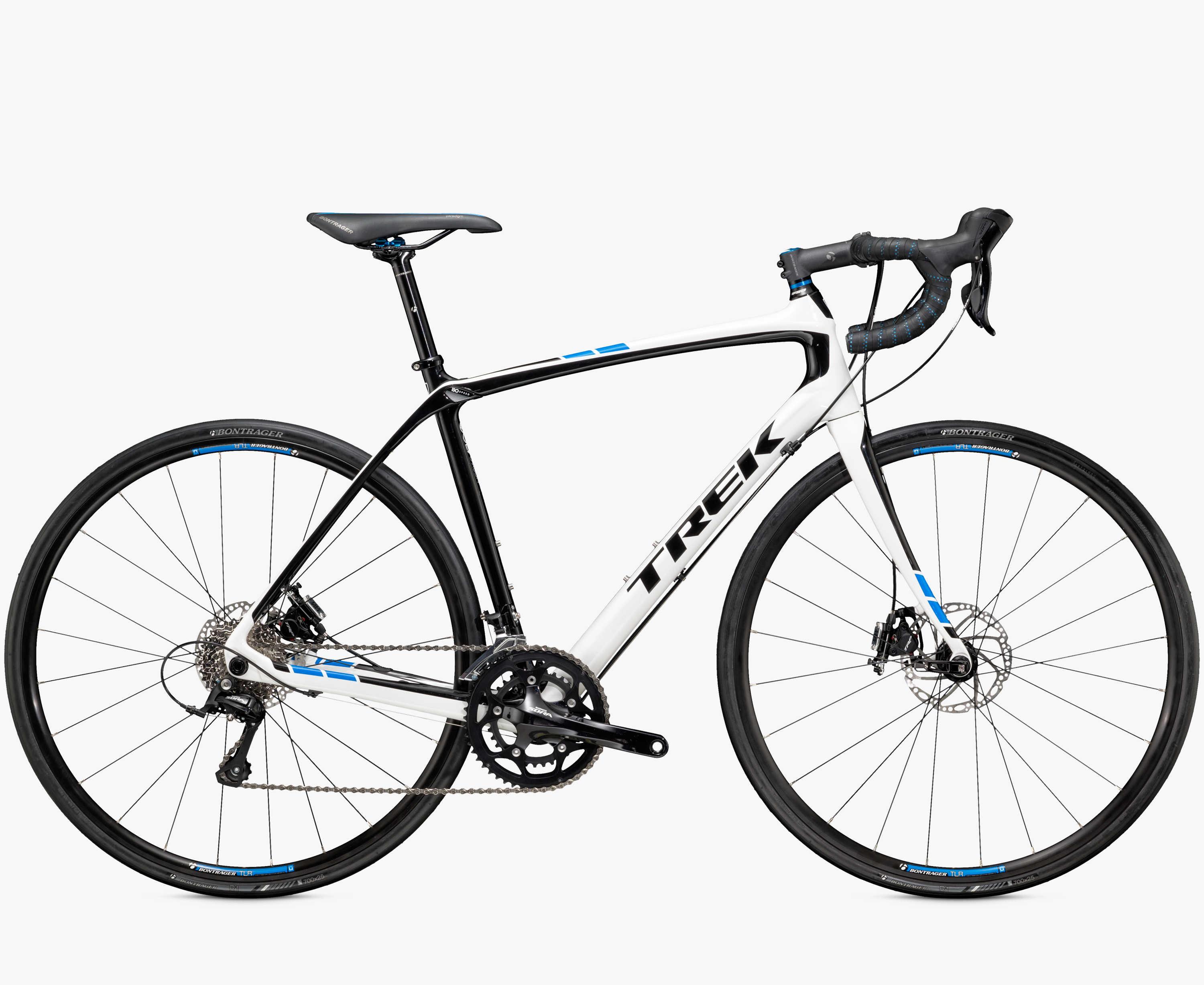

2016 Trek Domane 4.0 Disc

Archived: 2016 Trek Domane 4.0 Disc · Road Double · Published sizes: 50, 52, 54, 56, 58, 60, 62cm

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: 400 Series OCLV Carbon, IsoSpeed, Power Transfer Construction, disc balanced post mount, 142x12 Closed Convert dropout, hidden fender mounts, E2 tapered head tube, BB90, DuoTrap compatible, 3S chain keeper · Fork: IsoSpeed

• Inspect the frame in bright light, especially the head tube, bottom-bracket area, chainstays and clamped surfaces. Look for cracks, ripples, crushed sections or signs of impact.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.
• Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

Archived: Group: Shimano Sora · Shifters: Shimano Sora, 9 speed · Front derailleur: Shimano Sora · Rear derailleur: Shimano Sora · Crankset: Shimano Sora, 50/34 (compact) · Bottom bracket: BB90 · Rear cogs: Shimano HG50, 11-32, 9 speed · Chain: KMC X9

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: TRP HY/RD cable/hydro disc, 160mm rotors

• Check both cables and housings for corrosion, fraying or drag. Confirm each caliper releases cleanly, then inspect pad thickness, rotor wear and rotor alignment.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

Archived: Wheel size: 700c · Rims: Bontrager TLR disc · Hubs: Bontrager disc · Front tire: Bontrager R1 Hard-Case Lite, 700x25c

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.
• Confirm whether the bike is actually set up tubeless, whether both tires hold pressure, and when sealant and rim tape were last serviced.

Archived: Headset: FSA Integrated, sealed cartridge bearings, 1-1/8" top, 1.5" bottom · Handlebar: Bontrager Race Lite IsoZone, VR-CF, 31.8mm · Stem: Bontrager Elite, 31.8mm, 7 degree, w/Blendr computer & light mounts · Seatpost: Bontrager alloy, 2-bolt head, 27.2mm, 8mm offset · Saddle: Bontrager Paradigm 1

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
