2016 Trek 7.2 FX WSD

Original specifications: Shimano Acera · 8-speed rear derailleur · 700c wheels.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #1041822
Model year
2016
Category
City & Commuter
Original MSRP
$489.99
Sizes
13, 15, 17, 19" / Stagger 15, 17.5, 20"
Colors
Matte Charcoal, Seeglass Crystal White
In this record
19 specifications · 6 archived images · original MSRP
Model history 10 other years

Browse other years

Compare side by side

Identification clues

2016 archived details

Published colors
Matte Charcoal, Seeglass Crystal White
Frame
Aluminum
Original equipment
Shimano mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildAluminum · Shimano mix · 700c

Manufacturer catalog

Published sizes and colors

6 sizes · 2 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

13151719" / Stagger 1517.520"

Published colors

Matte CharcoalSeeglass Crystal White

Frameset

Frame ConstructionWSD FX Alpha Silver Aluminum, DuoTrap S compatible, rack & fender mounts
Frame MaterialAluminum

Drivetrain

Component GroupShimano mix
ShiftersShimano Altus EF51, 8 speed
Front DerailleurShimano
Rear DerailleurShimano Acera
CranksetShimano M131, 48/38/28 w/chainguard
Rear CogsShimano HG31, 11-32, 8 speed
ChainKMC Z7

Brakes

BrakesTektro alloy linear-pull

Cockpit & Contact Points

HeadsetVP Slimstak, sealed semi-cartridge bearings
HandlebarBontrager Low Riser alloy, 25.4mm, 15mm rise
StemBontrager Comp, 25.4mm, 10 degree
SaddleBontrager SSR WSD
SeatpostBontrager SSR, 2-bolt head, 27.2mm, 12mm offset

Wheels & Tires

HubsBontrager
RimsBontrager
Front TireBontrager H2 Hard-Case Lite w/puncture resistant belt, 700x35c
Wheel Size700c

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

Published build48/38/28T · 11–32T · 8-speed
Lowest0.88:1 Highest4.36:1 Total range499%
Estimated speed At 90 RPM Lowest gear6.4 mph Highest gear31.8 mph

Uses front tire 700C×35; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Front tire · Original
Bontrager H2 Hard-Case Lite w/puncture resistant belt

700x35c

Cassette / rear cogs · Original
Shimano HG31

11-32, 8 speed

More parts (7)Fewer parts
Brake pads · Original
Tektro alloy linear-pull
Saddle · Original
Bontrager SSR WSD
Crankset · Original
Shimano M131

48/38/28 w/chainguard

Rear derailleur · Original
Shimano Acera
Shifters · Original
Shimano Altus EF51

8 speed

Stem · Original
Bontrager Comp

25.4mm, 10 degree

Seatpost · Original
Bontrager SSR

2-bolt head, 27.2mm, 12mm offset

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Bontrager H2 Hard-Case Lite w/puncture resistant belt, 700x35c
Drivetrain
8-speed
Seatpost diameter
27.2 mm
Equipment inspection checks 9 checks based on 5 archived component groups Open equipment checksClose equipment checks
0 of 9 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: WSD FX Alpha Silver Aluminum, DuoTrap S compatible, rack & fender mounts

Archived: Group: Shimano mix · Shifters: Shimano Altus EF51, 8 speed · Front derailleur: Shimano · Rear derailleur: Shimano Acera · Crankset: Shimano M131, 48/38/28 w/chainguard · Rear cogs: Shimano HG31, 11-32, 8 speed · Chain: KMC Z7

Archived: Brakes: Tektro alloy linear-pull

Archived: Wheel size: 700c · Rims: Bontrager · Hubs: Bontrager · Front tire: Bontrager H2 Hard-Case Lite w/puncture resistant belt, 700x35c

Controls and contact points

Archived: Headset: VP Slimstak, sealed semi-cartridge bearings · Handlebar: Bontrager Low Riser alloy, 25.4mm, 15mm rise · Stem: Bontrager Comp, 25.4mm, 10 degree · Seatpost: Bontrager SSR, 2-bolt head, 27.2mm, 12mm offset · Saddle: Bontrager SSR WSD

My Garage

Velopedia

Enter your email and Velopedia will send a private sign-in link. No password required.

Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.

This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.

Add fit, maintenance and buyer detailsOptional · five additional fields

Your contribution goes directly to Velopedia’s private review queue. We’ll email an optional confirmation link plus a private edit and withdrawal link, but you do not need to confirm your email before an administrator can review or approve the submission.

Already contributed? Send me a fresh private edit link

For privacy, Velopedia shows the same confirmation whether or not an experience exists.

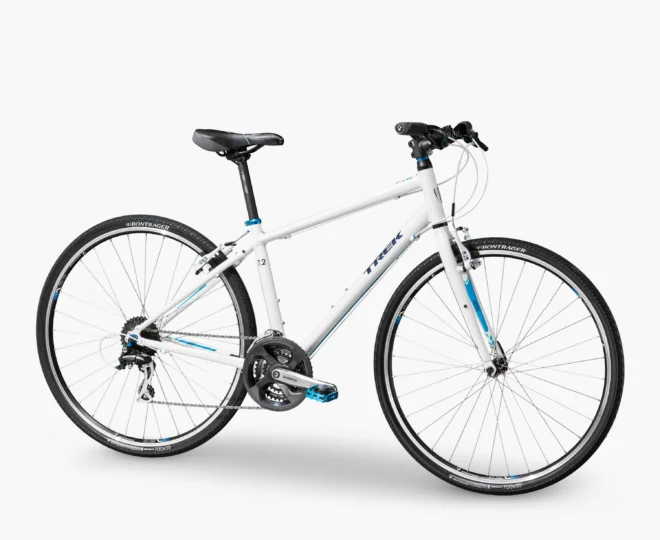

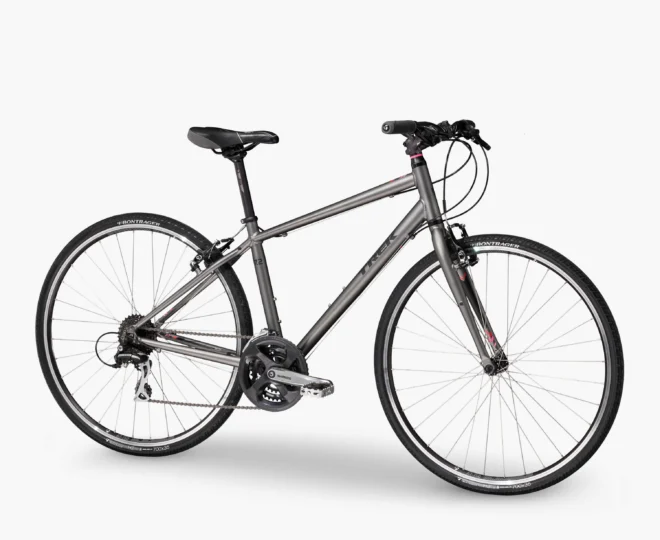

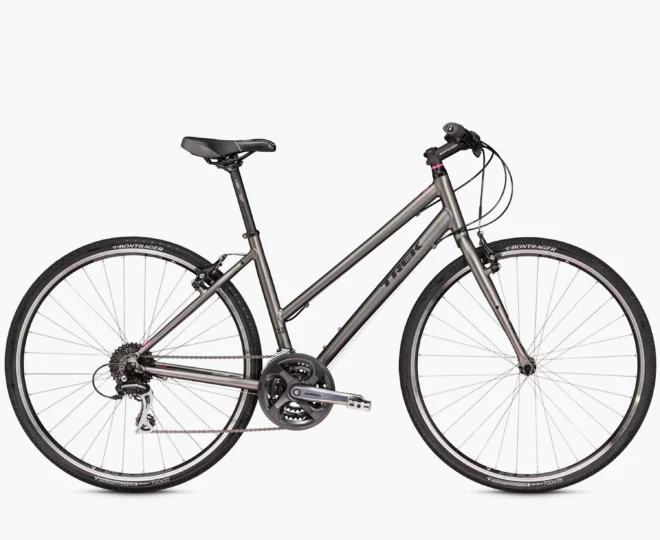

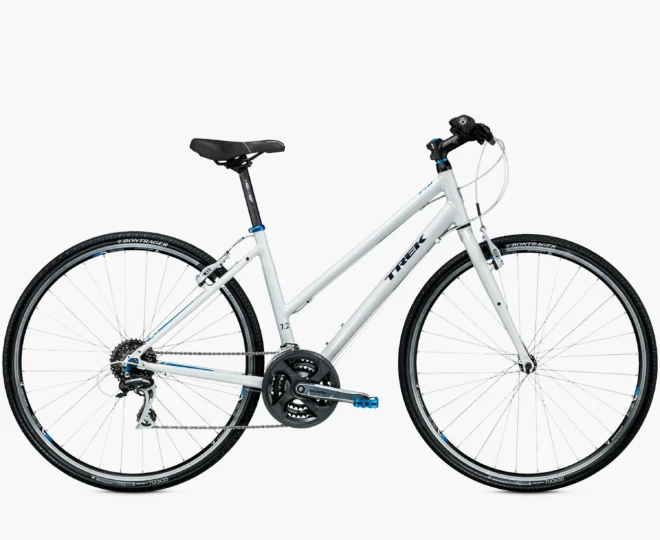

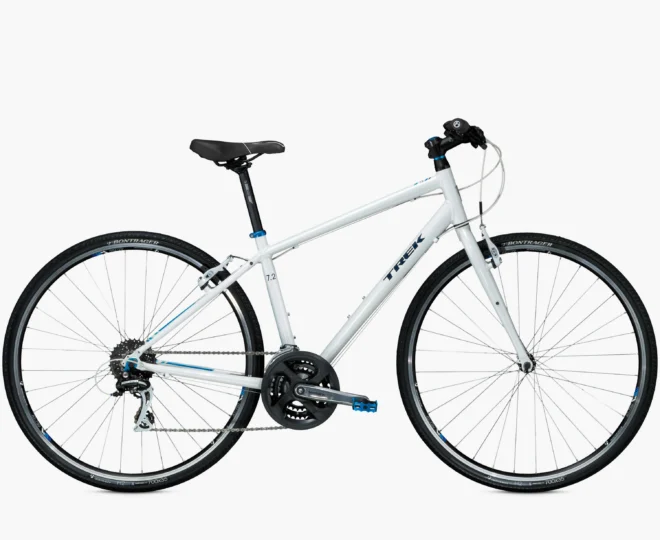

Gallery6 images
