At a glance
Archive #9258483- Model year
- 2014
- Sizes
- 13 in, 15 in, 15 in L, 17 in, 17.5 in L, 19 in, 20 in L
- Colors

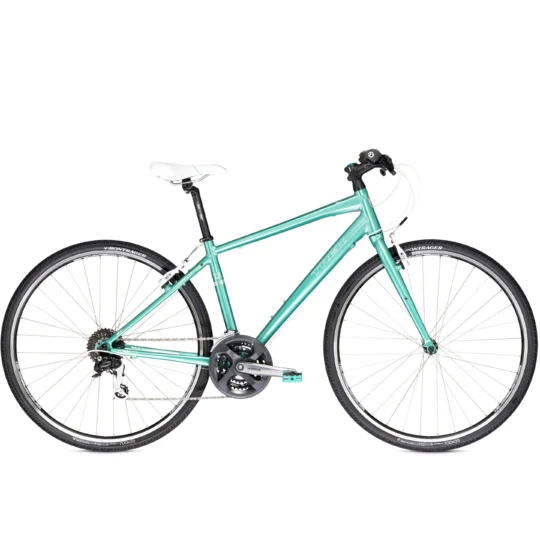

- Tidal Green, Trek Charcoal
- In this record
- 16 specifications · 3 archived images
Model history 10 other years
Browse other years
Compare side by side
Identification clues
2014 archived details
- Published colors
- Tidal Green, Trek Charcoal
- Frame
- FX Alpha Gold Aluminum
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildFX Alpha Gold Aluminum
Frameset
| Frame Material | FX Alpha Gold Aluminum |
|---|---|
| Fork | Hi-Ten steel |
Drivetrain
| Shifters | Shimano Altus, 8 speed |
|---|---|
| Front Derailleur | Shimano M191 |
| Rear Derailleur | Shimano Alivio |
| Crankset | Shimano M131 48/38/28t |
| Cassette | Shimano HG31 11-32, 8 speed |
| Pedals | Nylon body w/alloy cage |
Brakes
| Brakes | Alloy Linear Pull |
|---|
Cockpit & Contact Points
| Headset | Slimstak |
|---|---|
| Handlebar | Bontrager Low Riser |
| Stem | Bontrager SSR 25.4mm |
| Saddle | Bontrager SSR WSD |
| Seatpost | Bontrager SSR 27.2mm |
Wheels & Tires
| Rims | Bontrager AT-650 Rims |
|---|---|
| Front Tire | Bontrager H2 Hard-Case Lite |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
Speed unavailable: wheel or tire size is missing or unclear.
Add your rear tire size to calculate speedHow it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
8 speed
More parts (6)Fewer parts
8 speed
Based on the original build. Check fit and installed parts before ordering.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- Bontrager H2 Hard-Case Lite
- Drivetrain
- 8-speed
- Seatpost diameter
- 27.2 mm
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: FX Alpha Gold Aluminum · Fork: Hi-Ten steel
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano Altus, 8 speed · Front derailleur: Shimano M191 · Rear derailleur: Shimano Alivio · Crankset: Shimano M131 48/38/28t · Cassette: Shimano HG31 11-32, 8 speed
Brakes
Inspect the brakes →Archived: Brakes: Alloy Linear Pull
Wheels and tires
Check wheels and tires →Archived: Rims: Bontrager AT-650 Rims · Front tire: Bontrager H2 Hard-Case Lite
Controls and contact points
Archived: Headset: Slimstak · Handlebar: Bontrager Low Riser · Stem: Bontrager SSR 25.4mm · Seatpost: Bontrager SSR 27.2mm · Saddle: Bontrager SSR WSD · Pedals: Nylon body w/alloy cage
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Gallery3 images
No recent price sample is available for this bike. Check eBay for matching listings.
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
