Uses front tire 700C×23; rear size isn’t listed.
Velopedia Bicycle Archive

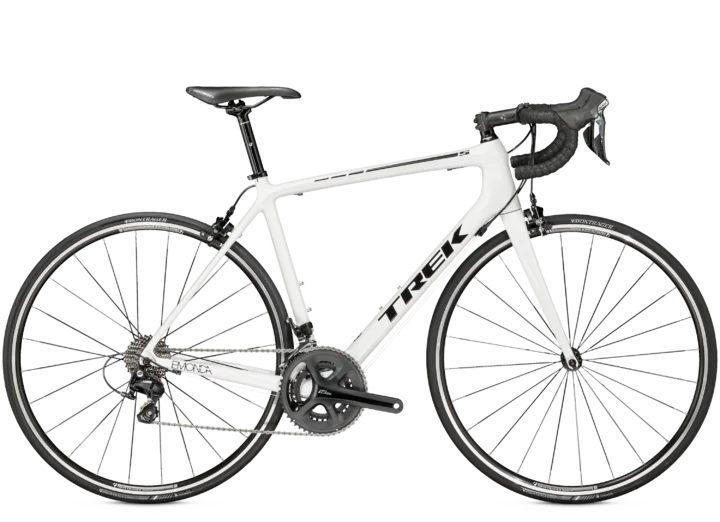

2015 Trek Émonda S 5
Original specifications: Shimano 105 drivetrain · 700c wheels.
Planning to sell? Draft your listing
At a glance
Archive #1202112- Model year
- 2015
- Category
- Road
- Original MSRP
- $2,099.99
- Sizes
- 44, 47, 50, 52, 54, 56, 58, 60, 62cm H2
- Colors
- Matte Trek Black/Fastback Orange, Crystal White/Trek Black
- In this record
- 22 specifications · 2 archived images · original MSRP
Model history 1 other year
Browse other years
Compare side by side
Identification clues
2015 archived details
- Published colors
- Matte Trek Black/Fastback Orange, Crystal White/Trek Black
- Frame
- Carbon Fiber
- Original equipment
- Shimano 105
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildCarbon Fiber · Shimano 105 · 700c
Frameset
| Frame Construction | Ultralight 300 Series OCLV Carbon, ride-tuned performance tube optimization, E2, BB86.5, 3S chain keeper, DuoTrap compatible |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | Émonda carbon, E2 |
| Fork Material | Carbon Fiber |
Drivetrain
| Component Group | Shimano 105 |
|---|---|
| Shifters | Shimano 105, 11 speed |
| Front Derailleur | Shimano 105 |
| Rear Derailleur | Shimano 105 |
| Crankset | Shimano 105, 50/34 (compact) |
| Bottom Bracket | BB86.5 |
| Rear Cogs | Shimano 105, 11-28, 11 speed |
| Chain | Shimano 105 |
Brakes
| Brakes | Shimano 105 |
|---|
Cockpit & Contact Points
| Headset | Integrated, cartridge bearings, sealed, 1-1/8" top, 1.5" bottom |
|---|---|
| Handlebar | Bontrager Race, VR-C, 31.8mm |
| Stem | Bontrager Race Lite, 31.8mm, 7 degree |
| Saddle | Bontrager Paradigm 1 |
| Seatpost | Bontrager Alloy, 2-bolt head, 27.2mm, 8mm offset |
Wheels & Tires
| Hubs | Bontrager alloy, Bontrager alloy |
|---|---|
| Rims | Bontrager Tubeless Ready |
| Front Tire | Bontrager R1 Hard-Case Lite, 700x23c |
| Wheel Size | 700c |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Shimano SLX/105 CN-HG601 11-Speed Chain
Replacement option
700x23c

Vittoria Rubino Pro G2.0 Clincher Tire Black, 700x23
700x23c
Replacement option
11-28, 11 speed
More parts (7)Fewer parts
11 speed
Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.VR-C, 31.8mm
31.8mm, 7 degree
2-bolt head, 27.2mm, 8mm offset
Based on the original build. Check fit and installed parts before ordering.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- Bontrager R1 Hard-Case Lite, 700x23c
- Drivetrain
- 11-speed
- Seatpost diameter
- 27.2 mm
- Bottom bracket / shell
- BB86.5
Equipment inspection checks 11 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: Ultralight 300 Series OCLV Carbon, ride-tuned performance tube optimization, E2, BB86.5, 3S chain keeper, DuoTrap compatible · Fork: Émonda carbon, E2 · Carbon Fiber
Drivetrain
Check drivetrain wear →Archived: Group: Shimano 105 · Shifters: Shimano 105, 11 speed · Front derailleur: Shimano 105 · Rear derailleur: Shimano 105 · Crankset: Shimano 105, 50/34 (compact) · Bottom bracket: BB86.5 · Rear cogs: Shimano 105, 11-28, 11 speed · Chain: Shimano 105
Brakes
Inspect the brakes →Archived: Brakes: Shimano 105
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c · Rims: Bontrager Tubeless Ready · Hubs: Bontrager alloy, Bontrager alloy · Front tire: Bontrager R1 Hard-Case Lite, 700x23c
Controls and contact points
Archived: Headset: Integrated, cartridge bearings, sealed, 1-1/8" top, 1.5" bottom · Handlebar: Bontrager Race, VR-C, 31.8mm · Stem: Bontrager Race Lite, 31.8mm, 7 degree · Seatpost: Bontrager Alloy, 2-bolt head, 27.2mm, 8mm offset · Saddle: Bontrager Paradigm 1
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Gallery2 images
No recent price sample is available for this bike. Check eBay for matching listings.
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
