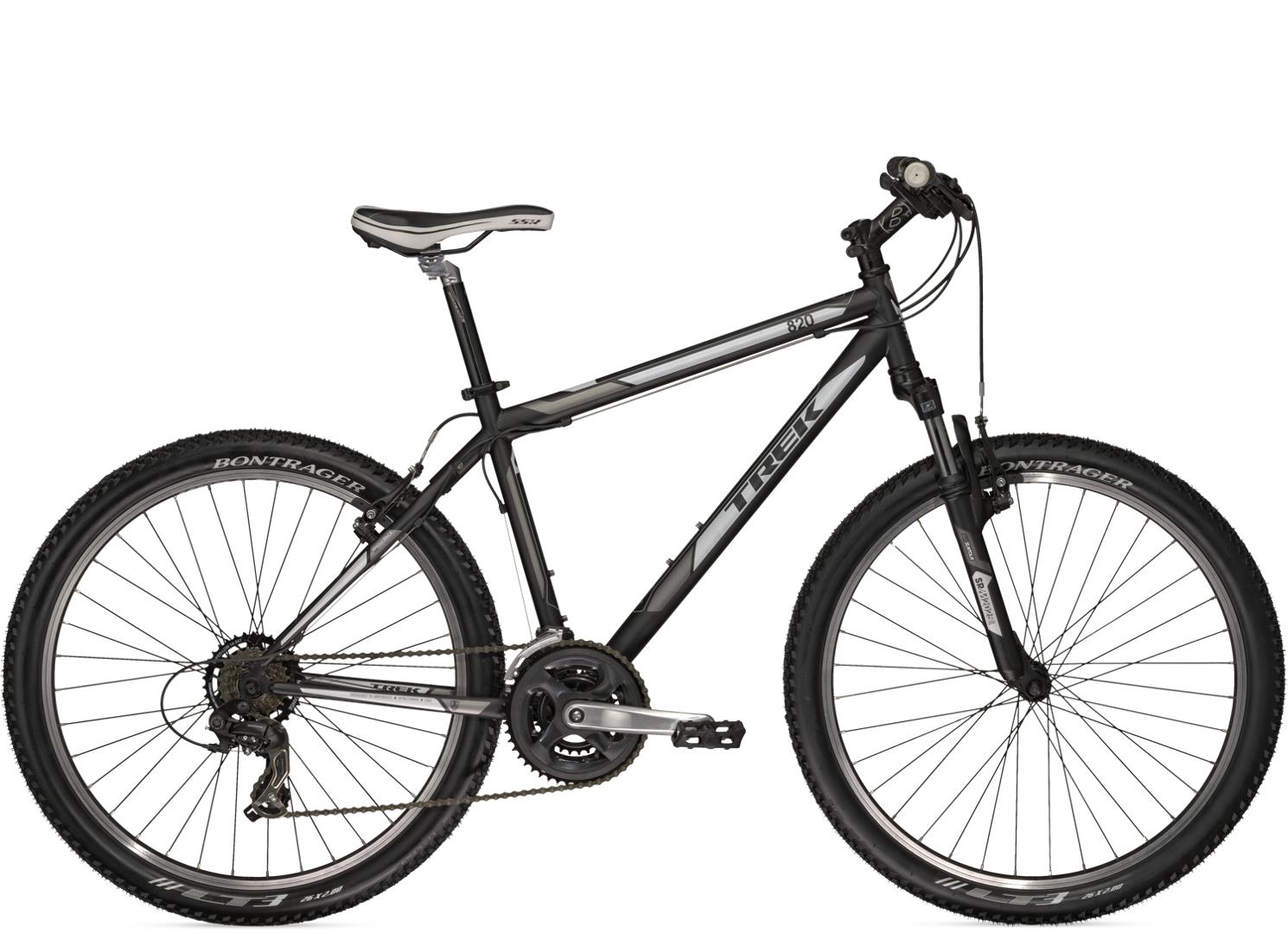

2012 Trek 820

Original specifications.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #3088107
Model year
2012
Category
Mountain
Original MSRP
$329.99
Sizes
13, 16, 18, 19.5, 21
Colors
Matte Metallic Black
In this record
16 specifications · archived image · original MSRP
Model history 21 other years

Browse other years

Compare side by side

Identification clues

2012 archived details

Published colors
Matte Metallic Black
Frame
Trek Custom Steel

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildTrek Custom Steel

Manufacturer catalog

Published sizes and colors

5 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

13161819.521

Published colors

Matte Metallic Black

Frameset

Frame MaterialTrek Custom Steel
ForkSR Suntour M-2025 63mm

Drivetrain

ShiftersShimano EF40 EZ Fire
Front DerailleurShimano TX
Rear DerailleurShimano TX35
CranksetAlloy 3-piece 48/38/28
CassetteShimano TZ31 7spd 14-34t
Pedalsnylon flat pedal

Brakes

BrakesTektro linear pull/EF40 levers

Cockpit & Contact Points

Headset1 1/8" threadless
HandlebarBontrager Riser 30mm
StemBontrager forged 25.4mm
SaddleBontrager SSR
SeatpostBontrager SSR 31.6mm

Wheels & Tires

HubsFormula FM21 alloy Formula FM31 alloy
Front TireBontrager LT3 26x2.0"

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

All published sizes48/38/28T · 14–34T · 7-speed
Lowest0.82:1 Highest3.43:1 Total range416%

Speed unavailable: wheel or tire size is missing or unclear.

Add your rear tire size to calculate speed
How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Cassette · Original
Shimano TZ31 7spd 14-34t
Front tire · Original
Bontrager LT3 26x2.0" Replacement search: 26x2 bicycle tire Before ordering: Check rim type and tire clearance.
More parts (2)Fewer parts
Saddle · Original
Bontrager SSR
Hubs · Original
Formula FM21 alloy Formula FM31 alloy

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Bontrager LT3 26x2.0"
Drivetrain
7-speed
Seatpost diameter
31.6 mm
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 11 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: Trek Custom Steel · Fork: SR Suntour M-2025 63mm

Archived: Fork: SR Suntour M-2025 63mm

Archived: Shifters: Shimano EF40 EZ Fire · Front derailleur: Shimano TX · Rear derailleur: Shimano TX35 · Crankset: Alloy 3-piece 48/38/28 · Cassette: Shimano TZ31 7spd 14-34t

Archived: Brakes: Tektro linear pull/EF40 levers

Archived: Hubs: Formula FM21 alloy Formula FM31 alloy · Front tire: Bontrager LT3 26x2.0"

Controls and contact points

Archived: Headset: 1 1/8" threadless · Handlebar: Bontrager Riser 30mm · Stem: Bontrager forged 25.4mm · Seatpost: Bontrager SSR 31.6mm · Saddle: Bontrager SSR · Pedals: nylon flat pedal
