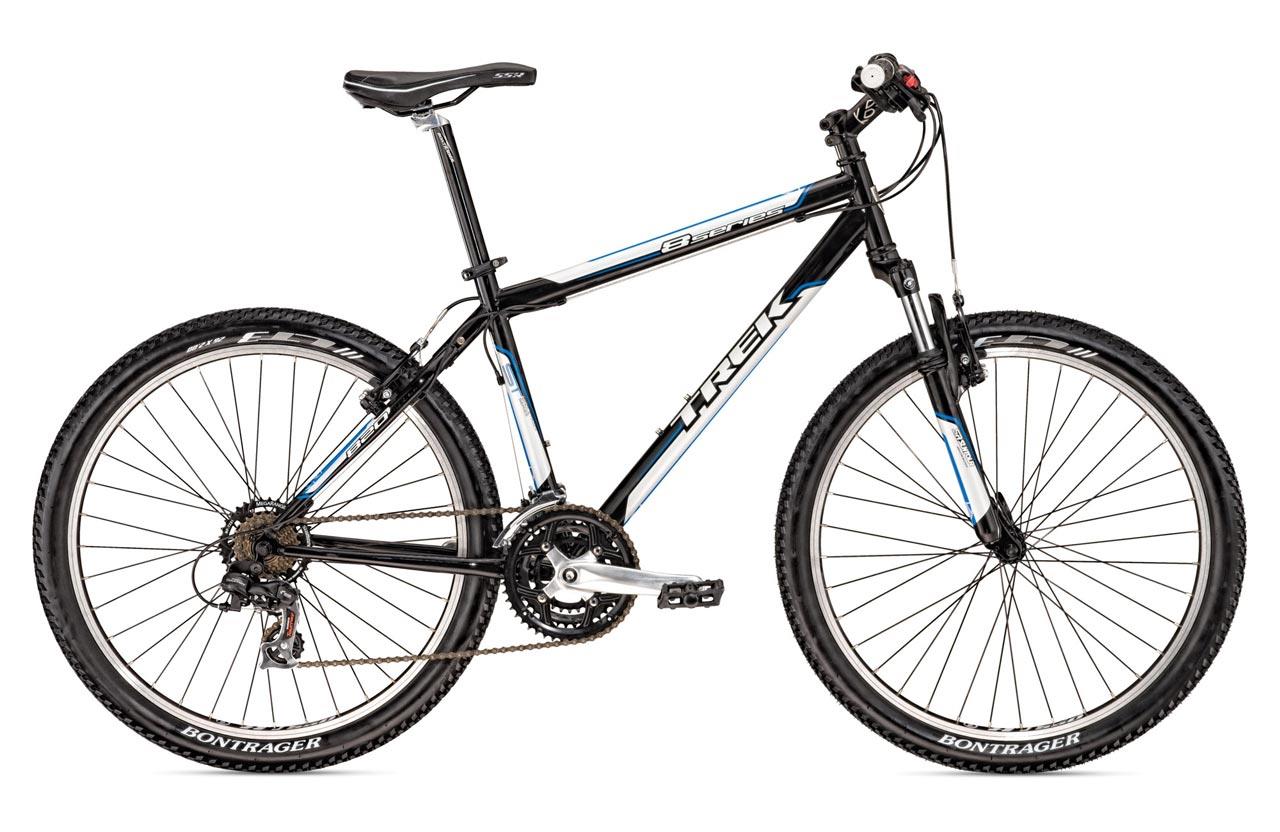

2010 Trek 820
Mountain bike, front suspension bicycle from the Velopedia historical specification archive.
- Original MSRP
- $329.99
- Sizes
- 13", 16", 18", 19.5", 21", 22.5"
- Colors
- Gloss Black
- Archive ID
- 19945
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Trek Custom Steel w/CroMoly seat tube |
| Fork | SR Suntour M-2025, 63mm travel |
| Fork Material | Single crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano EF-40 |
| Front Derailleur | Shimano C051 |
| Rear Derailleur | Shimano TX31 |
| Crankset | Hawk DX, 48/38/28 teeth |
| Cassette | Shimano TZ31 |
| Rear Cogs | 7-speed, 13 - 34 teeth |
| Pedals | Wellgo Nylon Platform |
Brakes
| Brakes | Tektro V brakes, Shimano EF-40 levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless VP-A71-TK steel |
|---|---|
| Handlebar | Bontrager Approved Riser |
| Handlebar Extensions | Not included |
| Stem | Bontrager Approved |
| Saddle | Bontrager SSR |
| Seatpost | Bontrager SSR, 31.6mm diameter |
Wheels & Tires
| Hubs | Formula FM-31 alloy |
|---|---|
| Rims | Bontrager 550 |
| Front Tire | 26 x 2.00" Bontrager LT-3 |
| Wheel Size | 26" wheels |
Historical specifications are presented as an archival reference. Component specifications may have varied by market, size, or production run.
