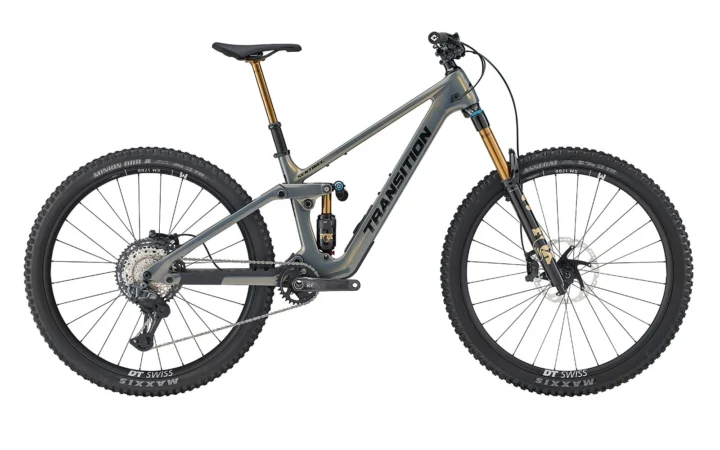

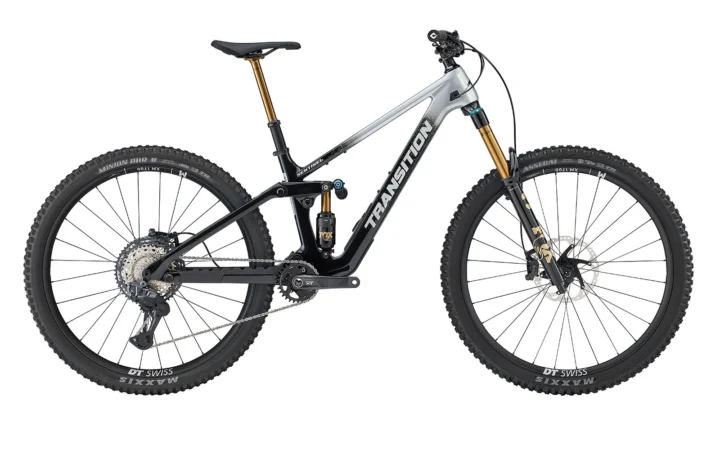

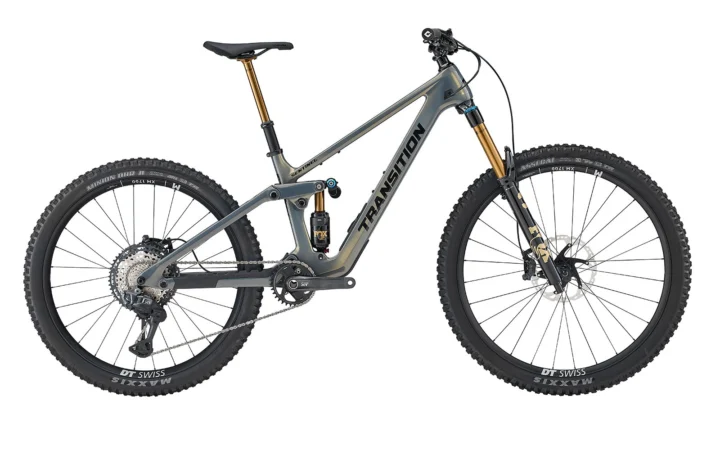

2026 Transition Sentinel Carbon XT Di2

Archived: 2026 Transition Sentinel Carbon XT Di2 · Mountain · Published sizes: Small MX, Medium MX, Medium 29, Large MX, Large 29, X-Large 29

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: Sentinel Carbon 150mm · Fork: Fox 36 Factory Grip X2(160mm)

• Inspect the frame in bright light, especially the head tube, bottom-bracket area, chainstays and clamped surfaces. Look for cracks, ripples, crushed sections or signs of impact.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.

Archived: Fork: Fox 36 Factory Grip X2(160mm) · Rear shock: Fox Float X2 Factory(205x60mm)

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
• Inspect the shock shaft and seals, cycle the rear suspension through its travel and check for oil, air loss, binding or unusual top-out and bottom-out noises.
• Hold the rear brake and load the suspension from several directions. Check pivots, bearings and mounting hardware for knock, looseness or side play.
• Ask for dated fork, shock and pivot-service records. A clean exterior does not establish the condition of internal seals, oil, bushings or bearings.

Archived: Shifters: Shimano XT Di2 SW-M8250-R · Rear derailleur: Shimano XT Di2 RD-M8250-SGS · Crankset: Shimano XT FC-820029(30t/165mm)27.5(32t/165mm) · Cassette: Shimano XT CS-M8200 (10-51t) · Chain: Shimano XT CN-8100

• Confirm every shift battery charges and every control operates. Shift through the full cassette under light load while checking pairing, derailleur alignment and response at both ends of the range.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Shimano XT M8220 4 Piston; Rotors: Shimano RT86 (203mm)

• Inspect pads and braking surfaces, check the complete cable or hose path, and confirm both controls feel consistent and return cleanly.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

Archived: Wheel size: 29" & Mixed · Rims: DT Swiss XM 1700 Spline 30 · Hubs: DT Swiss 350 Ratchet DEG 72 DF - Anti Kickback · Front tire: Schwalbe Albert, Trail Evo, Ultra Soft (2.5) · Rear tire: Schwalbe Albert, Trail Evo, Soft (2.5)

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.

Archived: Headset: FSA No.57E · Handlebar: Race Face EraSM(780x20)MD(780x40)LG/XL(800x40) · Stem: Race Face Turbine R (40mm) · Seatpost: Fox Transfer FactorySM(150mm)MD(180mm)LG(210mm)XL(240mm) · Saddle: SDG Bel Air 3 LUX

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Cycle the dropper post repeatedly. It should reach full travel, remain extended under load and have no unusual oil, excessive rotational play or damaged remote, cable, hose or battery.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
