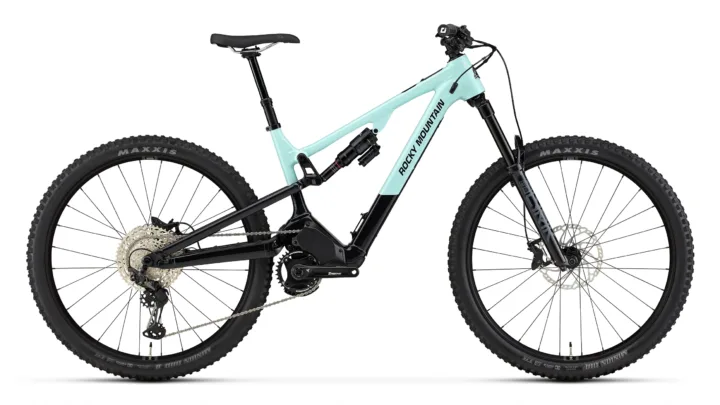

2026 Rocky Mountain Instinct Powerplay SL Alloy 50

Original manufacturer specifications including 29" wheels, geometry for 4 published sizes.

Share owner experience

Selling this bike? Create a shareable bike record

What Velopedia knows

Model year
2026
Category
Mountain
Original MSRP
$6,999.00
Sizes
S, M, L, XL
Colors
White/Grey, Blue/Blue/Black
Geometry
4 manufacturer sizes · Geometry context
Record coverage
26 preserved details · 2 archived images · original MSRP · preserved geometry
Archive ID
900000844
Campaign

Manufacturer catalog

Published sizes and colors

4 sizes · 2 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

SMLXL

Published colors

White/GreyBlue/Blue/Black

Frameset

Frame ConstructionFORM™ Alloy | Integrated Display | Mid-High Pivot Smoothlink Suspension System | Press Fit BB | RIDE-4™ Adjustable Geometry | 145mm Travel | FORM™ Alloy Rear Triangle
Frame MaterialAluminum
ForkRockShox Lyrik Select 160mm | Delta RC Damper | 27.5 = 37mm Offset | 29 = 42mm Offset
Rear ShockRockShox Super Deluxe Select | Linear XL Air Can | Sealed Bearing Eyelet | 20x8mm F Hardware | XS - SM = 190x45mm | MD - LG - XL = 210x55mm | Size-Specific tune in FAQ

Drivetrain

ShiftersShimano XT
Rear DerailleurShimano XT
CranksetRace Face Turbine Cinch | 34T Ring | 30mm Spindle | XS - XL = 165mm
Bottom BracketRace Face BB92 30mm
CassetteShimano Deore 10-51T 12spd
ChainShimano M6100

Brakes

BrakesShimano MT6120 4 Piston | Metal Pads

Cockpit & Contact Points

HeadsetFSA ZS56/66 Reach Adjust | 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 6.5mm Upper | 40mm x 51.8mm x 8.0mm Lower | 1.5" Crown Race
HandlebarRocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp
StemRocky Mountain 35 AM | 0° Rise | All Sizes = 40mm
SaddleWTB Volt Race 142 | Cromoly rails
SeatpostTranz X +RAD2.0 Adjustable Dropper Post | 30mm Adjustment | Alloy I-Spec EV Lever | 30.9mm | XS = 120mm | SM = 150mm | MD = 170mm | LG = 200mm | XL = 230mm

Wheels & Tires

HubsFront: Novatec D791SB Sealed Boost 15mm; Rear: Novatec MTB SL Pro Boost 148mm
RimsWTB KOM Trail i30 TCS 2.0 | 28H
SpokesDT Swiss Competition 2.0/1.8/2.0
Front TireMaxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready
Rear TireMaxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready
Wheel Size29"

E-bike System

MotorDyname S4 Lite Mountain Bike Drive | 250w Nominal Power | 700w Max Power | 75Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency class 1 eMTB System | Designed in Canada
Battery480 Wh Removable Integrated Li-Ion
Display/RemoteRocky Mountain Jumbotron | Drive System Customization | Battery & Assist Level | Trip | Speed | Cadence | Top Tube Integration
ChargerRocky Mountain Powerplay FAST Charger | 4A | 48V | Higo Deep Socket Connector

Size-specific frame data

Geometry

4 sizes · 11 measurements

Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.

MeasurementSMMDLGXL
Seat tube365 mm410 mm440 mm470 mm
Effective top tube567 mm599 mm627 mm659 mm
Head tube105 mm110 mm125 mm135 mm
Head-tube angle63.5°63.5°63.5°63.5°
Seat-tube angle76.8°76.5°76.5°76.5°
Chainstay / rear center439 mm439 mm449 mm449 mm
Wheelbase1202 mm1229 mm1270 mm1305 mm
Bottom-bracket drop23.8 mm23.9 mm23.9 mm24 mm
Reach425 mm450 mm475 mm505 mm
Stack618 mm622 mm636 mm645 mm
Standover height785 mm809 mm807 mm807 mm

Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.

Geometry tools

Analyze a published size

Choose a size

SM geometry

Archive context: Its bottom-bracket drop of 23.8 mm sits toward the shallower-drop end. The head angle of 63.5° sits toward the slacker end. The chainstay of 439 mm sits toward the shorter rear-center end.

Compared with 105 distinct electric-assist geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.
Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze SM geometry

Parts & serviceability

Find replacement parts

3 top part searches
ChainExact archived part
Shimano M6100 Exact archived model
CassetteMatching configuration
Shimano Deore 10-51T 12spd Interpreted as Shimano Deore · 12-speed Component family — verify exact version
Front tireOne check needed
Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready Named tire · verify the exact width Before ordering: Confirm the exact tire width before ordering.
More qualified parts (4)
Rear tireOne check needed
Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready Named tire · verify the exact width Before ordering: Confirm the exact tire width before ordering.
Bottom bracketExact archived part
Race Face BB92 30mm Named archived component — verify dimensions
Rear derailleurMatching configuration
Shimano XT Interpreted as Shimano Deore XT · 12-speed Named component · published drivetrain speed — verify exact version Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
ShiftersOne check needed
Shimano XT Interpreted as Shimano Deore XT · 12-speed Named component · published drivetrain speed — verify exact version Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.

Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.

Campaign

Used-bike inspection

If you’re buying this bike used

Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.

Follow the full used-bike inspection order →
  • FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
  • BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
  • E-bike systemConfirm the main battery charges with the correct charger, locks securely into its mount and has no case damage, swelling, corrosion or overheating marks. Power the bike on from cold, test every assist mode and ask for available battery-health and diagnostic records.Check the battery and electronics →
  • SuspensionAsk when the fork and shock were last serviced. Check the stanchions for damage, look for oil at the seals, cycle both units through their travel and test the suspension pivots for play.Evaluate the suspension →
  • Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads. If it is set up tubeless, confirm both tires hold pressure and ask when the sealant was last refreshed.Check wheels and tires →
Bike-specific inspection checklist 27 checks based on 7 archived component groups Open checklistClose checklist
0 of 27 checked Progress stays in this browser for this bike.

This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.

Archived: 2026 Rocky Mountain Instinct Powerplay SL Alloy 50 · Electric-assist · Published sizes: S, M, L, XL

Archived: Frame: FORM™ Alloy | Integrated Display | Mid-High Pivot Smoothlink Suspension System | Press Fit BB | RIDE-4™ Adjustable Geometry | 145mm Travel | FORM™ Alloy Rear Triangle · Fork: RockShox Lyrik Select 160mm | Delta RC Damper | 27.5 = 37mm Offset | 29 = 42mm Offset

Archived: Fork: RockShox Lyrik Select 160mm | Delta RC Damper | 27.5 = 37mm Offset | 29 = 42mm Offset · Rear shock: RockShox Super Deluxe Select | Linear XL Air Can | Sealed Bearing Eyelet | 20x8mm F Hardware | XS - SM = 190x45mm | MD - LG - XL = 210x55mm | Size-Specific tune in FAQ

Archived: Shifters: Shimano XT · Rear derailleur: Shimano XT · Crankset: Race Face Turbine Cinch | 34T Ring | 30mm Spindle | XS - XL = 165mm · Bottom bracket: Race Face BB92 30mm · Cassette: Shimano Deore 10-51T 12spd · Chain: Shimano M6100

Archived: Brakes: Shimano MT6120 4 Piston | Metal Pads

Archived: Wheel size: 29" · Rims: WTB KOM Trail i30 TCS 2.0 | 28H · Hubs: Front: Novatec D791SB Sealed Boost 15mm; Rear: Novatec MTB SL Pro Boost 148mm · Front tire: Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready · Rear tire: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready

Controls and contact points

Archived: Handlebar: Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp · Stem: Rocky Mountain 35 AM | 0° Rise | All Sizes = 40mm · Seatpost: Tranz X +RAD2.0 Adjustable Dropper Post | 30mm Adjustment | Alloy I-Spec EV Lever | 30.9mm | XS = 120mm | SM = 150mm | MD = 170mm | LG = 200mm | XL = 230mm · Saddle: WTB Volt Race 142 | Cromoly rails

Archived: Motor: Dyname S4 Lite Mountain Bike Drive | 250w Nominal Power | 700w Max Power | 75Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency class 1 eMTB System | Designed in Canada · Battery: 480 Wh Removable Integrated Li-Ion · Display: Rocky Mountain Jumbotron | Drive System Customization | Battery & Assist Level | Trip | Speed | Cadence | Top Tube Integration · Charger: Rocky Mountain Powerplay FAST Charger | 4A | 48V | Higo Deep Socket Connector

Before and during the test ride

Follow the full used-bike inspection order →

Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
