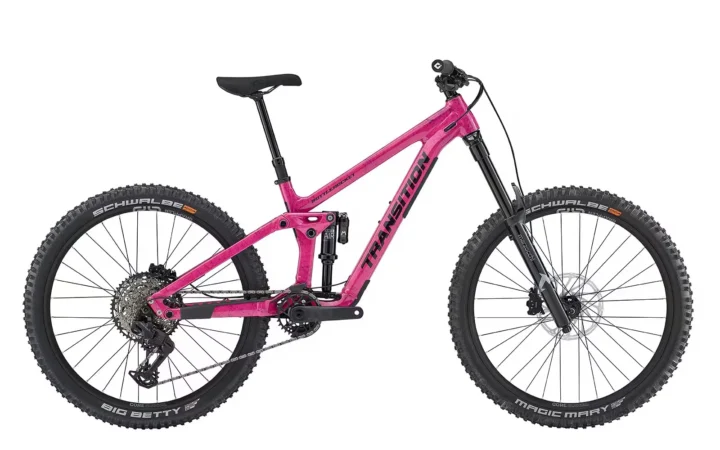

2026 Transition Bottlerocket Single Crown
Original manufacturer specifications including 27.5" wheels, 39.0 lbs / 17.69 kg (Size MD) published weight, geometry for 8 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2026
- Category
- Mountain
- Original MSRP
- $4,699.00
- Sizes
- S, M, L, XL
- Colors
- Snowstorm, Disco Flamingo
- Weight
- 39.0 lbs / 17.69 kg (Size MD)
- Geometry
- 8 manufacturer sizes · Geometry context
- Record coverage
- 22 preserved details · 2 archived images · original MSRP · preserved geometry
- Archive ID
- 900001465
Frameset
| Frame Construction | Bottlerocket Alloy 180mm |
|---|---|
| Frame Material | Aluminum |
| Fork | Marzocchi Bomber Z(180mm) |
| Rear Shock | Marzocchi Bomber Air(225x70mm) |
Drivetrain
| Shifters | SRAM Eagle 70 MMX |
|---|---|
| Rear Derailleur | SRAM Eagle 70 |
| Crankset | SRAM Eagle 70 DUB(30t/165mm) |
| Cassette | SRAM XS 1270 (10-52T) |
| Chain | SRAM Eagle 70 |
Brakes
| Brakes | SRAM Maven Base; Rotors: SRAM Centerline (200mm) |
|---|
Cockpit & Contact Points
| Headset | FSA No.57E |
|---|---|
| Handlebar | Burgtec Ride High AlloySM (780x20mm)MD (780x30mm)LG/XL (800x30mm) |
| Stem | Burgtec Enduro MK3 (35mm) |
| Saddle | Burgtec Cloud Boost |
| Seatpost | SDG TellisSM (150mm)MD (170mm)LG (200mm)XL (230mm) |
Wheels & Tires
| Hubs | Novatech D951SB/D902SB |
|---|---|
| Rims | E*Thirteen Grappler Core |
| Spokes | Pillar Straight Gauge |
| Front Tire | Schwalbe Magic MarySuper Trail, Soft (2.4) |
| Rear Tire | Schwalbe Big BettySuper Trail, Soft (2.4) |
| Wheel Size | 27.5" |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | SM · High | SM · Low | MD · High | MD · Low | LG · High | LG · Low | XL · High | XL · Low |
|---|---|---|---|---|---|---|---|---|
| Seat tube | 360 mm | 360 mm | 390 mm | 390 mm | 420 mm | 420 mm | 440 mm | 440 mm |
| Effective top tube | 538 mm | 533 mm | 573 mm | 568 mm | 606 mm | 601 mm | 638 mm | 633 mm |
| Head tube | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm | 120 mm | 120 mm |
| Head-tube angle | 64° | 63.6° | 64° | 63.6° | 64° | 63.6° | 64° | 63.6° |
| Chainstay / rear center | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1191 mm | 1191 mm | 1220 mm | 1220 mm | 1249 mm | 1249 mm | 1279 mm | 1279 mm |
| Bottom-bracket drop | 15 mm | 20 mm | 15 mm | 20 mm | 15 mm | 20 mm | 15 mm | 20 mm |
| Reach | 425 mm | 421 mm | 450 mm | 446 mm | 475 mm | 471 mm | 500 mm | 496 mm |
| Stack | 607 mm | 610 mm | 616 mm | 619 mm | 625 mm | 628 mm | 625 mm | 628 mm |
Geometry source: Transition first-party SBG geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
The manufacturer publishes more than one geometry configuration. Velopedia analyzes each labeled state separately while treating them as one chassis in archive comparisons.
SM geometry
Configuration
Archive context: Its bottom-bracket drop of 15 mm sits toward the shallower-drop end. The head angle of 64° sits somewhat slacker than typical. Its wheelbase of 1191 mm sits somewhat longer than typical.
Compared with 180 distinct mountain geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze SM · High geometry Archive context: Its bottom-bracket drop of 20 mm sits toward the shallower-drop end. The head angle of 63.6° sits toward the slacker end. Its wheelbase of 1191 mm sits somewhat longer than typical.
Compared with 180 distinct mountain geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze SM · Low geometry MD geometry
Configuration
Archive context: Its bottom-bracket drop of 15 mm sits toward the shallower-drop end. The head angle of 64° sits somewhat slacker than typical. Its wheelbase of 1220 mm sits somewhat longer than typical.
Compared with 182 distinct mountain geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze MD · High geometry Archive context: Its bottom-bracket drop of 20 mm sits toward the shallower-drop end. The head angle of 63.6° sits toward the slacker end. Its reach of 446 mm sits somewhat shorter than typical.
Compared with 182 distinct mountain geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze MD · Low geometry LG geometry
Configuration
Archive context: Its bottom-bracket drop of 15 mm sits toward the shallower-drop end. The head angle of 64° sits somewhat slacker than typical. Its wheelbase of 1249 mm sits somewhat longer than typical.
Compared with 178 distinct mountain geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze LG · High geometry Archive context: Its bottom-bracket drop of 20 mm sits toward the shallower-drop end. The head angle of 63.6° sits toward the slacker end. Its wheelbase of 1249 mm sits somewhat longer than typical.
Compared with 178 distinct mountain geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze LG · Low geometry XL geometry
Configuration
Archive context: Its bottom-bracket drop of 15 mm sits toward the shallower-drop end. Its stack of 625 mm sits toward the lower end. The head angle of 64° sits somewhat slacker than typical.
Compared with 153 distinct mountain geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL · High geometry Archive context: Its bottom-bracket drop of 20 mm sits toward the shallower-drop end. Its stack of 628 mm sits toward the lower end. The head angle of 63.6° sits toward the slacker end.
Compared with 153 distinct mountain geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL · Low geometry Parts & serviceability
Find replacement parts
Schwalbe Magic MarySuper Trail, Soft (2.4)
Named tire · verify the exact width
Before ordering: Confirm the exact tire width before ordering.
Schwalbe Big BettySuper Trail, Soft (2.4)
Named tire · verify the exact width
Before ordering: Confirm the exact tire width before ordering.
SDG TellisSM (150mm)MD (170mm)LG (200mm)XL (230mm)
Named archived component — verify dimensions
More qualified parts (2)
FSA No.57E
Exact archived model
E*Thirteen Grappler Core
Named archived component — verify dimensions
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- SuspensionAsk when the fork and shock were last serviced. Check the stanchions for damage, look for oil at the seals, cycle both units through their travel and test the suspension pivots for play.Evaluate the suspension →
- DrivetrainShift through the full range under light load, measure chain wear and inspect the cassette or freewheel teeth. Skipping or hesitation can indicate wear, poor adjustment or mismatched parts.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 22 checks based on 6 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Transition Bottlerocket Single Crown · Mountain · Published sizes: S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Bottlerocket Alloy 180mm · Fork: Marzocchi Bomber Z(180mm)
Suspension
Evaluate the suspension →Archived: Fork: Marzocchi Bomber Z(180mm) · Rear shock: Marzocchi Bomber Air(225x70mm)
Drivetrain
Check drivetrain wear →Archived: Shifters: SRAM Eagle 70 MMX · Rear derailleur: SRAM Eagle 70 · Crankset: SRAM Eagle 70 DUB(30t/165mm) · Cassette: SRAM XS 1270 (10-52t) · Chain: SRAM Eagle 70
Brakes
Inspect the brakes →Archived: Brakes: SRAM Maven Base; Rotors: SRAM Centerline (200mm)
Wheels and tires
Check wheels and tires →Archived: Wheel size: 27.5" · Rims: E*Thirteen Grappler Core · Hubs: Novatech D951SB/D902SB · Front tire: Schwalbe Magic MarySuper Trail, Soft (2.4) · Rear tire: Schwalbe Big BettySuper Trail, Soft (2.4)
Controls and contact points
Archived: Headset: FSA No.57E · Handlebar: Burgtec Ride High AlloySM (780x20mm)MD (780x30mm)LG/XL (800x30mm) · Stem: Burgtec Enduro MK3 (35mm) · Seatpost: SDG TellisSM (150mm)MD (170mm)LG (200mm)XL (230mm) · Saddle: Burgtec Cloud Boost
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
