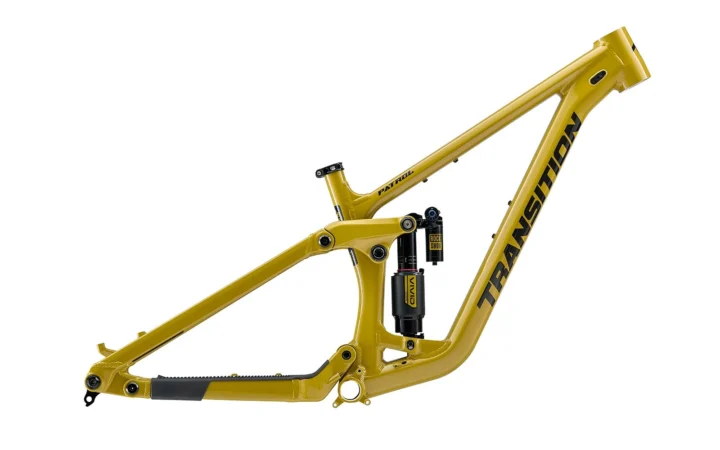

2026 Transition Patrol Frameset Alloy
Original manufacturer specifications including Mixed wheels, 10.2 lbs / 4.63 kg (Size MD w/ Shock) published weight, geometry for 8 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2026
- Category
- Mountain
- Original MSRP
- $2,499.00
- Sizes
- S, M, L, XL
- Colors
- Stargazer, Electrum
- Weight
- 10.2 lbs / 4.63 kg (Size MD w/ Shock)
- Geometry
- 8 manufacturer sizes · Geometry context
- Record coverage
- 6 preserved details · 2 archived images · original MSRP · preserved geometry
- Archive ID
- 900001579
Frameset
| Frame Construction | Patrol Alloy 160mm |
|---|---|
| Frame Material | Aluminum |
| Rear Shock | RockShox Vivid Ultimate (205x60mm) |
Cockpit & Contact Points
| Headset | FSA NO.55R/57(Included) |
|---|
Wheels & Tires
| Wheel Size | Mixed |
|---|
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | SM · High | SM · Low | MD · High | MD · Low | LG · High | LG · Low | XL · High | XL · Low |
|---|---|---|---|---|---|---|---|---|
| Seat tube | 360 mm | 360 mm | 390 mm | 390 mm | 430 mm | 430 mm | 460 mm | 460 mm |
| Effective top tube | 543 mm | 540 mm | 578 mm | 575 mm | 606 mm | 603 mm | 639 mm | 636 mm |
| Head tube | 100 mm | 100 mm | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm |
| Head-tube angle | 63.5° | 63° | 63.5° | 63° | 63.5° | 63° | 63.5° | 63° |
| Chainstay / rear center | 434 mm | 436 mm | 434 mm | 436 mm | 440 mm | 442 mm | 440 mm | 442 mm |
| Wheelbase | 1196 mm | 1198 mm | 1231 mm | 1233 mm | 1266 mm | 1268 mm | 1301 mm | 1303 mm |
| Bottom-bracket drop | 35 mm | 42 mm | 35 mm | 42 mm | 35 mm | 42 mm | 35 mm | 42 mm |
| Reach | 420 mm | 415 mm | 455 mm | 450 mm | 480 mm | 475 mm | 510 mm | 505 mm |
| Stack | 623 mm | 628 mm | 623 mm | 628 mm | 632 mm | 637 mm | 641 mm | 646 mm |
| Standover height | 675 mm | 685 mm | 690 mm | 700 mm | 705 mm | 715 mm | 720 mm | 730 mm |
Geometry source: Transition first-party SBG geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
