Original specifications: 24.0 kg (52 lb, 14.6 oz) published weight · geometry for 5 published sizes.
Planning to sell? Draft your listing
At a glance
Archive #900000628| Frame Construction | Levo 4 carbon frame, 150mm travel, w/SWAT storage, side entry battery, fork travel up to 180mm, adjustable head angle, BB height, chainstay length |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | All New SRAM FS ZEB Ultimate, 29" 160mm, Linear XL spring with ButterCups and adjustable bottom out, new Charger 3.2 damper with HSC and LSC, rebound adjust |
| Rear Shock | All New Rockshox Super Deluxe Ultimate GENIE, RC2T damper with (LSC) Low Speed Compression and (HSC) High Speed Compression, GENIE adjustable airspring, rebound adjust, 210x55mm |
| Shifters | SRAM AXS Pod Ultimate with Discrete Clamp |
|---|---|
| Rear Derailleur | SRAM XX Eagle Transmission Derailleur |
| Crankset | SRAM XX Carbon crank, 160mm, ISIS interface |
| Cassette | SRAM XX Transmission, XS 1297, 10-52t |
| Chain | SRAM XX, T-Type |
| Brakes | (F) SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor / (R) SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor |
|---|
| Handlebar | RaceFace Era Carbon Handlebars, 35mm clamp, back-sweep 8-degrees, up-sweep 5 degrees, 800mm width, S1/S2: 40mm rise, S3-S6: 55mm rise |
|---|---|
| Stem | RaceFace, 35mm clamp, 40mm length |
| Saddle | Specialized Power Pro Mirror w/hollow Ti rails, 143mm/155mm |
| Seatpost | FOX Transfer Neo E-Optimized, 34.9, S2: 150mm, S3: 175mm, S4: 200mm, S5: 225mm, S6: 240mm w/ 1320mm cable powered by e-system battery |
| Wheels | (F) Roval Traverse HD 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 Hub, 12x148mm, 28h / (R) Roval Traverse HD carbon 27.5", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG Hub, 12x148mm, 32h |
|---|---|
| Front Tire | Butcher GRID Gravity Radial T9 TLR Enduro Tire 29x2.4 |
| Rear Tire | Butcher GRID Gravity Radial T9 TLR Enduro Tire 27.5x2.4 |
No specifications match. Try a component name or clear your search.
Frame measurements by size.
Reference drawing
Select an available measurement to locate it on the frame.
| Measurement | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|
| Seat tube | 390 mm | 405 mm | 425 mm | 445 mm | 465 mm |
| Effective top tube | 578 mm | 599 mm | 627 mm | 655 mm | 689 mm |
| Head tube | 95 mm | 103 mm | 117 mm | 132 mm | 149 mm |
| Head-tube angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| Seat-tube angle | 77° | 77° | 77° | 77° | 77° |
| Chainstay / rear center | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1200 mm | 1223 mm | 1254 mm | 1286 mm | 1323 mm |
| Bottom-bracket drop | 29.5 mm | 29.5 mm | 29.5 mm | 29.5 mm | 29.5 mm |
| Bottom-bracket height | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| Reach | 435 mm | 455 mm | 480 mm | 505 mm | 535 mm |
| Stack | 618 mm | 626 mm | 638 mm | 652 mm | 667 mm |
| Standover height | 753 mm | 754 mm | 753 mm | 758 mm | 761 mm |
| Fork offset / rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Front center | 765 mm | 789 mm | 820 mm | 851 mm | 888 mm |
| Trail | 132 mm | 132 mm | 132 mm | 132 mm | 132 mm |
| Fork length / axle-to-crown | 577 mm | 577 mm | 577 mm | 577 mm | 577 mm |
| Crank length | 160 mm | 160 mm | 160 mm | 160 mm | 160 mm |
| Stem length | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Handlebar width | 800 mm | 800 mm | 800 mm | 800 mm | 800 mm |
Dimensions as recorded.
Original gearing is incomplete. Enter your setup to calculate ratios and cadence speeds.
Your changes apply to this calculation. The archived build stays unchanged.
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
T-Type

Replacement option
XS 1297, 10-52t

Model match

Replacement option
160mm, ISIS interface
34.9, S2: 150mm, S3: 175mm, S4: 200mm, S5: 225mm, S6: 240mm w/ 1320mm cable powered by e-system battery
Based on the original build. Check fit and installed parts before ordering.
Archived specifications for reference. Check the fitted parts before ordering.
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Archived: Frame: Levo 4 carbon frame, 150mm travel, w/SWAT storage, side entry battery, fork travel up to 180mm, adjustable head angle, BB height, chainstay length · Fork: All New SRAM FS ZEB Ultimate, 29" 160mm, Linear XL spring with ButterCups and adjustable bottom out, new Charger 3.2 damper with HSC and LSC, rebound adjust
Archived: Fork: All New SRAM FS ZEB Ultimate, 29" 160mm, Linear XL spring with ButterCups and adjustable bottom out, new Charger 3.2 damper with HSC and LSC, rebound adjust · Rear shock: All New Rockshox Super Deluxe Ultimate GENIE, RC2T damper with (LSC) Low Speed Compression and (HSC) High Speed Compression, GENIE adjustable airspring, rebound adjust, 210x55mm
Archived: Shifters: SRAM AXS Pod Ultimate with Discrete Clamp · Rear derailleur: SRAM XX Eagle Transmission Derailleur · Crankset: SRAM XX Carbon crank, 160mm, ISIS interface · Cassette: SRAM XX Transmission, XS 1297, 10-52t · Chain: SRAM XX, T-Type
Archived: Brakes: (F) SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor / (R) SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor
Archived: Front tire: Butcher GRID Gravity Radial T9 TLR Enduro Tire 29x2.4 · Rear tire: Butcher GRID Gravity Radial T9 TLR Enduro Tire 27.5x2.4
Archived: Handlebar: RaceFace Era Carbon Handlebars, 35mm clamp, back-sweep 8-degrees, up-sweep 5 degrees, 800mm width, S1/S2: 40mm rise, S3-S6: 55mm rise · Stem: RaceFace, 35mm clamp, 40mm length · Seatpost: FOX Transfer Neo E-Optimized, 34.9, S2: 150mm, S3: 175mm, S4: 200mm, S5: 225mm, S6: 240mm w/ 1320mm cable powered by e-system battery · Saddle: Specialized Power Pro Mirror w/hollow Ti rails, 143mm/155mm

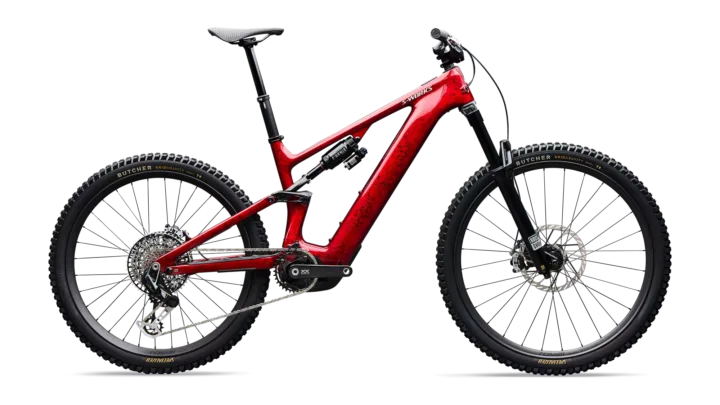

Archived: Specialized S-Works Turbo Levo 4 · electric-assist identification
