Velopedia Bicycle Archive

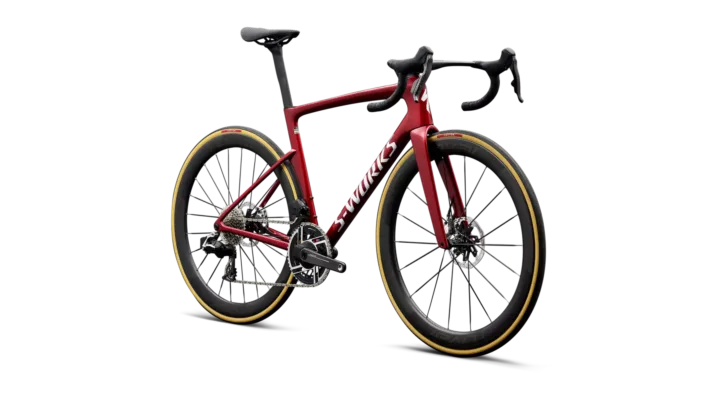

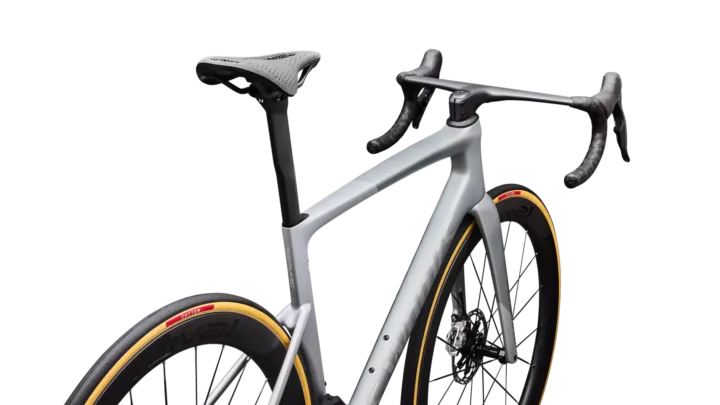

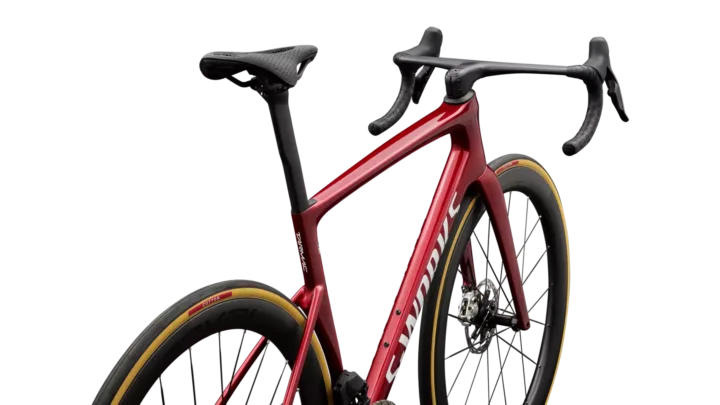

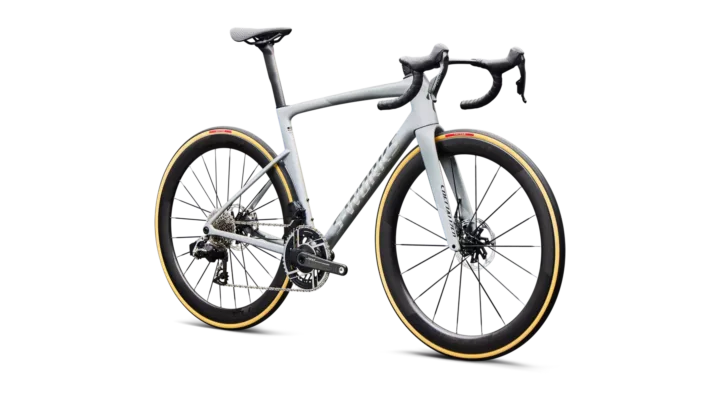

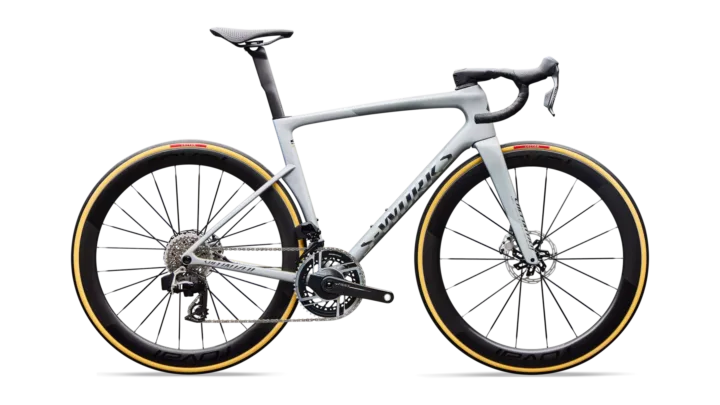

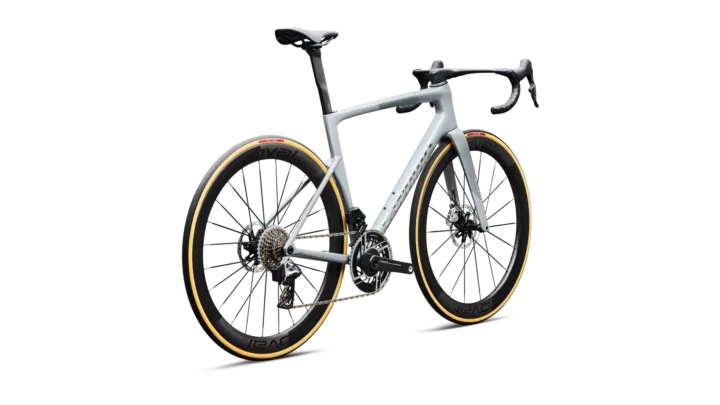

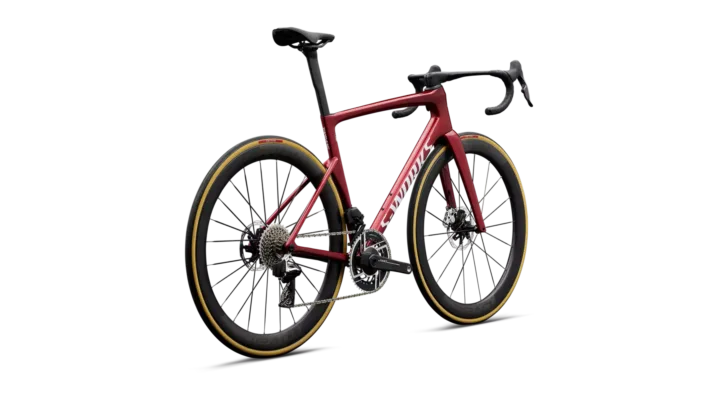

2027 Specialized S-Works Tarmac SL9

Road bicycle from the Velopedia specification archive.

Share owner experience

Original MSRP: $13,999.99
Sizes: 44; 49; 52; 54; 56; 58; 61
Colors: Gloss Ruby Metallic / White Silver Metallic; Satin Silver Dust / Gloss Chrome
Weight: 6.6 kg (14 lb, 8.8 oz)
Geometry: 7 manufacturer sizes
Archive ID: 900000814

Learn more about Specialized →

Current market

Snapshot not yet available

Protected live updateReady after page interactionAutomated crawlers do not trigger marketplace requests.

Move, scroll, tap or type to start the protected update.

Have you owned this bike?Help preserve its real-world history by sharing your owner experience.

Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.

Display name Required Email address Required · private Ownership Required When or how long you owned it Required Frame size Required Primary type of riding Required Rider height Optional

Overall owner experience Required · at least 120 characters

Fit and sizing observations Optional Long-term strengths Optional Problems or recurring maintenance Optional Parts replaced or upgraded Optional What a used buyer should inspect Optional Would you own one again? Optional

After submitting, use the verification link sent to your email. Nothing appears publicly until Velopedia approves it.

Already contributed? Send me a fresh private edit link

For privacy, Velopedia shows the same confirmation whether or not an experience exists.

Frameset

Frame Construction	S-Works Tarmac SL9 FACT 12r Carbon, Rider First Engineered, Win Tunnel Engineered, Ceramic Speed SLT headset bearings, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
Frame Material	Carbon Fiber
Fork	S-Works FACT 12r Carbon, 12x100mm thru-axle, flat-mount disc
Fork Material	Carbon Fiber

Drivetrain

Shifters	SRAM RED AXS E1, hydraulic disc
Front Derailleur	SRAM RED AXS E1, braze-on
Rear Derailleur	SRAM RED AXS E1, 12-speed
Crankset	SRAM RED AXS E1 with Quarq Power Meter, 50/37
Bottom Bracket	Ceramic Speed BB Alpha, BSA DUB
Cassette	SRAM RED XG-1290 E1, 12-speed, 10-36t
Chain	SRAM RED E1

Brakes

Brakes	(F) SRAM RED E1, hydraulic disc / (R) SRAM RED E1, hydraulic disc

Cockpit & Contact Points

Handlebar	Roval Rapide Cockpit, Integrated Bar/Stem
Saddle	S-Works Power with Mirror
Seatpost	S-Works Rapide Post, FACT Carbon, 15mm offset

Wheels & Tires

Wheels	(F) Roval Rapide CLX III, Tubeless, 21mm internal width carbon rim, 51mm depth, Win Tunnel Engineered, Roval LF18F 18H hub with Sinc Ceramic Bearings, Roval by ARRIS Composite Aero Spoke with Ti end fittings / (R) Roval Rapide CLX III, Tubeless, 21mm internal width carbon rim, 48.5mm depth, Win Tunnel Engineered, Roval LF19-R 24H hub with Sinc Ceramic Bearings, Roval by ARRIS Composite Aero Spoke with Ti end fittings
Front Tire	Cotton TLR, 700x30
Rear Tire	Cotton TLR, 700x30

Size-specific frame data

Geometry

7 sizes · 19 measurements

Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.

Measurement	44	49	52	54	56	58	61
Seat tube	433 mm	445 mm	456 mm	473 mm	494 mm	515 mm	545 mm
Effective top tube	496 mm	509 mm	531 mm	540 mm	563 mm	577 mm	595 mm
Head tube	99 mm	109 mm	120 mm	140 mm	157 mm	184 mm	204 mm
Head-tube angle	70.5°	71.75°	72.5°	72.5°	73.5°	73.5°	74°
Seat-tube angle	75.5°	75.5°	74°	74°	73.5°	73.5°	73°
Chainstay / rear center	410 mm	410 mm	410 mm	410 mm	410 mm	410 mm	410 mm
Wheelbase	970 mm	973 mm	975 mm	986 mm	991 mm	1006 mm	1013 mm
Bottom-bracket drop	74 mm	74 mm	74 mm	72 mm	72 mm	72 mm	72 mm
Bottom-bracket height	266 mm	266 mm	266 mm	268 mm	268 mm	268 mm	268 mm
Reach	366 mm	375 mm	380 mm	384 mm	395 mm	402 mm	408 mm
Stack	501 mm	514 mm	527 mm	544 mm	565 mm	591 mm	612 mm
Standover height	722 mm	734 mm	745 mm	767 mm	785 mm	807 mm	833 mm
Fork offset / rake	47 mm	47 mm	47 mm	47 mm	44 mm	44 mm	44 mm
Front center	567 mm	570 mm	572 mm	582 mm	587 mm	602 mm	609 mm
Trail	71 mm	63 mm	58 mm	58 mm	55 mm	55 mm	52 mm
Fork length / axle-to-crown	370 mm	370 mm	370 mm	370 mm	370 mm	370 mm	370 mm
Crank length	165 mm	165 mm	165 mm	170 mm	170 mm	172.5 mm	172.5 mm
Stem length	75 mm	75 mm	90 mm	100 mm	100 mm	110 mm	110 mm
Handlebar width	380 mm	380 mm	380 mm	380 mm	400 mm	420 mm	420 mm

Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
