2026 Specialized Diverge 4 Sport Alloy
Cyclocross/Gravel bicycle from the Velopedia specification archive.
- Original MSRP
- $2,099.99
- Sizes
- 49, 52, 54, 56, 58, 61
- Colors
- Gloss Dark Navy / Dolomite Metallic, Satin Burnt Gold Metallic / Shadow Silver
- Weight
- 10.74 kg (23 lb, 10.8 oz)
- Geometry
- 6 manufacturer sizes · Ride analysis
- Archive ID
- 900001045
Current market
Snapshot not yet availableProtected live updateReady after page interactionAutomated crawlers do not trigger marketplace requests.
Move, scroll, tap or type to start the protected update.
Velopedia analysis
What the specifications mean
The 455% cassette range describes the available gearing more clearly than the component-group name alone. The rims and tires are tubeless-ready, but that label does not confirm the bike is currently set up without tubes; tape, valves, sealant and tire condition still matter. On the alloy frame, dents and hairline cracks around welds, pivots and heavily loaded junctions matter more than cosmetic scratches.
Gearing
455% cassette range
Calculated from the published 11–50-tooth sprocket span.
Tire setup
Tubeless-ready
The rims and tires may support tubeless use, but the bike may still be running tubes.
Frame material
Aluminum / alloy
Dents and cracking around welds, pivots and loaded junctions deserve attention.
Bottom bracket
Threaded interface
Shell width, thread standard and crank-spindle interface still require confirmation.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- DrivetrainShift through every gear under light load and measure chain wear. Confirm that the shifter, derailleur, chain and cassette belong to the same 11-speed system.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads. If it is set up tubeless, confirm both tires hold pressure and ask when the sealant was last refreshed.Check wheels and tires →
- Bottom bracketTurn the cranks slowly, feel for rough bearings and check for side-to-side play. Creaking under load deserves investigation but does not identify the source by itself.Inspect the bottom bracket and shell →
Bike-specific inspection checklist 20 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Specialized Diverge 4 Sport Alloy · Cyclocross/Gravel · Published sizes: 49, 52, 54, 56, 58, 61
Frame and fork
Inspect the frame and fork →Archived: Frame: Specialized Diverge E5 Premium Aluminum, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout · Fork: Future Shock 3.1 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc · Carbon Fiber
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano CUES ST-U6030 · Rear derailleur: Shimano CUES 11-speed w/ Shadow Plus · Crankset: Shimano CUES FC-U6040, 40t · Bottom bracket: Shimano Threaded BSA BB · Cassette: Shimano, CS-LG400-11, CUES, 11-Speed, 11-50t · Chain: Shimano CN-LG500
Brakes
Inspect the brakes →Archived: Brakes: (F) Shimano CUES Hydraulic Brake / (R) Shimano CUES Hydraulic Brake
Wheels and tires
Check wheels and tires →Archived: Wheels: (F) AXIS Elite Disc / (R) AXIS Elite Disc · Front tire: Tracer TLR All Terrain Gravel Tire 700x45, Tubeless Ready · Rear tire: Tracer TLR All Terrain Gravel Tire 700x45, Tubeless Ready
Controls and contact points
Archived: Handlebar: Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare · Stem: Future Stem, Comp · Seatpost: Alloy, 2-bolt Clamp, 12mm offset, 27.2mm, anti-corrosion hardware · Saddle: Body Geometry Power Sport, steel rails
Before and during the test ride
Follow the full used-bike inspection order →Interpretation based on the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Frameset
| Frame Construction | Specialized Diverge E5 Premium Aluminum, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout |
|---|---|
| Frame Material | Aluminum |
| Fork | Future Shock 3.1 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc |
| Fork Material | Carbon Fiber |
Drivetrain
| Shifters | Shimano CUES ST-U6030 |
|---|---|
| Rear Derailleur | Shimano CUES 11-speed w/ Shadow Plus |
| Crankset | Shimano CUES FC-U6040, 40t |
| Bottom Bracket | Shimano Threaded BSA BB |
| Cassette | Shimano, CS-LG400-11, CUES, 11-Speed, 11-50t |
| Chain | Shimano CN-LG500 |
Brakes
| Brakes | (F) Shimano CUES Hydraulic Brake / (R) Shimano CUES Hydraulic Brake |
|---|
Cockpit & Contact Points
| Handlebar | Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare |
|---|---|
| Stem | Future Stem, Comp |
| Saddle | Body Geometry Power Sport, steel rails |
| Seatpost | Alloy, 2-bolt Clamp, 12mm offset, 27.2mm, anti-corrosion hardware |
Wheels & Tires
| Wheels | (F) AXIS Elite Disc / (R) AXIS Elite Disc |
|---|---|
| Front Tire | Tracer TLR All Terrain Gravel Tire 700x45, Tubeless Ready |
| Rear Tire | Tracer TLR All Terrain Gravel Tire 700x45, Tubeless Ready |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Seat tube | 400 mm | 430 mm | 470 mm | 500 mm | 530 mm | 560 mm |
| Effective top tube | 521 mm | 537 mm | 556 mm | 575 mm | 593 mm | 613 mm |
| Head tube | 90 mm | 104 mm | 116 mm | 135 mm | 161 mm | 187 mm |
| Head-tube angle | 70° | 70.5° | 71° | 71° | 71° | 71° |
| Seat-tube angle | 74.5° | 74° | 74° | 74° | 74° | 74° |
| Chainstay / rear center | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1019 mm | 1031 mm | 1041 mm | 1060 mm | 1081 mm | 1102 mm |
| Bottom-bracket drop | 85 mm | 85 mm | 85 mm | 85 mm | 85 mm | 85 mm |
| Reach | 365 mm | 374 mm | 387 mm | 400 mm | 412 mm | 425 mm |
| Stack | 563 mm | 578 mm | 592 mm | 610 mm | 634 mm | 659 mm |
| Standover height | 700 mm | 725 mm | 754 mm | 779 mm | 805 mm | 832 mm |
| Fork offset / rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Front center | 604 mm | 613 mm | 626 mm | 645 mm | 665 mm | 686 mm |
| Trail | 72 mm | 68 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Fork length / axle-to-crown | 391 mm | 391 mm | 391 mm | 391 mm | 391 mm | 391 mm |
| Crank length | 170 mm | 170 mm | 172.5 mm | 172.5 mm | 175 mm | 175 mm |
| Stem length | 60 mm | 70 mm | 80 mm | 90 mm | 100 mm | 100 mm |
| Handlebar width | 380 mm | 400 mm | 420 mm | 420 mm | 440 mm | 440 mm |
Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry interpretation
What this geometry means
49 geometry
Riding position
The 563 mm stack is tall relative to the 365 mm reach, leaving room for a more upright, relaxed gravel position. A 74.5° seat angle puts the rider relatively forward over the bottom bracket, shortening the effective seated reach compared with a more relaxed seat angle.
Handling tendencies
A 70° head angle combined with a 1019 mm wheelbase points to calm and stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. A 85 mm bottom-bracket drop places the rider relatively low between the wheels, which can add a settled cornering feel while reducing pedal clearance compared with a higher bottom bracket.
Archive context
Its reach of 365 mm sits toward the shorter end. Its bottom-bracket drop of 85 mm sits toward the deeper-drop end. Its trail of 72 mm sits somewhat higher than typical.
52 geometry
Riding position
The 578 mm stack is tall relative to the 374 mm reach, leaving room for a more upright, relaxed gravel position.
Handling tendencies
A 70.5° head angle combined with a 1031 mm wheelbase points to moderate and balanced steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. A 85 mm bottom-bracket drop places the rider relatively low between the wheels, which can add a settled cornering feel while reducing pedal clearance compared with a higher bottom bracket.
Archive context
Its bottom-bracket drop of 85 mm sits toward the deeper-drop end. Its reach of 374 mm sits toward the shorter end. The seat angle of 74° sits somewhat steeper than typical.
54 geometry
Riding position
A 387 mm reach and 592 mm stack give this size a middle-ground gravel proportion: neither especially stretched and low nor unusually upright.
Handling tendencies
A 71° head angle combined with a 1041 mm wheelbase points to moderate and balanced steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. A 85 mm bottom-bracket drop places the rider relatively low between the wheels, which can add a settled cornering feel while reducing pedal clearance compared with a higher bottom bracket.
Archive context
Its bottom-bracket drop of 85 mm sits toward the deeper-drop end. Its trail of 65 mm sits toward the lower-trail end. Its stack of 592 mm sits somewhat taller than typical.
56 geometry
Riding position
A 400 mm reach and 610 mm stack give this size a middle-ground gravel proportion: neither especially stretched and low nor unusually upright.
Handling tendencies
A 71° head angle combined with a 1060 mm wheelbase points to moderate and balanced steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. A 85 mm bottom-bracket drop places the rider relatively low between the wheels, which can add a settled cornering feel while reducing pedal clearance compared with a higher bottom bracket.
Archive context
Its bottom-bracket drop of 85 mm sits toward the deeper-drop end. The seat angle of 74° sits somewhat steeper than typical. The head angle of 71° sits somewhat steeper than typical.
58 geometry
Riding position
A 412 mm reach and 634 mm stack give this size a middle-ground gravel proportion: neither especially stretched and low nor unusually upright.
Handling tendencies
A 71° head angle combined with a 1081 mm wheelbase points to moderate and balanced steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. A 85 mm bottom-bracket drop places the rider relatively low between the wheels, which can add a settled cornering feel while reducing pedal clearance compared with a higher bottom bracket.
Archive context
Its bottom-bracket drop of 85 mm sits toward the deeper-drop end. The seat angle of 74° sits toward the steeper end. Its reach of 412 mm sits somewhat longer than typical.
61 geometry
Riding position
The 659 mm stack is tall relative to the 425 mm reach, leaving room for a more upright, relaxed gravel position.
Handling tendencies
A 71° head angle combined with a 1102 mm wheelbase points to moderate and balanced steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. A 85 mm bottom-bracket drop places the rider relatively low between the wheels, which can add a settled cornering feel while reducing pedal clearance compared with a higher bottom bracket.
Archive context
Its stack of 659 mm sits toward the taller end. Its bottom-bracket drop of 85 mm sits toward the deeper-drop end. Its reach of 425 mm sits toward the longer end.
Across the size range
From 49 to 61, reach grows by 60 mm and stack by 96 mm, showing how the frame becomes both longer and taller through the published size range. The rear center stays essentially constant at about 430 mm across sizes, so most of the wheelbase growth happens in the front half of the bike rather than by lengthening the rear triangle.
Geometry describes frame proportions and likely tendencies, not a ride test. Rider proportions, cockpit setup, tires, suspension settings, wheel configuration, and component choices can materially change how a bicycle fits and feels.

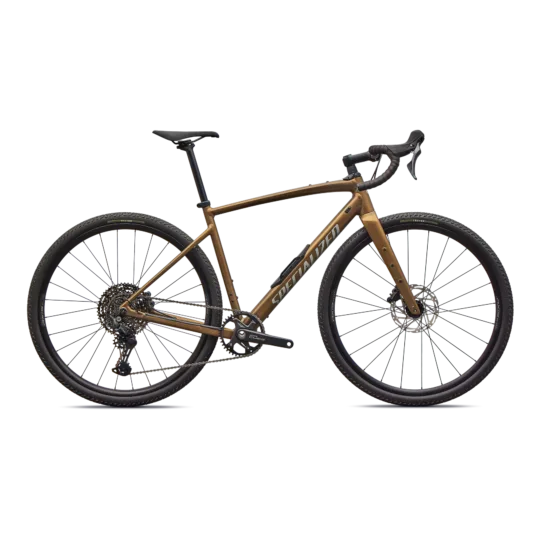

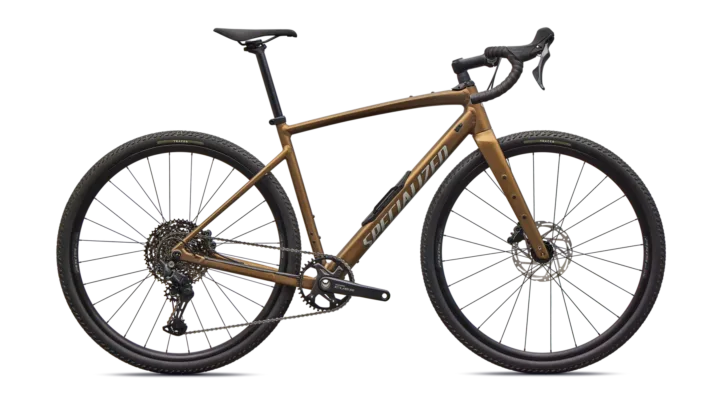

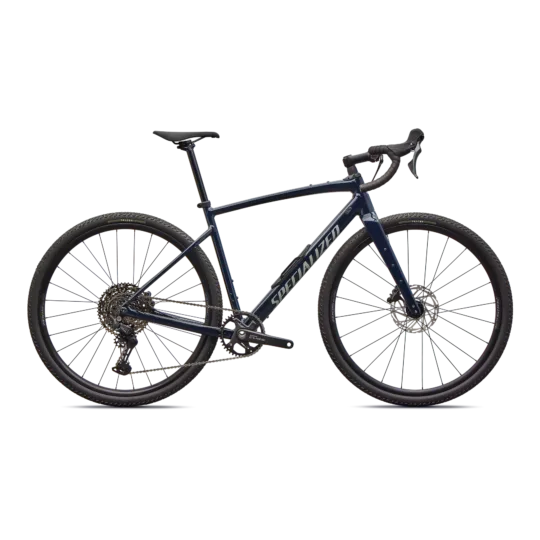

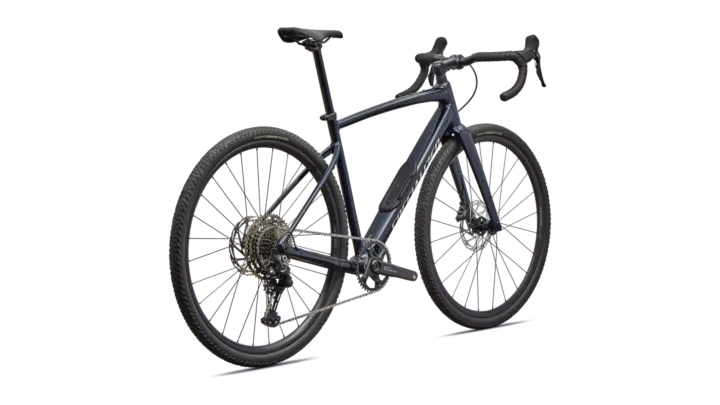

Gallery
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
