Velopedia Bicycle Archive

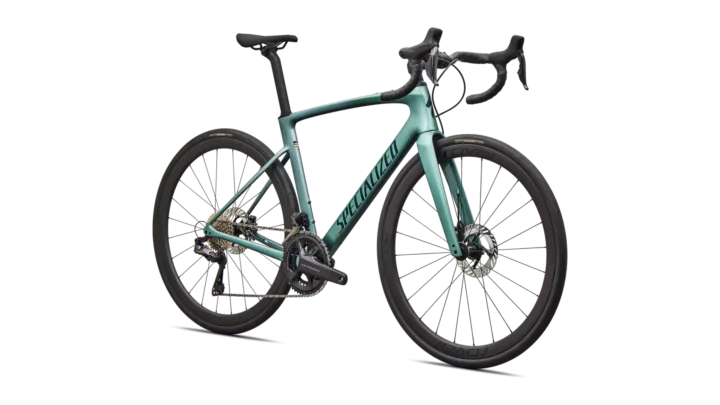

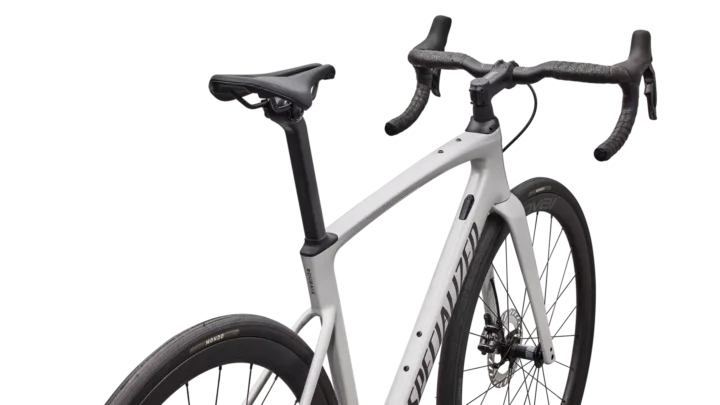

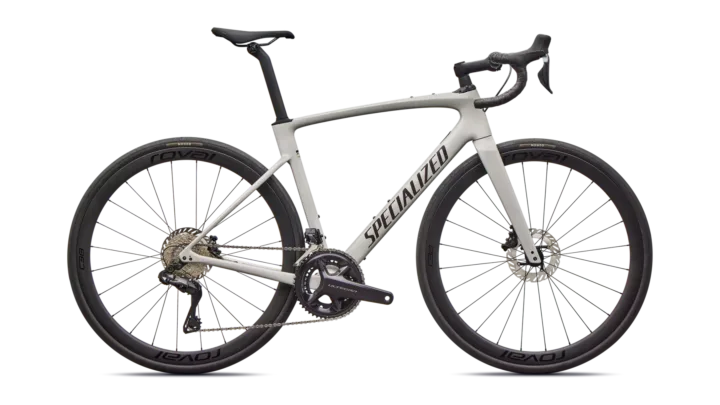

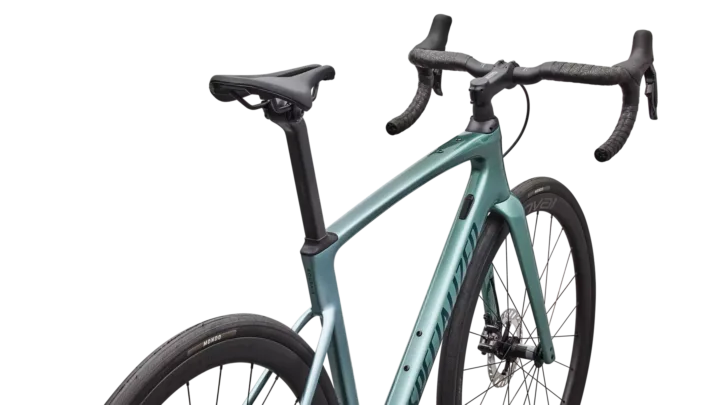

2026 Specialized Roubaix SL8 Expert
Original specifications: 8.17 kg (18 lb, 0.2 oz) published weight · geometry for 8 published sizes.
Planning to sell? Draft your listing
At a glance
Archive #900001035- Model year
- 2026
- Category
- Road
- Original MSRP
- $5,999.99
- Sizes
- 44, 49, 52, 54, 56, 58, 61, 64
- Colors
- Gloss Fjord Metallic, Dolomite Metallic
- Weight
- 8.17 kg (18 lb, 0.2 oz)
- Geometry
- 8 manufacturer sizes
- In this record
- 19 specifications · 8 archived images · original MSRP · geometry
Model history 2 other years
Browse other years
Compare side by side
Identification clues
2026 archived details
- Published colors
- Gloss Fjord Metallic, Dolomite Metallic
- Frame
- Carbon Fiber
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildCarbon Fiber
Frameset
| Frame Construction | FACT 10R, Rider First Engineered™ (RFE), FreeFoil Shape Library tubes, threaded BB, 12x142mm thru-axle, flat-mount disc |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | Future Shock 3.2 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc |
| Fork Material | Carbon Fiber |
Drivetrain
| Shifters | Shimano Ultegra Di2 R8170, hydraulic disc |
|---|---|
| Front Derailleur | Shimano Ultegra Di2 R8150, braze-on |
| Rear Derailleur | Shimano Ultegra R8150, 12-speed |
| Crankset | Shimano Ultegra R8100, 50/34t |
| Bottom Bracket | Shimano Threaded BSA BB |
| Cassette | Shimano Ultegra CS-R8100, 12-speed, 11-34t |
| Chain | Shimano XT CN-M8100, 12-speed |
Brakes
| Brakes | (F) Shimano Ultegra R8100, hydraulic brake / (R) Shimano Ultegra R8100, hydraulic brake |
|---|
Cockpit & Contact Points
| Handlebar | Specialized Hover Expert, Alloy, 125mm Drop, 75mm Reach w/Di2 Hole |
|---|---|
| Stem | Future Stem, Pro |
| Saddle | Body Geometry Power Expert |
| Seatpost | S-Works Pave |
Wheels & Tires
| Wheels | (F) Roval C38, 21mm internal width carbon rim / (R) Roval C38, 21mm internal width carbon rim, tubeless ready |
|---|---|
| Front Tire | Mondo TLR Endurance Tire, 700x32, GRIPTON T2/T5 |
| Rear Tire | Mondo TLR Endurance Tire, 700x32, GRIPTON T2/T5 |
No specifications match. Try a component name or clear your search.
Geometry
Frame measurements by size.
Frame diagram
Select an available measurement to locate it on the frame.
All geometry measurements8 sizes · 19 measurements
| Measurement | 44 | 49 | 52 | 54 | 56 | 58 | 61 | 64 |
|---|---|---|---|---|---|---|---|---|
| Seat tube | 365 mm | 410 mm | 446 mm | 465 mm | 485 mm | 505 mm | 545 mm | 581 mm |
| Effective top tube | 503 mm | 523 mm | 534 mm | 550 mm | 569 mm | 584 mm | 600 mm | 618 mm |
| Head tube | 90 mm | 90 mm | 105 mm | 122 mm | 140 mm | 168 mm | 202 mm | 222 mm |
| Head-tube angle | 69.3° | 70.8° | 71.5° | 72.3° | 73° | 73° | 73.5° | 73.5° |
| Seat-tube angle | 75° | 74° | 74° | 74° | 73.5° | 73.5° | 73.5° | 73° |
| Chainstay / rear center | 418 mm | 418 mm | 418 mm | 420 mm | 420 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 994 mm | 992 mm | 998 mm | 1005 mm | 1012 mm | 1031 mm | 1042 mm | 1054 mm |
| Bottom-bracket drop | 80 mm | 80 mm | 80 mm | 78 mm | 78 mm | 78 mm | 78 mm | 78 mm |
| Bottom-bracket height | 269 mm | 269 mm | 269 mm | 270 mm | 270 mm | 271 mm | 271 mm | 271 mm |
| Reach | 353 mm | 363 mm | 370 mm | 381 mm | 389 mm | 397 mm | 403 mm | 409 mm |
| Stack | 543 mm | 549 mm | 566 mm | 585 mm | 605 mm | 630 mm | 665 mm | 685 mm |
| Standover height | 686 mm | 719 mm | 747 mm | 766 mm | 787 mm | 809 mm | 847 mm | 865 mm |
| Fork offset / rake | 52 mm | 52 mm | 52 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Front center | 589 mm | 587 mm | 593 mm | 598 mm | 604 mm | 620 mm | 631 mm | 634 mm |
| Trail | 76 mm | 66 mm | 62 mm | 61 mm | 57 mm | 57 mm | 54 mm | 54 mm |
| Fork length / axle-to-crown | 375 mm | 375 mm | 375 mm | 375 mm | 375 mm | 375 mm | 375 mm | 375 mm |
| Crank length | 165 mm | 165 mm | 170 mm | 172.5 mm | 172.5 mm | 175 mm | 175 mm | 175 mm |
| Stem length | 70 mm | 80 mm | 90 mm | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm |
| Handlebar width | 360 mm | 380 mm | 400 mm | 420 mm | 420 mm | 440 mm | 440 mm | 440 mm |
Dimensions as recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
700x32, GRIPTON T2/T5
Before ordering: Check rim compatibility and tire clearance.
Pirelli P Zero Road Tire - Tubeless Ready Black, 700x32
700x32c
Replacement option
braze-on

Shimano Ultegra FD-R8150 Di2 Front Derailleur Grey, Braze-On
Model match
More parts (7)Fewer parts
12-speed, 11-34t
hydraulic brake / (R) Shimano Ultegra R8100, hydraulic brake
50/34t
hydraulic disc
Alloy, 125mm Drop, 75mm Reach w/Di2 Hole
Based on the original build. Check fit and installed parts before ordering.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- Mondo TLR Endurance Tire, 700x32, GRIPTON T2/T5
- Rear tire
- Mondo TLR Endurance Tire, 700x32, GRIPTON T2/T5
- Drivetrain
- 12-speed
- Bottom bracket / shell
- Shimano Threaded BSA BB
Equipment inspection checks 11 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: FACT 10R, Rider First Engineered™ (RFE), FreeFoil Shape Library tubes, threaded BB, 12x142mm thru-axle, flat-mount disc · Fork: Future Shock 3.2 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc · Carbon Fiber
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano Ultegra Di2 R8170, hydraulic disc · Front derailleur: Shimano Ultegra Di2 R8150, braze-on · Rear derailleur: Shimano Ultegra R8150, 12-speed · Crankset: Shimano Ultegra R8100, 50/34t · Bottom bracket: Shimano Threaded BSA BB · Cassette: Shimano Ultegra CS-R8100, 12-speed, 11-34t · Chain: Shimano XT CN-M8100, 12-speed
Brakes
Inspect the brakes →Archived: Brakes: (F) Shimano Ultegra R8100, hydraulic brake / (R) Shimano Ultegra R8100, hydraulic brake
Wheels and tires
Check wheels and tires →Archived: Wheels: (F) Roval C38, 21mm internal width carbon rim / (R) Roval C38, 21mm internal width carbon rim, tubeless ready · Front tire: Mondo TLR Endurance Tire, 700x32, GRIPTON T2/T5 · Rear tire: Mondo TLR Endurance Tire, 700x32, GRIPTON T2/T5
Controls and contact points
Archived: Handlebar: Specialized Hover Expert, Alloy, 125mm Drop, 75mm Reach w/Di2 Hole · Stem: Future Stem, Pro · Seatpost: S-Works Pave · Saddle: Body Geometry Power Expert
