Rear tire: 700C×45.
Velopedia Bicycle Archive

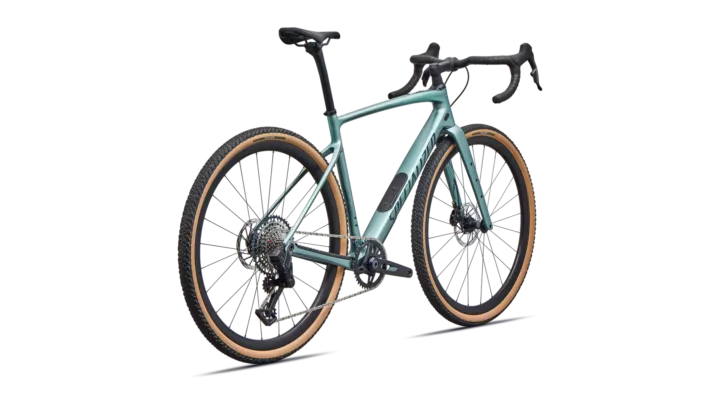

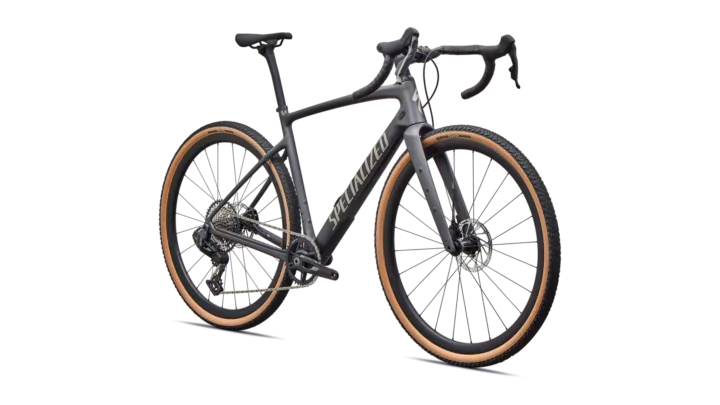

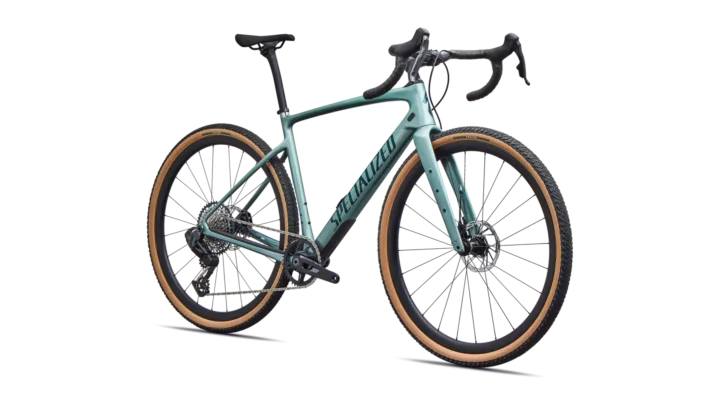

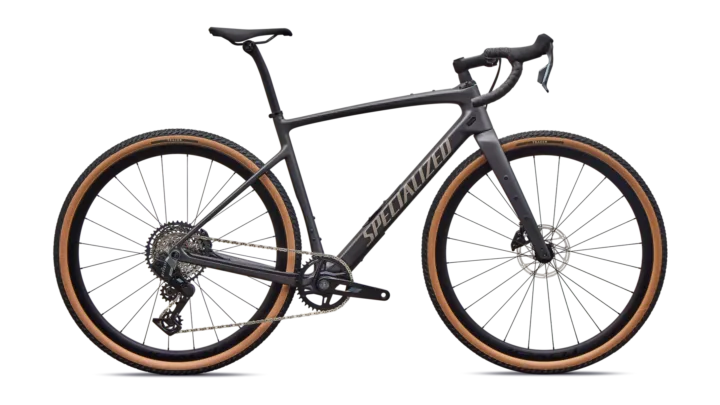

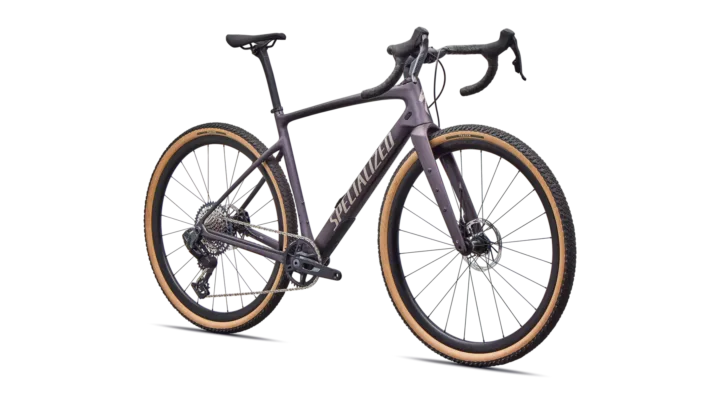

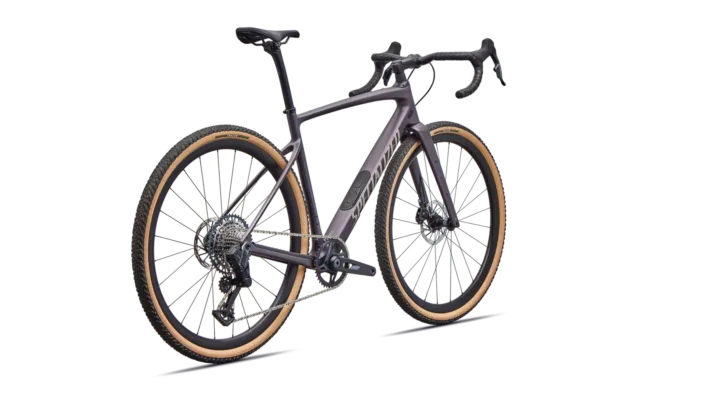

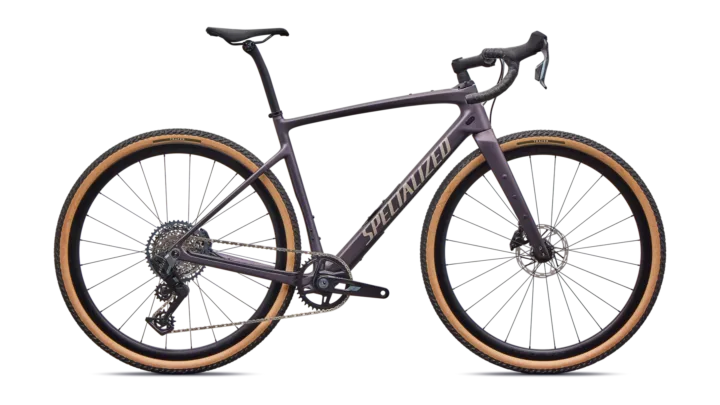

2026 Specialized Diverge 4 Expert
Original specifications: 8.9 kg (19 lb, 9.9 oz) published weight · geometry for 6 published sizes.
Planning to sell? Draft your listing
At a glance
Archive #900001075- Model year
- 2026
- Category
- Gravel & Cyclocross
- Original MSRP
- $5,999.99
- Sizes
- 49, 52, 54, 56, 58, 61
- Colors
- Fjord Metallic/Emerald Metallic, Nebula Metallic/Sandstone Metallic, Smoke/Sandstone Metallic
- Weight
- 8.9 kg (19 lb, 9.9 oz)
- Geometry
- 6 manufacturer sizes
- In this record
- 18 specifications · 8 archived images · original MSRP · geometry
Original buildCarbon Fiber
Frameset
| Frame Construction | Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | Future Shock 3.2 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc |
| Fork Material | Carbon Fiber |
Drivetrain
| Shifters | SRAM Rival AXS E1 |
|---|---|
| Rear Derailleur | SRAM Rival AXS E1 XPLR, 13-speed |
| Crankset | SRAM Rival E1 XPLR, DUB Wide, 40t |
| Bottom Bracket | SRAM DUB BSA 68 Wide |
| Cassette | SRAM Rival E1 XPLR 10-46t, 13sp |
| Chain | SRAM Rival E1 |
Brakes
| Brakes | (F) SRAM Rival E1, hydraulic disc / (R) SRAM Rival E1, hydraulic disc |
|---|
Cockpit & Contact Points
| Handlebar | Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare |
|---|---|
| Stem | Future Stem, Pro |
| Saddle | Body Geometry Power Expert |
| Seatpost | Roval Terra Carbon Seat Post, 20mm Offset |
Wheels & Tires
| Wheels | (F) Roval Terra C Rim, 25mm internal width, 32mm depth, 24h, Tubeless ready, DT for Roval 370 hub, Centerlock disc, DT Swiss Competition Race spokes / (R) Roval Terra C Rim, 25mm internal width, 32mm depth, 24h, Tubeless ready, DT for Roval 370 hub, Centerlock disc, DT Swiss Competition Race spokes |
|---|---|
| Front Tire | Tracer TLR All Terrain Gravel Tire 700x45, Tan Sidewall, Tubeless Ready |
| Rear Tire | Tracer TLR All Terrain Gravel Tire 700x45, Tan Sidewall, Tubeless Ready |
No specifications match. Try a component name or clear your search.
Geometry
Frame measurements by size.
Frame diagram
Select an available measurement to locate it on the frame.
All geometry measurements6 sizes · 18 measurements
| Measurement | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Seat tube | 400 mm | 430 mm | 470 mm | 500 mm | 530 mm | 560 mm |
| Effective top tube | 521 mm | 537 mm | 556 mm | 575 mm | 593 mm | 613 mm |
| Head tube | 90 mm | 104 mm | 116 mm | 135 mm | 161 mm | 187 mm |
| Head-tube angle | 70° | 70.5° | 71° | 71° | 71° | 71° |
| Seat-tube angle | 74.5° | 74° | 74° | 74° | 74° | 74° |
| Chainstay / rear center | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1019 mm | 1031 mm | 1041 mm | 1060 mm | 1081 mm | 1102 mm |
| Bottom-bracket drop | 85 mm | 85 mm | 85 mm | 85 mm | 85 mm | 85 mm |
| Reach | 365 mm | 374 mm | 387 mm | 400 mm | 412 mm | 425 mm |
| Stack | 563 mm | 578 mm | 592 mm | 610 mm | 634 mm | 659 mm |
| Standover height | 700 mm | 725 mm | 754 mm | 779 mm | 805 mm | 832 mm |
| Fork offset / rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Front center | 604 mm | 613 mm | 626 mm | 645 mm | 665 mm | 686 mm |
| Trail | 72 mm | 68 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Fork length / axle-to-crown | 391 mm | 391 mm | 391 mm | 391 mm | 391 mm | 391 mm |
| Crank length | 165 mm | 170 mm | 172.5 mm | 172.5 mm | 175 mm | 175 mm |
| Stem length | 60 mm | 70 mm | 80 mm | 90 mm | 100 mm | 100 mm |
| Handlebar width | 380 mm | 400 mm | 420 mm | 420 mm | 440 mm | 440 mm |
Dimensions as recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

SRAM DUB BSA Bottom Bracket Road Wide, 68mm
Replacement option
13sp
More parts (6)Fewer parts
Tan Sidewall, Tubeless Ready
Replacement search: 700cx45 bicycle tire Before ordering: Check rim type and tire clearance.DUB Wide, 40t
13-speed
103mm drop x 70mm reach x 12º flare
20mm Offset
Based on the original build. Check fit and installed parts before ordering.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- Tracer TLR All Terrain Gravel Tire 700x45, Tan Sidewall, Tubeless Ready
- Rear tire
- Tracer TLR All Terrain Gravel Tire 700x45, Tan Sidewall, Tubeless Ready
- Drivetrain
- 13-speed
- Bottom bracket / shell
- SRAM DUB BSA 68 Wide
Equipment inspection checks 11 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout · Fork: Future Shock 3.2 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc · Carbon Fiber
Drivetrain
Check drivetrain wear →Archived: Shifters: SRAM Rival AXS E1 · Rear derailleur: SRAM Rival AXS E1 XPLR, 13-speed · Crankset: SRAM Rival E1 XPLR, DUB Wide, 40t · Bottom bracket: SRAM DUB BSA 68 Wide · Cassette: SRAM Rival E1 XPLR 10-46t, 13sp · Chain: SRAM Rival E1
Brakes
Inspect the brakes →Archived: Brakes: (F) SRAM Rival E1, hydraulic disc / (R) SRAM Rival E1, hydraulic disc
Wheels and tires
Check wheels and tires →Archived: Front tire: Tracer TLR All Terrain Gravel Tire 700x45, Tan Sidewall, Tubeless Ready · Rear tire: Tracer TLR All Terrain Gravel Tire 700x45, Tan Sidewall, Tubeless Ready
Controls and contact points
Archived: Handlebar: Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare · Stem: Future Stem, Pro · Seatpost: Roval Terra Carbon Seat Post, 20mm Offset · Saddle: Body Geometry Power Expert
Have you owned this model?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Gallery8 images
No recent price sample is available for this bike. Check eBay for matching listings.
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
