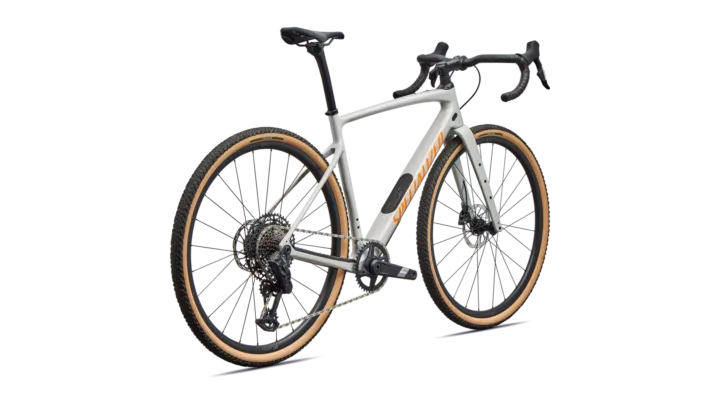

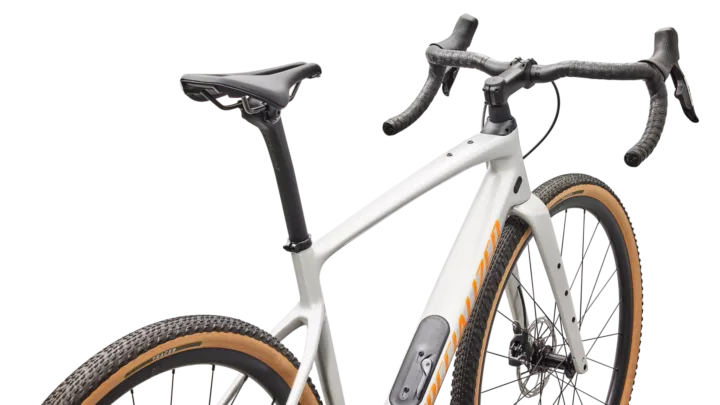

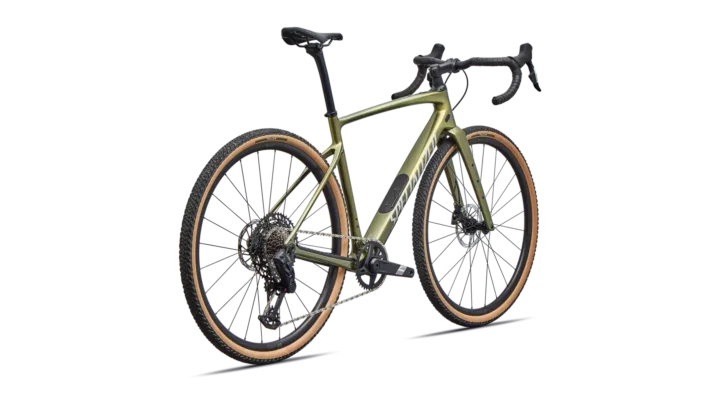

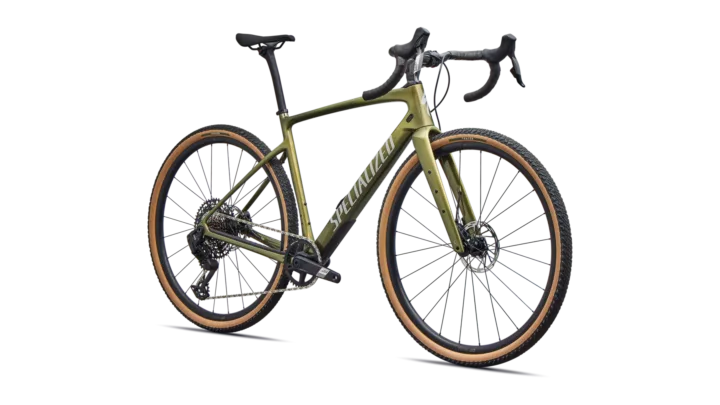

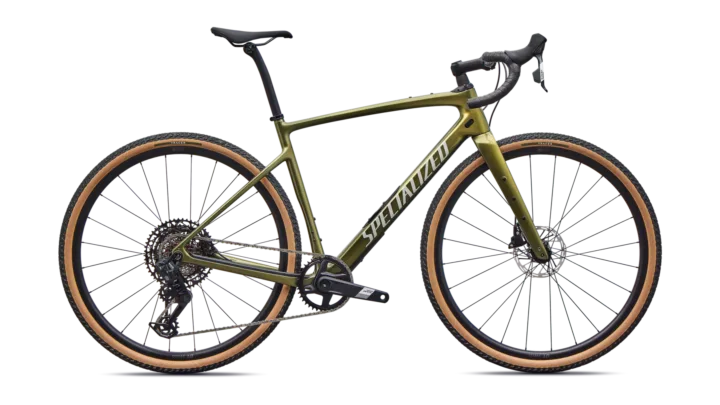

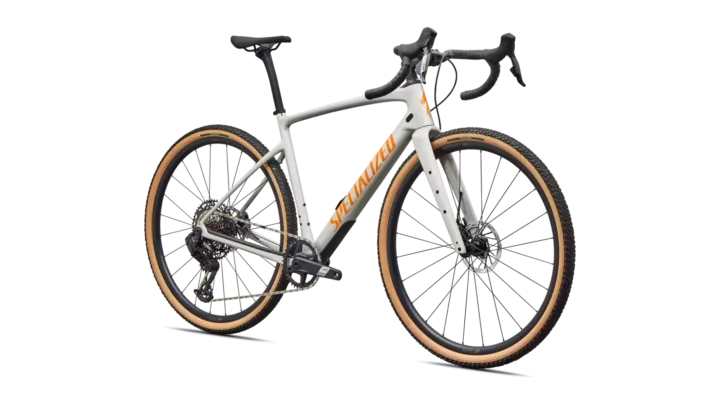

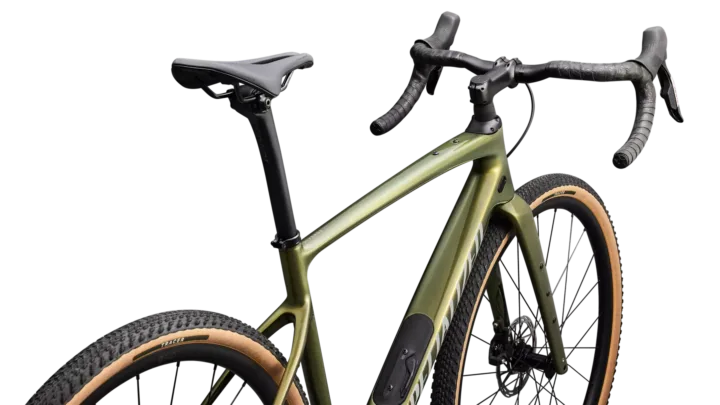

2026 Specialized Diverge 4 Comp Carbon

Original specifications: 9.7 kg (21 lb, 6.2 oz) published weight · geometry for 6 published sizes.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #900001072
Model year
2026
Category
Gravel & Cyclocross
Original MSRP
$4,199.99
Sizes
49, 52, 54, 56, 58, 61
Colors
Dolomite Metallic/Orange Zest, Laurel Green Metallic/Dolomite Metallic
Weight
9.7 kg (21 lb, 6.2 oz)
Geometry
6 manufacturer sizes
In this record
18 specifications · 8 archived images · original MSRP · geometry
Sponsored affiliate link
Original buildCarbon Fiber

Manufacturer catalog

Published sizes and colors

6 sizes · 2 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

495254565861

Published colors

Dolomite Metallic/Orange ZestLaurel Green Metallic/Dolomite Metallic

Frameset

Frame ConstructionSpecialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout
Frame MaterialCarbon Fiber
ForkFuture Shock 3.2 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc
Fork MaterialCarbon Fiber

Drivetrain

ShiftersSRAM Apex AXS
Rear DerailleurSRAM S1000 Eagle AXS
CranksetSRAM Apex DUB Wide, 40t
Bottom BracketSRAM DUB BSA 68 Wide
CassetteSRAM 12-speed,10-52t
ChainSRAM GX T-Type 12 speed

Brakes

Brakes(F) SRAM Apex, hydraulic disc / (R) SRAM Apex, hydraulic disc

Cockpit & Contact Points

HandlebarSpecialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare
StemFuture Stem, Comp
SaddleBody Geometry Power Sport, steel rails
SeatpostRoval Terra Carbon Seat Post, 20mm Offset

Wheels & Tires

Wheels(F) DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples / (R) DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
Front TireTracer TLR All Terrain Gravel Tire 700x45, Tan Sidewall, Tubeless Ready
Rear TireTracer TLR All Terrain Gravel Tire 700x45, Tan Sidewall, Tubeless Ready

Geometry

6 sizes · 18 measurements

Frame measurements by size.

All geometry measurements6 sizes · 18 measurements
Measurement495254565861
Seat tube400 mm430 mm470 mm500 mm530 mm560 mm
Effective top tube521 mm537 mm556 mm575 mm593 mm613 mm
Head tube90 mm104 mm116 mm135 mm161 mm187 mm
Head-tube angle70°70.5°71°71°71°71°
Seat-tube angle74.5°74°74°74°74°74°
Chainstay / rear center430 mm430 mm430 mm430 mm430 mm430 mm
Wheelbase1019 mm1031 mm1041 mm1060 mm1081 mm1102 mm
Bottom-bracket drop85 mm85 mm85 mm85 mm85 mm85 mm
Reach365 mm374 mm387 mm400 mm412 mm425 mm
Stack563 mm578 mm592 mm610 mm634 mm659 mm
Standover height700 mm725 mm754 mm779 mm805 mm832 mm
Fork offset / rake55 mm55 mm55 mm55 mm55 mm55 mm
Front center604 mm613 mm626 mm645 mm665 mm686 mm
Trail72 mm68 mm65 mm65 mm65 mm65 mm
Fork length / axle-to-crown391 mm391 mm391 mm391 mm391 mm391 mm
Crank length165 mm170 mm172.5 mm172.5 mm175 mm175 mm
Stem length60 mm70 mm80 mm90 mm100 mm100 mm
Handlebar width380 mm400 mm420 mm420 mm440 mm440 mm

Dimensions as recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes40T · 10–52T · 12-speed
Lowest0.77:1 Highest4.00:1 Total range520%
Estimated speed At 90 RPM Lowest gear5.8 mph Highest gear30.0 mph

Rear tire: 700C×45.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Chain · Original
SRAM GX T-Type 12 speed
Retailer offers
Cassette · Original
SRAM 12-speed

10-52t

Retailer offers
Other replacement options (1)
Front tire · Original
Tracer TLR All Terrain Gravel Tire 700x45

Tan Sidewall, Tubeless Ready

Replacement search: 700cx45 bicycle tire Before ordering: Check rim type and tire clearance.
More parts (6)Fewer parts
Bottom bracket · Original
SRAM DUB BSA 68 Wide Before ordering: Use the spacer setup for your crank.
Crankset · Original
SRAM Apex DUB Wide

40t

Rear derailleur · Original
SRAM S1000 Eagle AXS
Shifters · Original
SRAM Apex AXS
Handlebar · Original
Specialized Adventure Gear Hover

103mm drop x 70mm reach x 12º flare

Seatpost · Original
Roval Terra Carbon Seat Post

20mm Offset

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Tracer TLR All Terrain Gravel Tire 700x45, Tan Sidewall, Tubeless Ready
Rear tire
Tracer TLR All Terrain Gravel Tire 700x45, Tan Sidewall, Tubeless Ready
Drivetrain
12-speed
Bottom bracket / shell
SRAM DUB BSA 68 Wide
Equipment inspection checks 11 checks based on 5 archived component groups Open equipment checksClose equipment checks
0 of 11 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout · Fork: Future Shock 3.2 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc · Carbon Fiber

Archived: Shifters: SRAM Apex AXS · Rear derailleur: SRAM S1000 Eagle AXS · Crankset: SRAM Apex DUB Wide, 40t · Bottom bracket: SRAM DUB BSA 68 Wide · Cassette: SRAM 12-speed,10-52t · Chain: SRAM GX T-Type 12 speed

Archived: Brakes: (F) SRAM Apex, hydraulic disc / (R) SRAM Apex, hydraulic disc

Archived: Front tire: Tracer TLR All Terrain Gravel Tire 700x45, Tan Sidewall, Tubeless Ready · Rear tire: Tracer TLR All Terrain Gravel Tire 700x45, Tan Sidewall, Tubeless Ready

Controls and contact points

Archived: Handlebar: Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare · Stem: Future Stem, Comp · Seatpost: Roval Terra Carbon Seat Post, 20mm Offset · Saddle: Body Geometry Power Sport, steel rails
