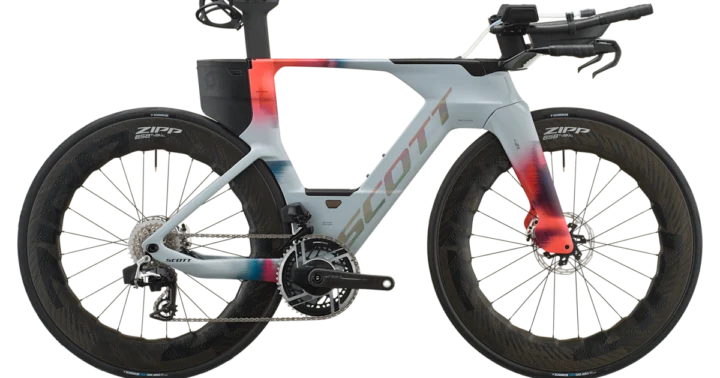

2027 Scott Plasma RC Ultimate

Archived: Frame: Plasma 6 HMX, Race Geometry, Plasma HMX seatpost, replaceable derailleur hanger · Fork: Plasma 6 HMX, 1 1/4"- 1 1/2" Carbon, Flatmount Disc · Carbon Fiber

• Inspect the frame in bright light, especially the head tube, bottom-bracket area, chainstays and clamped surfaces. Look for cracks, ripples, crushed sections or signs of impact.
• Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

Archived: Shifters: SRAM eTap AXS Wireless Blips · Front derailleur: SRAM RED AXS Electronic Shift System · Rear derailleur: SRAM RED AXS, 24 Speed, Electronic Shift System · Crankset: SRAM RED Powermeter Crankset, 50-37T · Bottom bracket: SRAM DUB PF ROAD 86.5 Ceramic Bearing · Cassette: SRAM RED XG1290 E1, 10-33 · Chain: SRAM RED

• Confirm every shift battery charges and every control operates. Shift through the full cassette under light load while checking pairing, derailleur alignment and response at both ends of the range.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Sram RED Aero; Rotors: (F) SRAM Paceline X CL, 160mm / (R) SRAM Paceline X CL, 140mm

• Inspect pads and braking surfaces, check the complete cable or hose path, and confirm both controls feel consistent and return cleanly.

Archived: Wheel size: 700c · Wheels: 858 NSW Carbon clincher Tubeless Disc brake — ZIPP 858 NSW Carbon Tubeless, 20 Front, 20 Rear, Syncros SL Axle, removable lever with tool · Front tire: Schwalbe PRO ONE Aero, TL-Easy, Fold, 700x28C · Rear tire: Schwalbe PRO ONE Aero, TL-Easy, Fold, 700x28C

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play. Inspect the carbon rims closely for impact marks, cracks, delamination or damage around spoke holes and bead hooks.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Confirm whether the bike is actually set up tubeless, whether both tires hold pressure, and when sealant and rim tape were last serviced.

Archived: Headset: Syncros Integrated, 1 1/4"- 1 1/2" drop-in headset · Handlebar: Syncros Creston iC TRI, 400mm, Syncros E1 carbon extension · Seatpost: Syncros Plasma 6 HMX with Ritchey WCS clamp, adjustable head · Saddle: Syncros Belcarra TRI 1.0

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure. Look particularly closely for crushing, scoring or cracks at carbon handlebar clamp areas.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.
