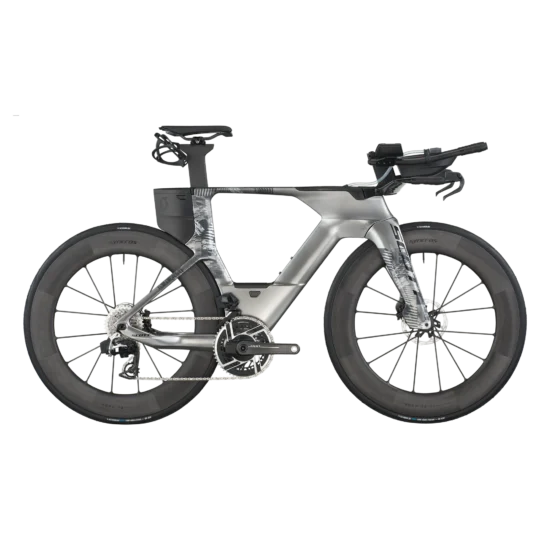

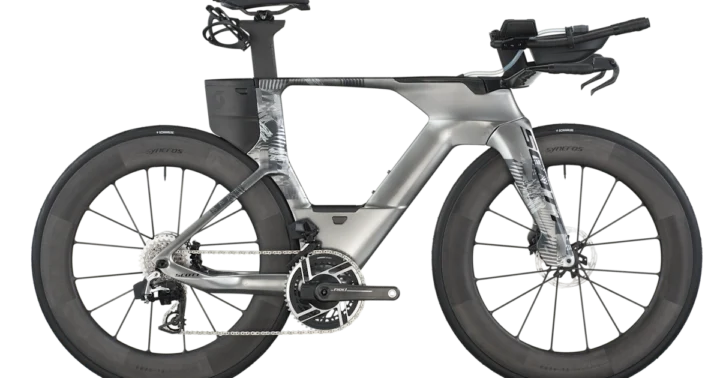

2026 Scott Plasma RC Ultimate
Original manufacturer specifications including 700c wheels, 9.3 kg published weight, geometry for 5 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2026
- Category
- Road
- Original MSRP
- $14,999.99
- Sizes
- XS, S, M, L, XL
- Weight
- 9.3 kg
- Geometry
- 5 manufacturer sizes · Geometry context
- Record coverage
- 21 preserved details · 2 archived images · original MSRP · preserved geometry
- Archive ID
- 900001917
Model history 1 other year
Frameset
| Frame Construction | Plasma 6 HMX TRI Geometry, Plasma HMX seatpost, Replaceable Derailleur Hanger |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | Plasma 6 HMX 1 1/4"- 1 1/2" Carbon Flatmount Disc |
| Fork Material | Carbon Fiber |
Drivetrain
| Shifters | SRAM eTap AXS Wireless Blips |
|---|---|
| Front Derailleur | SRAM RED AXS Electronic Shift System |
| Rear Derailleur | SRAM RED AXS 24 Speed Electronic Shift System |
| Crankset | SRAM RED AXS Power Meter 50/37 T |
| Bottom Bracket | SRAM DUB PF Road 86.5 |
| Cassette | SRAM RED XG 1290 E1 10-33 Brake Levers SRAM S-900 Aero HRD |
| Chain | SRAM RED |
Brakes
| Brakes | SRAM S900 HRD flat mount; Rotors: SRAM PACELINE X rotor 160/F and 160/R |
|---|
Cockpit & Contact Points
| Headset | Syncros Integrated 1 1/4"- 1 1/2" drop-in headset |
|---|---|
| Handlebar | Syncros Creston iC TRI, 400mm, Syncros E1 Carbon extension |
| Saddle | Syncros Belcarra 1.0 TRI |
| Seatpost | Syncros Plasma 6 HMX with Ritchey WCS clamp adjustable head |
Wheels & Tires
| Wheels | Syncros Capital SL Aero 80mm, Syncros SL Axle, Removable Lever with Tool |
|---|---|
| Front Tire | Schwalbe PRO ONE Aero, TL-Easy, Fold,700x28C Schwalbe Aerothan Tube |
| Rear Tire | Schwalbe PRO ONE Aero, TL-Easy, Fold,700x28C Schwalbe Aerothan Tube |
| Wheel Size | 700c |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XS/49 | S/52 | M/54 | L/56 | XL/58 |
|---|---|---|---|---|---|
| Seat tube | 503 mm | 503 mm | 552.4 mm | 572.3 mm | 587.5 mm |
| Effective top tube | 509.3 mm | 529.3 mm | 555.8 mm | 582.9 mm | 609.5 mm |
| Head tube | 71.5 mm | 71.5 mm | 87 mm | 108 mm | 124 mm |
| Head-tube angle | 72.5° | 72.5° | 72.5° | 72.5° | 72.5° |
| Seat-tube angle | 75.2° | 75.2° | 75.2° | 75.2° | 75.2° |
| Chainstay / rear center | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 962 mm | 982 mm | 1011.7 mm | 1043 mm | 1072.8 mm |
| Bottom-bracket drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Bottom-bracket height | 261 mm | 261 mm | 261 mm | 261 mm | 261 mm |
| Reach | 372.5 mm | 392.5 mm | 417.5 mm | 442.5 mm | 467.5 mm |
| Stack | 520 mm | 520 mm | 535 mm | 555 mm | 570 mm |
| Standover height | 746 mm | 746 mm | 795.8 mm | 815.8 mm | 831.1 mm |
Geometry source: SCOTT first-party numeric geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
XS/49 geometry
Archive context: The head angle of 72.5° sits toward the steeper end. Its wheelbase of 962 mm sits toward the shorter end. The seat angle of 75.2° sits toward the steeper end.
Compared with 64 distinct road geometries in the XS-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XS/49 geometry S/52 geometry
Archive context: Its reach of 392.5 mm sits toward the longer end. The seat angle of 75.2° sits toward the steeper end. The head angle of 72.5° sits toward the steeper end.
Compared with 88 distinct road geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S/52 geometry M/54 geometry
Archive context: Its reach of 417.5 mm sits toward the longer end. The seat angle of 75.2° sits toward the steeper end. Its stack of 535 mm sits toward the lower end.
Compared with 88 distinct road geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M/54 geometry L/56 geometry
Archive context: Its reach of 442.5 mm sits toward the longer end. The seat angle of 75.2° sits toward the steeper end. Its bottom-bracket drop of 75 mm sits toward the deeper-drop end.
Compared with 77 distinct road geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L/56 geometry XL/58 geometry
Archive context: Its reach of 467.5 mm sits toward the longer end. The seat angle of 75.2° sits toward the steeper end. Its stack of 570 mm sits toward the lower end.
Compared with 63 distinct road geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL/58 geometry Parts & serviceability
Find replacement parts
Schwalbe PRO ONE Aero, TL-Easy, Fold,700x28C Schwalbe Aerothan Tube
Named tire and published size
SRAM DUB PF Road 86.5
Named archived component — verify dimensions
Syncros Belcarra 1.0 TRI
Named archived component — verify exact version
More qualified parts (5)
SRAM RED AXS Power Meter 50/37 T
Component family — verify exact version
SRAM RED AXS Electronic Shift System
Component family — verify exact version
SRAM RED AXS 24 Speed Electronic Shift System
Component family — verify exact version
Syncros Creston iC TRI, 400mm, Syncros E1 Carbon extension
Named archived component — verify dimensions
Syncros Capital SL Aero 80mm, Syncros SL Axle, Removable Lever with Tool
Named archived component — verify dimensions
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- DrivetrainConfirm every shift-system battery charges, every shift control works and the derailleur moves cleanly across the cassette. Make sure the matching shift-system charger is included, then measure chain wear and inspect the cassette teeth.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 19 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Scott Plasma RC Ultimate · Road · Published sizes: XS, S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Plasma 6 HMX TRI Geometry, Plasma HMX seatpost, Replaceable Derailleur Hanger · Fork: Plasma 6 HMX 1 1/4"- 1 1/2" Carbon Flatmount Disc · Carbon Fiber
Drivetrain
Check drivetrain wear →Archived: Shifters: SRAM eTap AXS Wireless Blips · Front derailleur: SRAM RED AXS Electronic Shift System · Rear derailleur: SRAM RED AXS 24 Speed Electronic Shift System · Crankset: SRAM RED AXS Power Meter 50/37 T · Bottom bracket: SRAM DUB PF ROAD 86.5 · Cassette: SRAM RED XG 1290 E1 10-33 Brake Levers SRAM S-900 Aero HRD · Chain: SRAM RED
Brakes
Inspect the brakes →Archived: Brakes: SRAM S900 HRD flat mount; Rotors: SRAM PACELINE X rotor 160/F and 160/R
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c · Wheels: Syncros Capital SL Aero 80mm, Syncros SL Axle, Removable Lever with Tool · Front tire: Schwalbe PRO ONE Aero, TL-Easy, Fold,700x28C Schwalbe Aerothan Tube · Rear tire: Schwalbe PRO ONE Aero, TL-Easy, Fold,700x28C Schwalbe Aerothan Tube
Controls and contact points
Archived: Headset: Syncros Integrated 1 1/4"- 1 1/2" drop-in headset · Handlebar: Syncros Creston iC TRI, 400mm, Syncros E1 Carbon extension · Seatpost: Syncros Plasma 6 HMX with Ritchey WCS clamp adjustable head · Saddle: Syncros Belcarra 1.0 TRI
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
