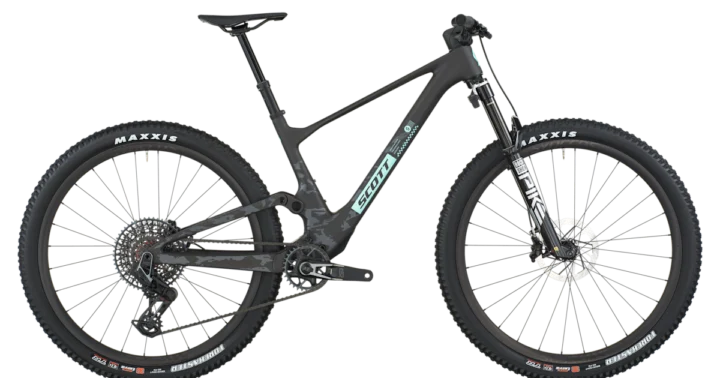

2026 Scott Spark 900 EVO

Archived: Frame: Spark Carbon HMF Integrated Suspension Technology Flex Pivot, Adjustable head angle Syncros Cable Integration System BB92, UDH Interface, 12x148mm with 55mm Chainline · Fork: RockShox Pike Ultimate Flight Attendant Electronically controlled Suspension, FA Charger 3.1 damper 3 Modes 15x110mm Maxle Stealth, 44mm offset /Tapered steerer Lockout, Reb. Adj., 140mm travel

• Inspect the frame in bright light, especially the head tube, bottom-bracket area, chainstays and clamped surfaces. Look for cracks, ripples, crushed sections or signs of impact.

Archived: Fork: RockShox Pike Ultimate Flight Attendant Electronically controlled Suspension, FA Charger 3.1 damper 3 Modes 15x110mm Maxle Stealth, 44mm offset /Tapered steerer Lockout, Reb. Adj., 140mm travel · Rear shock: RockShox SIDLuxe Ultimate Flight Attendant Custom Electronically controlled Suspension 3 Modes Lockout-Pedal-Descend Solo Air, Reb. Adj./ Lockout Bearing Hardware, Travel 120mm, T165X45mm

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
• Inspect the shock shaft and seals, cycle the rear suspension through its travel and check for oil, air loss, binding or unusual top-out and bottom-out noises.
• Hold the rear brake and load the suspension from several directions. Check pivots, bearings and mounting hardware for knock, looseness or side play.
• Ask for dated fork, shock and pivot-service records. A clean exterior does not establish the condition of internal seals, oil, bushings or bearings.

Archived: Shifters: SRAM AXS Rocker Pod Controller · Rear derailleur: SRAM X0 Eagle AXS Transmission 12 Speed Wireless Electronic Shift System · Crankset: SRAM X0 Eagle Transmission Spindle Power Meter, DUB, 55mm CL, 32T · Bottom bracket: SRAM DUB PF 92 MTB Wide, shell 41x92mm · Cassette: SRAM X0 Eagle XS 1295 Transmission 10-52 · Chain: SRAM CN X0 Eagle Transmission

• Confirm every shift battery charges and every control operates. Shift through the full cassette under light load while checking pairing, derailleur alignment and response at both ends of the range.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: SRAM Motive Silver 4-Piston Disc; Rotors: SRAM HS2 CL Rotors, F&R 180mm

• Inspect pads, rotors, calipers and the complete cable or hose path. Both levers should feel consistent and both calipers should release without persistent rubbing.

Archived: Wheel size: 29 · Wheels: Syncros Silverton 1.0-30 CL F: 15x110mm, R: 12x148mm 30mm Tubeless ready Carbon rim 28H Syncros Hubs, XD Driver Syncros SL Axle w/Removable Lever with 6mm Allen, T30 and T25 Tools · Front tire: Maxxis Forekaster, 29x2.4", 60TPI Foldable Tubeless Ready, EXO 3C maxx Terra · Rear tire: Maxxis Forekaster, 29x2.4", 60TPI Foldable Tubeless Ready, EXO 3C maxx Terra

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play. Inspect the carbon rims closely for impact marks, cracks, delamination or damage around spoke holes and bead hooks.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Confirm whether the bike is actually set up tubeless, whether both tires hold pressure, and when sealant and rim tape were last serviced.

Archived: Headset: Syncros - Acros Angle adjust & Cable Routing HS System Stainless, +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB · Handlebar: Syncros Fraser iC SL DC Carbon, 0° rise, back sweep 8°, mini Rise, 760mm Syncros Performance XC lock-on grips · Seatpost: Syncros Duncan Dropper 1.5S, Travel Adjust, 31.6mm S size 110mm, M size 140mm, L size 160mm, XL size 180mm · Saddle: Syncros Tofino 1.5 Regular Titanium rails

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure. Look particularly closely for crushing, scoring or cracks at carbon handlebar clamp areas.
• Cycle the dropper post repeatedly. It should reach full travel, remain extended under load and have no unusual oil, excessive rotational play or damaged remote, cable, hose or battery.
