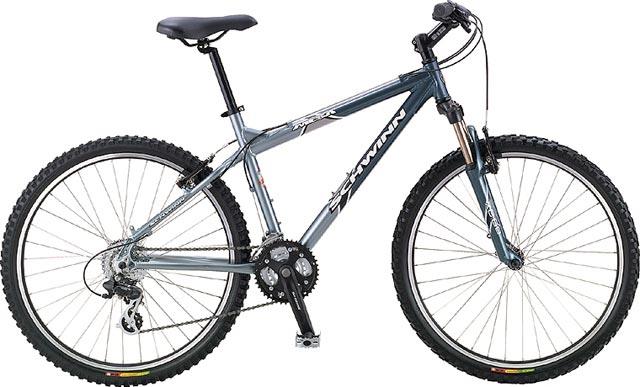

2004 Schwinn Mesa
Mountain bike, front suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $299.99
- Sizes
- 15", 17", 19", 21"
- Colors
- Silver/Charcoal
- Archive ID
- 31291
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 6061 T6 aluminum, butted |
| Fork | SR Suntour XC60, 75mm travel |
| Fork Material | Single |
| Rear Shock | N/A |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano EF-29 |
| Front Derailleur | Shimano C050 |
| Rear Derailleur | Shimano Altus |
| Crankset | Suntour XCC-150, 24/34/42 teeth |
| Bottom Bracket | VP semi-cartridge |
| Rear Cogs | 8-speed, 11 - 32 teeth |
| Chain | KMC Z72, 1/2 x 3/32" |
| Pedals | Resin body, steel cage |
Brakes
| Brakes | Radius linear-pull brakes, Shimano ST-EF29 levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Ritchey |
|---|---|
| Handlebar | Aluminum, rise, butted |
| Handlebar Extensions | Not included |
| Stem | Schwinn Ride Tuned |
| Saddle | Schwinn Anatomic |
| Seatpost | Aluminum micro-adjust |
Wheels & Tires
| Hubs | Formula aluminum, Q/R |
|---|---|
| Rims | Alex, 36-hole |
| Spokes | Stainless steel, 14ga. (2.0mm) straight gauge |
| Spoke Nipples | Brass nipples |
| Front Tire | 26 x 2.10" WTB VelociRaptor |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
