Velopedia Bicycle Archive

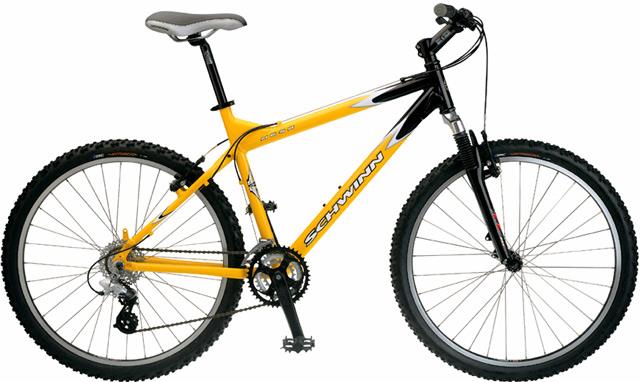

2002 Schwinn Mesa
Mountain bike, front suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $379.99
- Sizes
- 15", 17", 19", 21"
- Colors
- Yellow/Black
- Archive ID
- 38299
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 7005 aluminum w/replaceable derailleur hanger |
| Fork | RST Capa-TL, 2.5" travel |
| Fork Material | Aluminum, single triple-clamp crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano EF-28-8 |
| Front Derailleur | Shimano Acera |
| Rear Derailleur | Shimano Acera |
| Crankset | TruVativ X-Forge, 24/32/42 teeth |
| Rear Cogs | 8-speed, 11 - 30 teeth |
| Chain | 1/2 x 3/32" |
| Pedals | Steel cage, resin body |
Brakes
| Brakes | Tektro linear-pull brakes, Tektro aluminum levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" Tien Hsin |
|---|---|
| Handlebar | Schwinn Mesa |
| Handlebar Extensions | Not included |
| Stem | Schwinn Ride Tuned |
| Saddle | Schwinn MTB Comfort Padded |
| Seatpost | Aluminum micro-adjust |
Wheels & Tires
| Hubs | Formula aluminum, Q/R |
|---|---|
| Rims | Aluminum, 32-hole |
| Spokes | Stainless steel, 14ga. (2.0mm) straight gauge |
| Front Tire | 26 x 2.10" IRC Mythos XC |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
