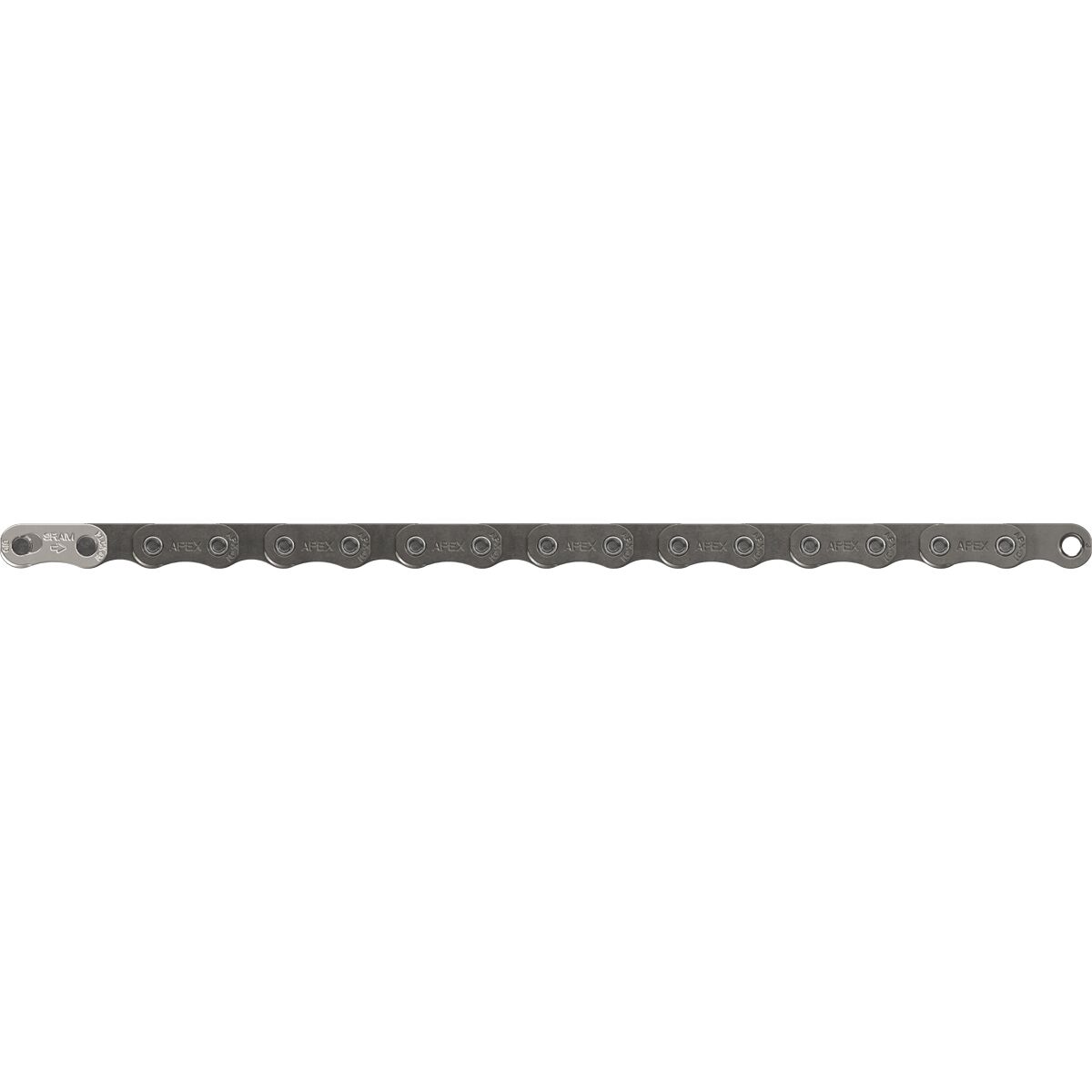

SRAM Apex Flat top 12-Speed Chain Silver, 114 links
114 links
Velopedia Bicycle Archive
Original specifications: 29" wheels · 49.5 lb for Medium published weight · geometry for 5 published sizes.
Selling this bike? Create a shareable bike record
At a glance
| Frame Construction | Aluminum |
|---|---|
| Frame Material | Aluminum |
| Fork | RockShox 35 Gold, 120mm |
| Shifters | SRAM Apex Eagle |
|---|---|
| Rear Derailleur | SRAM Apex Eagle |
| Crankset | FSA CK-762/IS |
| Cassette | SRAM PG1210, 11–50t, 12-speed |
| Chain | SRAM Apex |
| Brakes | Brake Calipers: SRAM Apex Eagle; Brake Levers: SRAM Apex Eagle; Rotors: SRAM Centerline, Center Lock (203mm front, 180mm rear) |
|---|
| Headset | Acros IS52/IS52 |
|---|---|
| Handlebar | Salsa Cowchipper |
| Stem | Easton EA50 |
| Saddle | WTB Volt Medium Steel |
| Seatpost | TranzX YSP18DL dropper, 100mm travel |
| Hubs | (F) Novatec D791SB-B15-CL / (R) Novatec D982TSB-CL-B12-11S |
|---|---|
| Rims | WTB ST 27mm |
| Spokes | 2.0, Black |
| Front Tire | Teravail Ehline 29 x 2.3", Durable casing |
| Rear Tire | Teravail Ehline 29 x 2.3", Durable casing |
| Wheel Size | 29" |
Frame measurements by size.
Published frame view
Select an available measurement to locate it on the frame.
| Measurement | X-Small | Small | Medium | Large | X-Large |
|---|---|---|---|---|---|
| Seat tube | 380 mm | 405 mm | 460 mm | 500 mm | 520 mm |
| Effective top tube | 535 mm | 560 mm | 585 mm | 610 mm | 635 mm |
| Head tube | 100 mm | 100 mm | 125 mm | 145 mm | 165 mm |
| Head-tube angle | 67° | 67° | 67° | 67° | 67° |
| Seat-tube angle | 75° | 75° | 75° | 75° | 75° |
| Chainstay / rear center | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1094 mm | 1119 mm | 1148 mm | 1176 mm | 1204 mm |
| Bottom-bracket drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Bottom-bracket height | 303.5 mm | 303.5 mm | 303.5 mm | 303.5 mm | 303.5 mm |
| Reach | 373.7 mm | 398.7 mm | 417.6 mm | 437.6 mm | 457.7 mm |
| Stack | 601.8 mm | 601.8 mm | 624.8 mm | 643.2 mm | 661.7 mm |
| Standover height | 725.4 mm | 737.6 mm | 776.6 mm | 808.8 mm | 814.6 mm |
| Fork offset / rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Fork length / axle-to-crown | 498.4 mm | 498.4 mm | 498.4 mm | 498.4 mm | 498.4 mm |
| Crank length | 165 mm | 165 mm | 170 mm | 170 mm | 170 mm |
| Stem length | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
Measurements may vary by configuration, wheel size, or frame setting where noted in the published chart.
Parts & serviceability

114 links

29x2.3
Replacement option · verify fit

Medium

52t Max
Based on the original build. Confirm the model, size and fit before ordering; installed parts may differ. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases.
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.

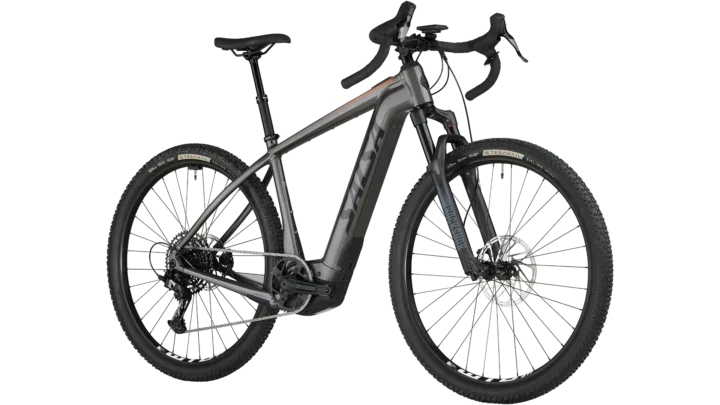

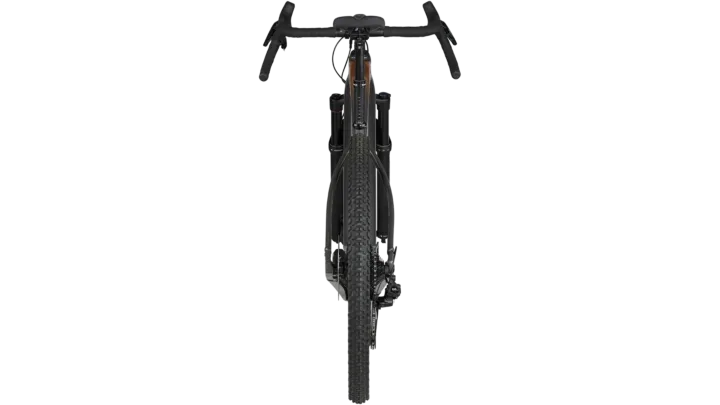

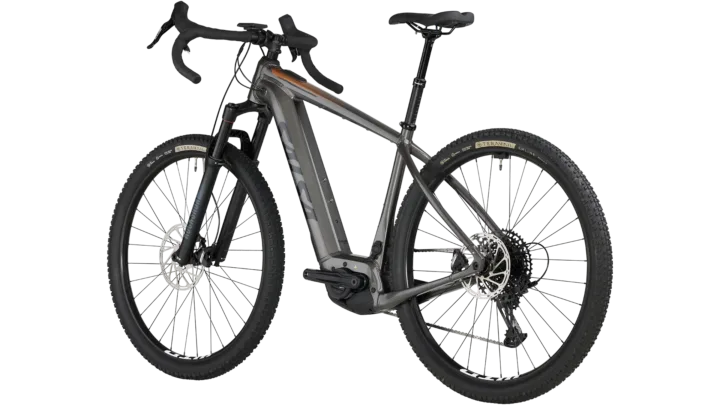

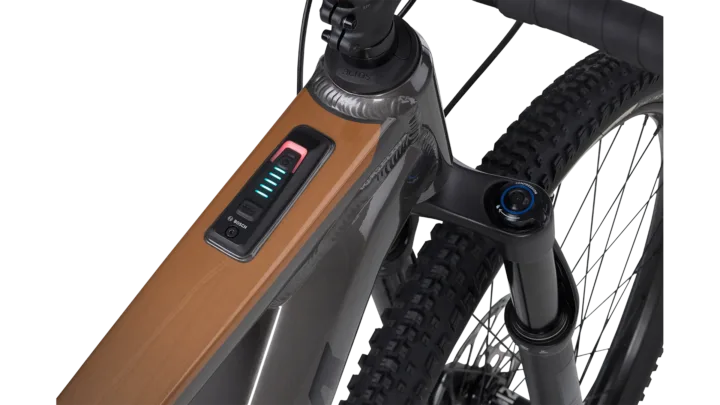

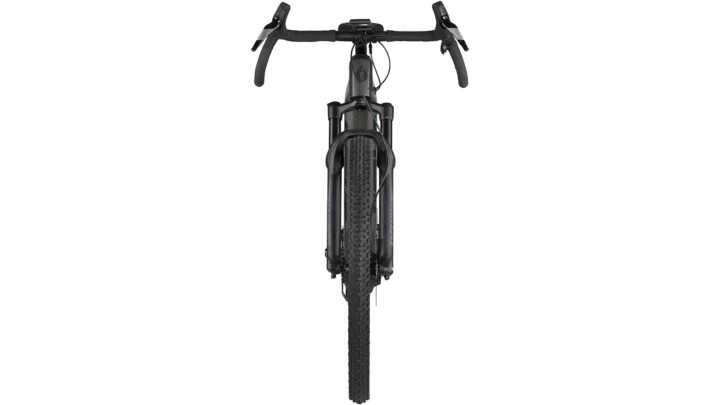

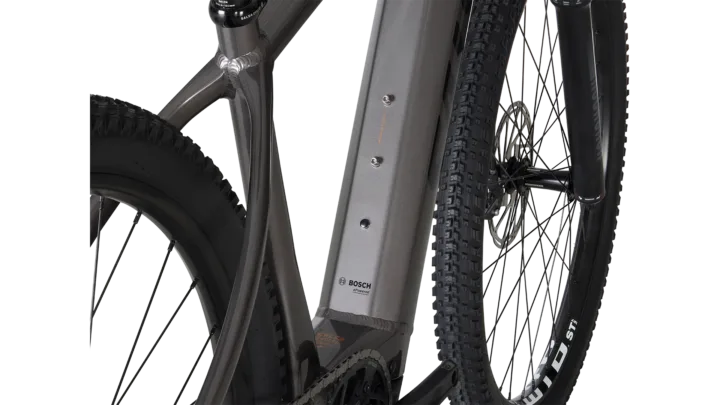

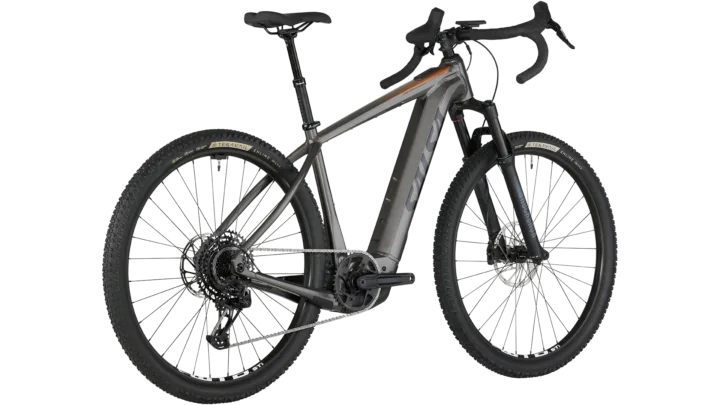

Archived: 2024 Salsa Tributary SUS Apex Eagle · Electric-assist · Published sizes: XS, S, M, L, XL
Archived: Frame: Aluminum · Fork: RockShox 35 Gold, 120mm
Archived: Fork: RockShox 35 Gold, 120mm
Archived: Shifters: SRAM Apex Eagle · Rear derailleur: SRAM Apex Eagle · Crankset: FSA CK-762/IS · Cassette: SRAM PG1210, 11–50t, 12-speed · Chain: SRAM Apex
Archived: Brakes: Brake Calipers: SRAM Apex Eagle; Brake Levers: SRAM Apex Eagle; Rotors: SRAM Centerline, Center Lock (203mm front, 180mm rear)
Archived: Wheel size: 29" · Rims: WTB ST 27mm · Hubs: (F) Novatec D791SB-B15-CL / (R) Novatec D982TSB-CL-B12-11S · Front tire: Teravail Ehline 29 x 2.3", Durable casing · Rear tire: Teravail Ehline 29 x 2.3", Durable casing
Archived: Headset: Acros IS52/IS52 · Handlebar: Salsa Cowchipper · Stem: Easton EA50 · Seatpost: TranzX YSP18DL dropper, 100mm travel · Saddle: WTB Volt Medium Steel
Archived: Salsa Tributary SUS Apex Eagle · electric-assist identification
