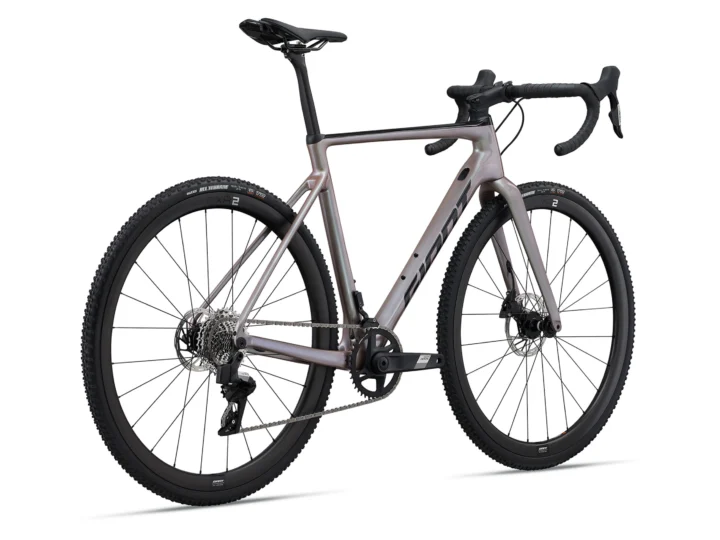

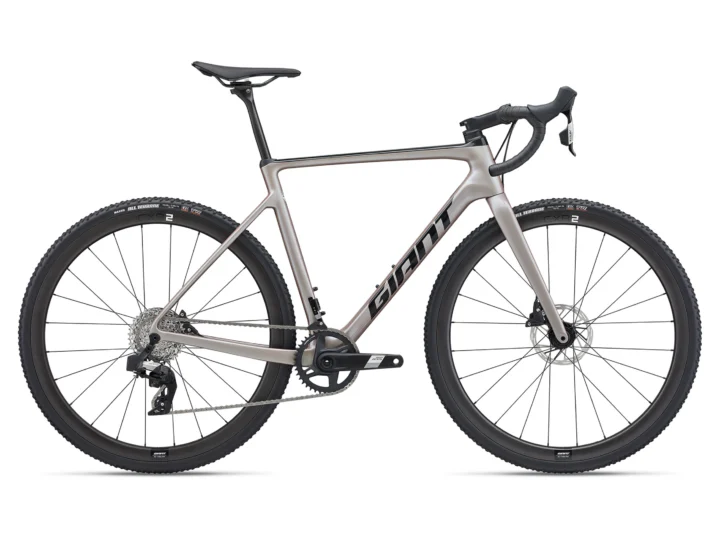

2024 Giant TCX Advanced Pro 1
Original manufacturer specifications including 7.93kg (17lbs 08oz) - Size (ML) published weight, geometry for 5 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2024
- Category
- Gravel & Cyclocross
- Original MSRP
- $4,500.00
- Sizes
- XS, S, M, M/L, L, XL
- Colors
- Shell White
- Weight
- 7.93kg (17lbs 08oz) - Size (ML)
- Geometry
- 5 manufacturer sizes · Geometry context
- Record coverage
- 24 preserved details · 2 archived images · original MSRP · preserved geometry
- Archive ID
- 900001279
Model history 3 other years
Frameset
| Frame Construction | Advanced-grade composite, 12mm thru-axle, disc |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | Advanced-grade composite, full-composite OverDrive 2 steerer, disc |
| Fork Material | Carbon Fiber |
| Rear Shock | N/A |
Drivetrain
| Shifters | Sram Apex AXS 1X12 |
|---|---|
| Front Derailleur | N/A |
| Rear Derailleur | Sram Apex AXS 1X12 |
| Crankset | SRAM Apex 1 Wide, DUB 1X 40T XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
| Bottom Bracket | SRAM DUB, press fit |
| Cassette | SRAM Rival, 12-speed, 10x36 |
| Chain | SRAM Apex D1, 12-speed, CN-APX-D1 |
| Pedals | N/A |
Brakes
| Brakes | Sram Apex AXS 1X12 HRD, SRAM PaceLine rotors [F]160mm, [R]140mm |
|---|
Cockpit & Contact Points
| Handlebar | Giant Contact SL XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm |
|---|---|
| Stem | Giant Contact SL XS:70mm, S:80mm, M:90mm, M/L:100mm, L:100mm, XL:110mm |
| Saddle | Giant Approach SL |
| Seatpost | Giant D-Fuse SLR, composite, -5/+15mm offset |
Wheels & Tires
| Hubs | [F] Giant alloy, CenterLock, 12mm thru-axle, [R] Giant alloy, 3-pawl 36t driver, CenterLock, 12mm thru-axle |
|---|---|
| Rims | Giant CXR 2 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm |
| Spokes | Sapim Sprint |
| Front Tire | Maxxis All-Terrene, 700x33c, tubeless |
| Rear Tire | Maxxis All-Terrene, 700x33c, tubeless |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | S | M | ML | L | XL |
|---|---|---|---|---|---|
| Seat tube | 505 mm | 525 mm | 545 mm | 555 mm | 565 mm |
| Top tube | 530 mm | 545 mm | 560 mm | 575 mm | 590 mm |
| Head tube | 133 mm | 148 mm | 163 mm | 178 mm | 193 mm |
| Head-tube angle | 71° | 71.5° | 72° | 72.5° | 72.5° |
| Seat-tube angle | 73.5° | 73° | 73° | 73° | 73° |
| Chainstay / rear center | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1014 mm | 1020 mm | 1030 mm | 1040 mm | 1055 mm |
| Bottom-bracket drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Reach | 370 mm | 375 mm | 385 mm | 395 mm | 406 mm |
| Stack | 540 mm | 556 mm | 572 mm | 589 mm | 603 mm |
| Standover height | 788 mm | 807 mm | 826 mm | 832 mm | 845 mm |
| Fork offset / rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 68.3 mm | 65.1 mm | 61.8 mm | 58.6 mm | 58.6 mm |
| Crank length | 170 mm | 172.5 mm | 172.5 mm | 175 mm | 175 mm |
| Stem length | 80 mm | 90 mm | 100 mm | 100 mm | 110 mm |
| Handlebar width | 400 mm | 420 mm | 420 mm | 440 mm | 440 mm |
| Wheel size | 700C | 700C | 700C | 700C | 700C |
Geometry source: Giant first-party size geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
S geometry
Archive context: Its bottom-bracket drop of 60 mm sits toward the shallower-drop end. The seat angle of 73.5° sits toward the more relaxed end. Its stack of 540 mm sits somewhat lower than typical.
Compared with 93 distinct cyclocross/gravel geometries in the Small-equivalent size cohort from model years 2022–2026 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S geometry M geometry
Archive context: Its bottom-bracket drop of 60 mm sits toward the shallower-drop end. Its stack of 556 mm sits toward the lower end. The seat angle of 73° sits toward the more relaxed end.
Compared with 102 distinct cyclocross/gravel geometries in the Medium-equivalent size cohort from model years 2022–2026 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M geometry ML geometry
Archive context: Its bottom-bracket drop of 60 mm sits toward the shallower-drop end. The head angle of 72° sits toward the steeper end. Its trail of 61.8 mm sits toward the lower-trail end.
Compared with 102 distinct cyclocross/gravel geometries in the Medium-equivalent size cohort from model years 2022–2026 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze ML geometry L geometry
Archive context: Its bottom-bracket drop of 60 mm sits toward the shallower-drop end. The head angle of 72.5° sits toward the steeper end. Its trail of 58.6 mm sits toward the lower-trail end.
Compared with 75 distinct cyclocross/gravel geometries in the Large-equivalent size cohort from model years 2022–2026 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L geometry XL geometry
Archive context: Its bottom-bracket drop of 60 mm sits toward the shallower-drop end. The head angle of 72.5° sits toward the steeper end. Its trail of 58.6 mm sits toward the lower-trail end.
Compared with 79 distinct cyclocross/gravel geometries in the XL-equivalent size cohort from model years 2022–2026 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL geometry Parts & serviceability
Find replacement parts
SRAM Apex D1, 12-speed, CN-APX-D1
Interpreted as SRAM Apex · 12-speed Exact archived model
SRAM Rival, 12-speed, 10x36
Interpreted as SRAM Rival · 12-speed Component family — verify exact version
Maxxis All-Terrene, 700x33c, tubeless
Named tire and published size
More qualified parts (3)
SRAM DUB, press fit
Named archived component — verify dimensions
Sram Apex AXS 1X12
Interpreted as SRAM Apex · 12-speed · electronic Component family — verify exact version
Sram Apex AXS 1X12
Interpreted as SRAM Apex · 12-speed · electronic Component family — verify exact version
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- DrivetrainConfirm every shift-system battery charges, every shift control works and the derailleur moves cleanly across the cassette. Make sure the matching shift-system charger is included, then measure chain wear and inspect the cassette teeth.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads. If it is set up tubeless, confirm both tires hold pressure and ask when the sealant was last refreshed.Check wheels and tires →
- Bottom bracketTurn the cranks slowly, feel for rough bearings and check for side-to-side play. Creaking under load deserves investigation but does not identify the source by itself.Inspect the bottom bracket and shell →
Bike-specific inspection checklist 20 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2024 Giant TCX Advanced Pro 1 · Cyclocross/Gravel · Published sizes: XS, S, M, M/L, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Advanced-grade composite, 12mm thru-axle, disc · Fork: Advanced-grade composite, full-composite OverDrive 2 steerer, disc · Carbon Fiber
Drivetrain
Check drivetrain wear →Archived: Shifters: Sram Apex AXS 1X12 · Rear derailleur: Sram Apex AXS 1X12 · Crankset: SRAM Apex 1 Wide, DUB 1X 40T XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm · Bottom bracket: SRAM DUB, press fit · Cassette: SRAM Rival, 12-speed, 10x36 · Chain: SRAM Apex D1, 12-speed, CN-APX-D1
Brakes
Inspect the brakes →Archived: Brakes: Sram Apex AXS 1X12 HRD, SRAM PaceLine rotors [F]160mm, [R]140mm
Wheels and tires
Check wheels and tires →Archived: Rims: Giant CXR 2 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm · Hubs: [F] Giant alloy, CenterLock, 12mm thru-axle, [R] Giant alloy, 3-pawl 36t driver, CenterLock, 12mm thru-axle · Front tire: Maxxis All-Terrene, 700x33c, tubeless · Rear tire: Maxxis All-Terrene, 700x33c, tubeless
Controls and contact points
Archived: Handlebar: Giant Contact SL XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm · Stem: Giant Contact SL XS:70mm, S:80mm, M:90mm, M/L:100mm, L:100mm, XL:110mm · Seatpost: Giant D-Fuse SLR, composite, -5/+15mm offset · Saddle: Giant Approach SL
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
