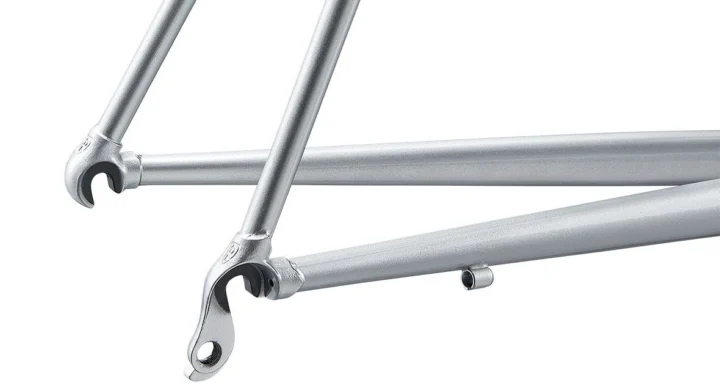

Ritchey Break-Away Road Logic frameset
Original manufacturer specifications including 700C wheels, Frame weight: 1,950g (size L); Fork weight: 380g (uncut steerer) published weight, geometry for 4 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- Not published by manufacturer
- Category
- Road
- Original MSRP
- $2,529.00
- Sizes
- S, M, L, XL
- Colors
- Tule fog
- Weight
- Frame weight: 1,950g (size L); Fork weight: 380g (uncut steerer)
- Geometry
- 4 manufacturer sizes
- Record coverage
- 8 preserved details · 8 archived images · original MSRP · preserved geometry
- Archive ID
- 900000822
Frameset
| Frame Construction | heat-treated, triple-butted Ritchey Logic steel tubing - TIG welded |
|---|---|
| Frame Material | Steel |
| Fork | Ritchey WCS Carbon Road Fork included |
| Fork Material | Carbon Fiber |
Drivetrain
| Bottom Bracket | 68mm - English threaded |
|---|
Cockpit & Contact Points
| Headset | WCS headset included (upper IS42/28.6 - 16mm stack height | lower IS42/30) |
|---|
Wheels & Tires
| Wheel Size | 700C |
|---|
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Seat tube | 495 mm | 520 mm | 545 mm | 570 mm |
| Effective top tube | 536 mm | 550 mm | 565 mm | 582 mm |
| Top tube | 526 mm | 540 mm | 555 mm | 573 mm |
| Head tube | 130 mm | 150 mm | 170 mm | 190 mm |
| Head-tube angle | 72.5° | 73° | 73.5° | 73.5° |
| Seat-tube angle | 74° | 73.5° | 73.5° | 73° |
| Chainstay / rear center | 410 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 980 mm | 991 mm | 998 mm | 1010 mm |
| Bottom-bracket drop | 72 mm | 70 mm | 70 mm | 70 mm |
| Reach | 381 mm | 385 mm | 394 mm | 400 mm |
| Stack | 537 mm | 556 mm | 578 mm | 597 mm |
| Standover height | 763 mm | 786 mm | 809 mm | 831 mm |
| Fork offset / rake | 46 mm | 46 mm | 43 mm | 43 mm |
| Fork length / axle-to-crown | 371 mm | 371 mm | 371 mm | 371 mm |
Geometry source: Ritchey embedded first-party geometry matrix ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Used-frameset inspection
If you’re buying this frameset used
Before buying: confirm the serial number and exact model, inspect frame and fork alignment, and inventory every included axle, hanger, clamp, headset part, cable guide and proprietary fitting.
Inspect the frame and fork →- FrameCheck paint chips, vent holes and the inside of the seat tube for corrosion. Also look for dents, bent tubes and cracking around welded or brazed joints.Inspect the frame and fork →
- Bottom bracket shellInspect the bottom-bracket shell for damaged threads, corrosion, ovalization, cracks or signs of an improvised repair. Confirm the archived shell standard and width before buying components.Inspect the bottom bracket and shell →
- Included hardwareInventory every axle, hanger, clamp, headset part, cable guide, frame plug and proprietary fitting included with the frameset. Confirm replacement availability before treating a missing small part as insignificant.
Used-frameset inspection checklist 14 universal checks for a record with limited component data Open checklistClose checklist
The archived record does not contain enough component detail for a fully specification-informed frameset checklist. Use these universal checks on the frameset in front of you, inventory every included part and confirm exact interfaces before choosing components.
Identity and fit
Follow the full used-bike inspection order →Archived: Ritchey Break-Away Road Logic frameset · Road · Published sizes: S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: heat-treated, triple-butted Ritchey Logic steel tubing - TIG welded · Fork: Ritchey WCS Carbon Road Fork included · Carbon Fiber
Alignment
Inspect the frame and fork →Frame interfaces
Inspect the bottom bracket and shell →Before accepting the frameset
Inspect the frame and fork →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
