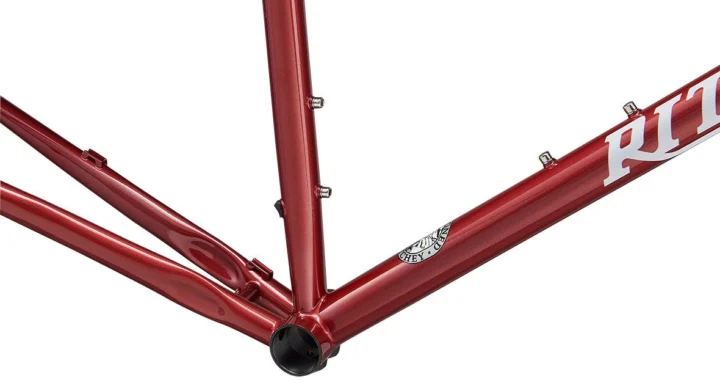

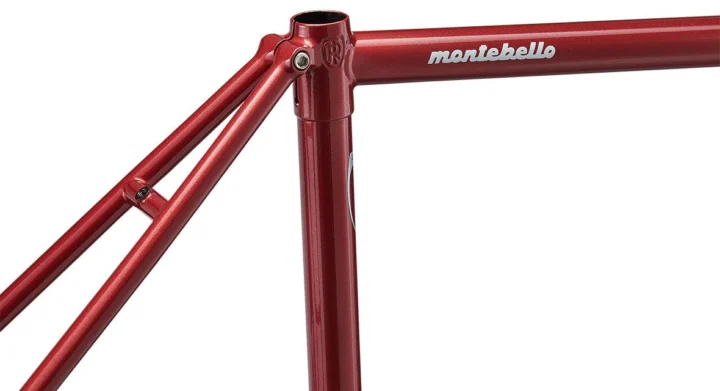

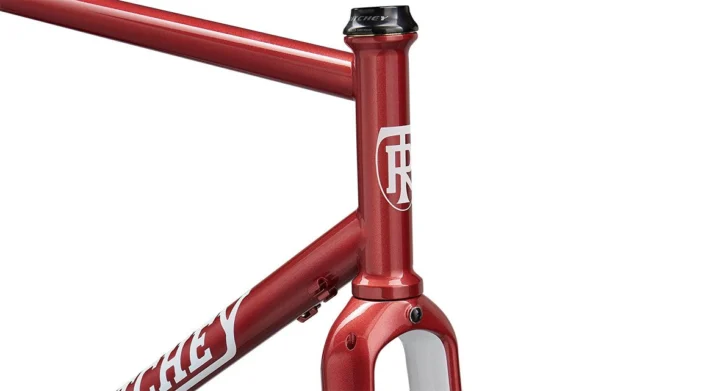

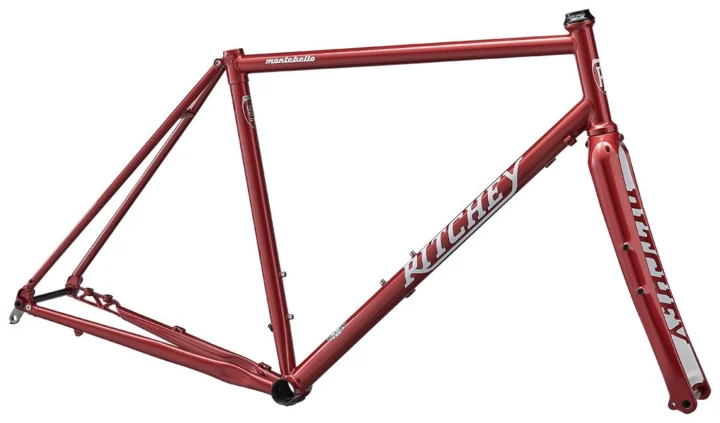

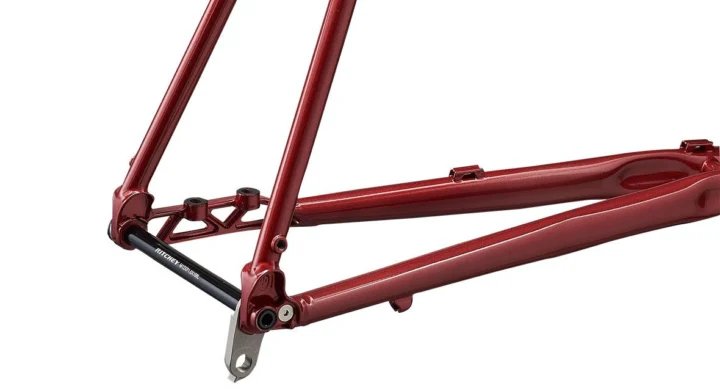

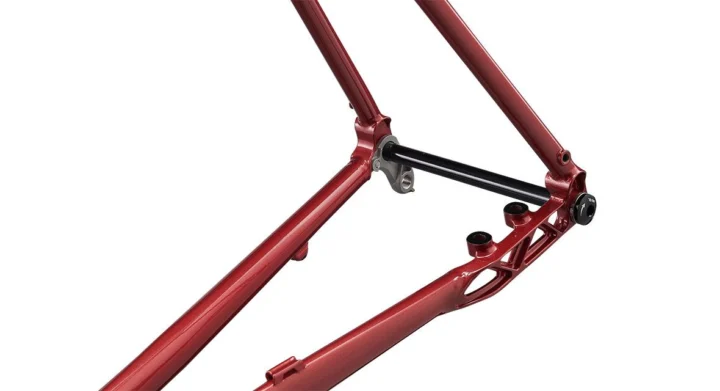

Ritchey Montebello Frameset

Road bicycle from the Velopedia specification archive.

Model year: Not published by manufacturer
Original MSRP: $1,869.00
Sizes: XS; S; M; L; XL; XXL
Colors: Hot Sauce
Weight: Frame weight: 2,000g (size M - w/o thru-axle); Fork weight: 415g (with uncut steerer / not including axle)
Geometry: 6 manufacturer sizes
Archive ID: 900000535
Catalog verified: August 13, 2026

Current market

Checking current listings…

Frameset

Frame Construction	heat-treated, triple-butted Ritchey Logic steel tubing - TIG welded
Frame Material	Steel
Fork	WCS Carbon Brevet Fork Included
Fork Material	Carbon Fiber

Drivetrain

Bottom Bracket	68mm - English threaded

Brakes

Brakes	Flat-mount brakes front and rear: 140mm (160mm max - adaptors available separately); Frame flat-mount bracket height: 10mm

Cockpit & Contact Points

Headset	WCS headset included (upper IS42/28.6 - 16mm stack height \| lower IS42/30)

Wheels & Tires

Wheel Size	700C

Size-specific frame data

Geometry

6 sizes · 14 measurements

Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.

Measurement	XS	S	M	L	XL	XXL
Seat tube	465 mm	490 mm	515 mm	540 mm	570 mm	600 mm
Effective top tube	528 mm	544 mm	560 mm	575 mm	587 mm	602 mm
Top tube	514 mm	528 mm	543 mm	558 mm	571 mm	587 mm
Head tube	120 mm	140 mm	160 mm	180 mm	200 mm	220 mm
Head-tube angle	71°	71.5°	72°	72°	72.5°	72.5°
Seat-tube angle	75°	74.5°	74°	73.5°	73.5°	73.5°
Chainstay / rear center	429 mm	429 mm	429 mm	429 mm	429 mm	429 mm
Wheelbase	1015 mm	1022 mm	1029 mm	1039 mm	1047 mm	1062 mm
Bottom-bracket drop	80 mm	80 mm	80 mm	78 mm	78 mm	78 mm
Reach	380 mm	385 mm	390 mm	394 mm	400 mm	409 mm
Stack	551 mm	572 mm	593 mm	610 mm	631 mm	650 mm
Standover height	756 mm	778 mm	800 mm	822 mm	847 mm	871 mm
Fork offset / rake	48 mm	48 mm	48 mm	48 mm	48 mm	48 mm
Fork length / axle-to-crown	388 mm	388 mm	388 mm	388 mm	388 mm	388 mm

Geometry source: Ritchey embedded first-party geometry matrix ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
