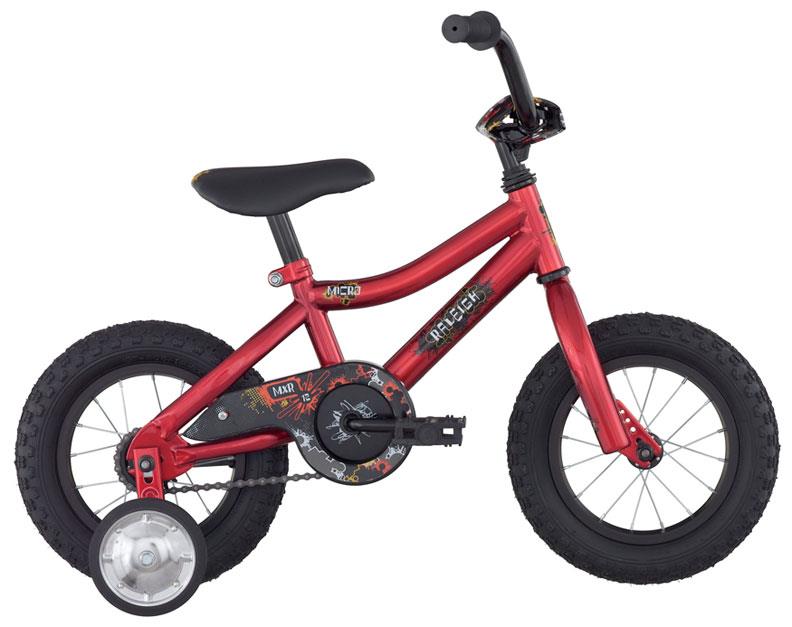

2011 Raleigh MXR MICRO
Juvenile bicycle from the Velopedia specification archive.
- Original MSRP
- $0.00
- Sizes
- 12'' boys
- Colors
- Red orange
- Archive ID
- 23339
Current market
Checking current listings…Frameset
| Frame Construction | Steel |
|---|
| Frame Material | Action Curve BMX HiTen Steel |
|---|
| Fork | BMX Style |
|---|
| Fork Material | Hi Ten |
|---|
| Rear Shock | N/A |
|---|
Drivetrain
| Component Group | Juvenile Mix |
|---|
| Crankset | Steel, 28 teeth |
|---|
| Bottom Bracket | 9pc Loose Ball |
|---|
| Cassette | Cog |
|---|
| Rear Cogs | 1-speed, 18 teeth |
|---|
| Pedals | Jr Resin platform |
|---|
Cockpit & Contact Points
| Headset | 1" Threadless |
|---|
| Handlebar | Steel BMX Style |
|---|
| Handlebar Extensions | Not included |
|---|
| Stem | Steel 2-bolt quill |
|---|
| Saddle | Jr. BMX padded |
|---|
| Seatpost | Steel pillar, 25.4mm diameter |
|---|
Wheels & Tires
| Rims | Alloy, 16-hole |
|---|
| Spokes | 14ga. (2.0mm) |
|---|
| Front Tire | 12 x 2.125" Comp III style |
|---|
| Wheel Size | 12" wheels |
|---|
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
